TAG Heuer Connected - How to identify each of the 4 generations

Albert-AMG

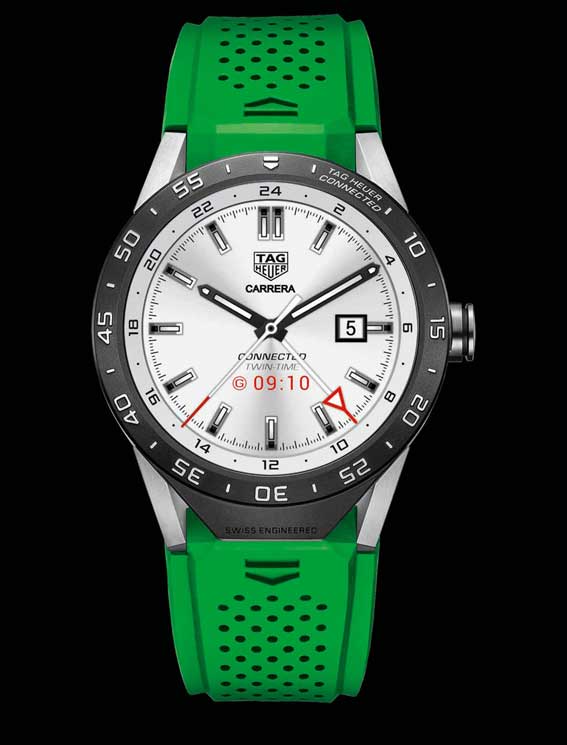

1st Generation (46mm)
From 2015 to 2017
TAG Heuer Connected Calibre E1
(SAR8A)

Info:
https://tagheuerforums.com/threads/...t-watch-update-and-2016-new-model-news.29014/

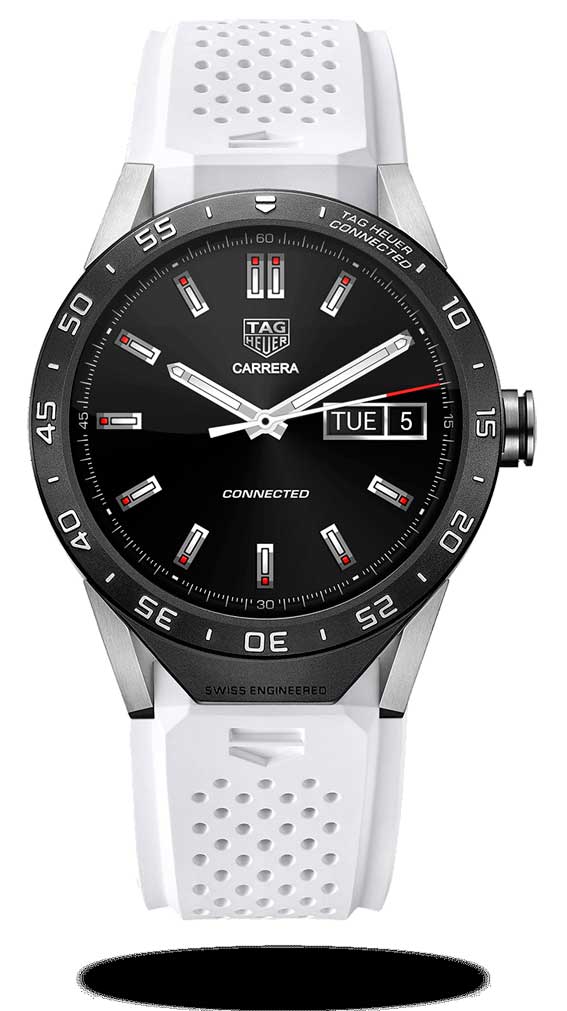

Only one lower bezel “wing” and asymmetric strap. Early models have a 'SWISS ENGINEERED' text on the lower wing.

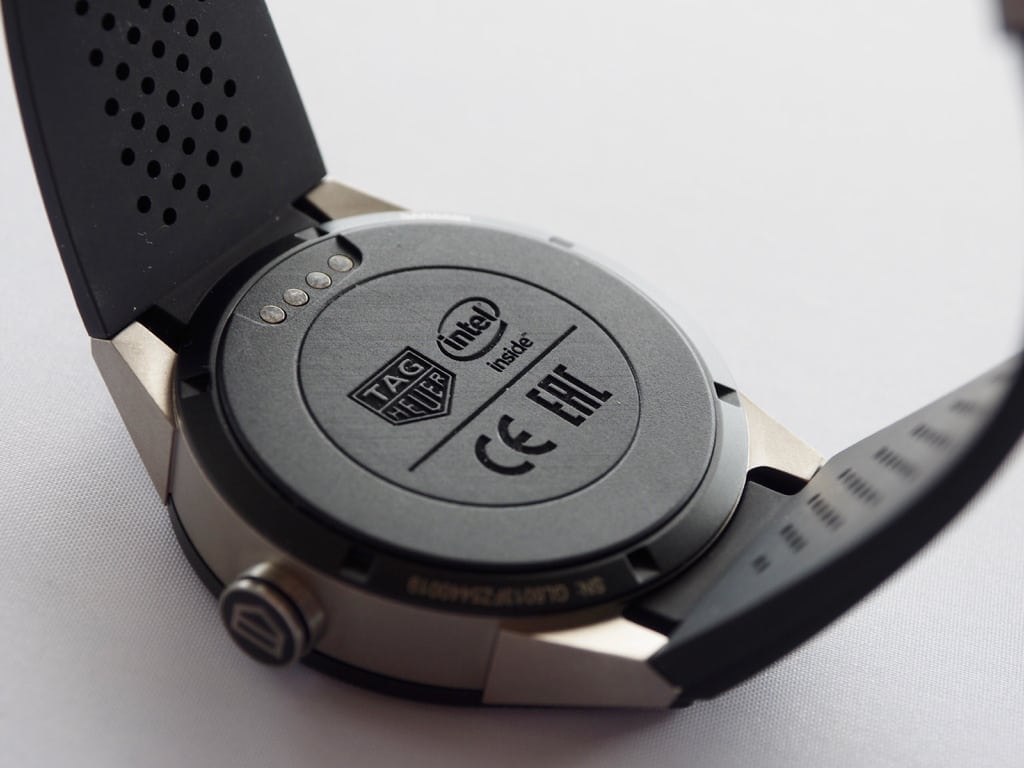

Titanium case with black plastic caseback
Not 50 meters waterproof

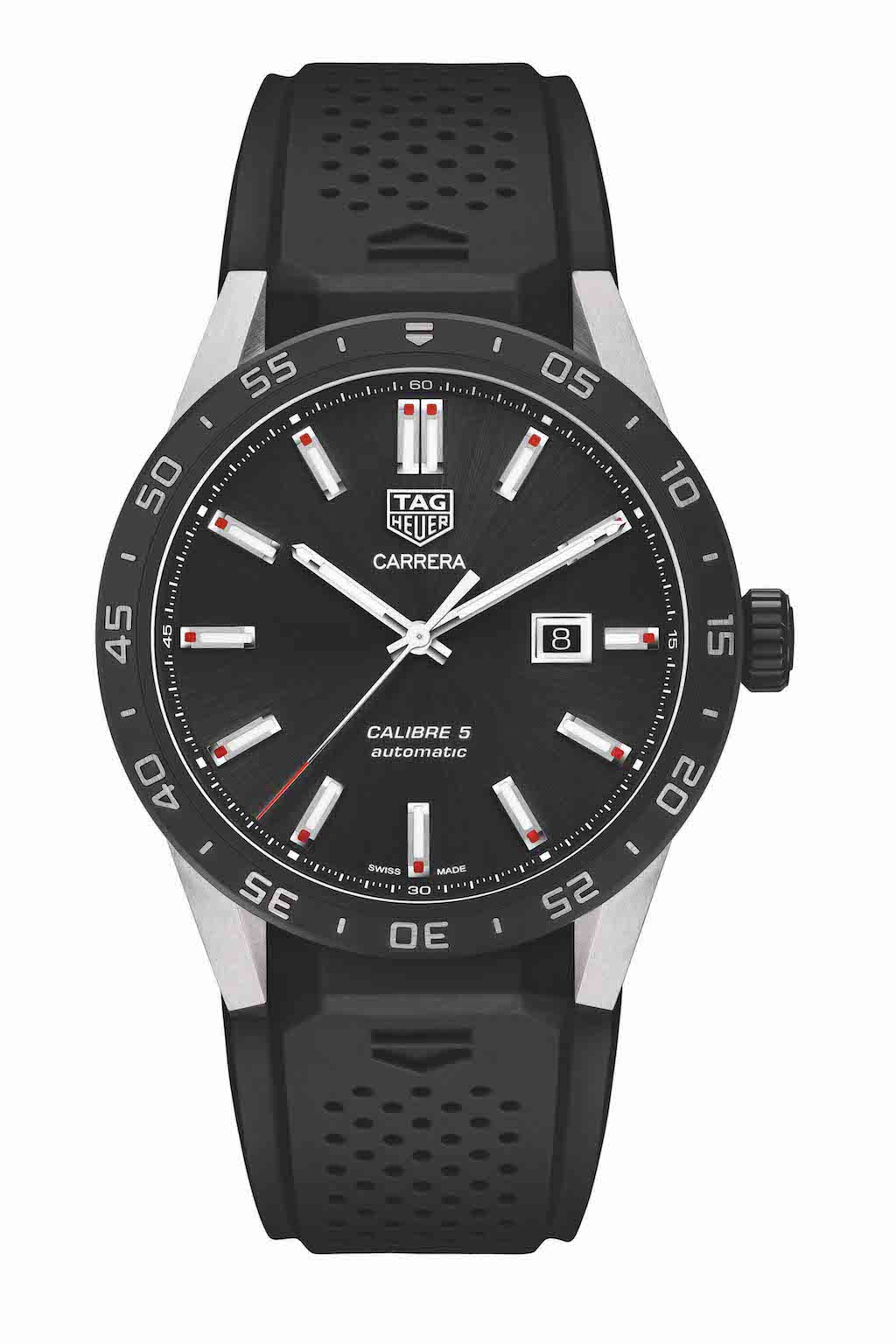

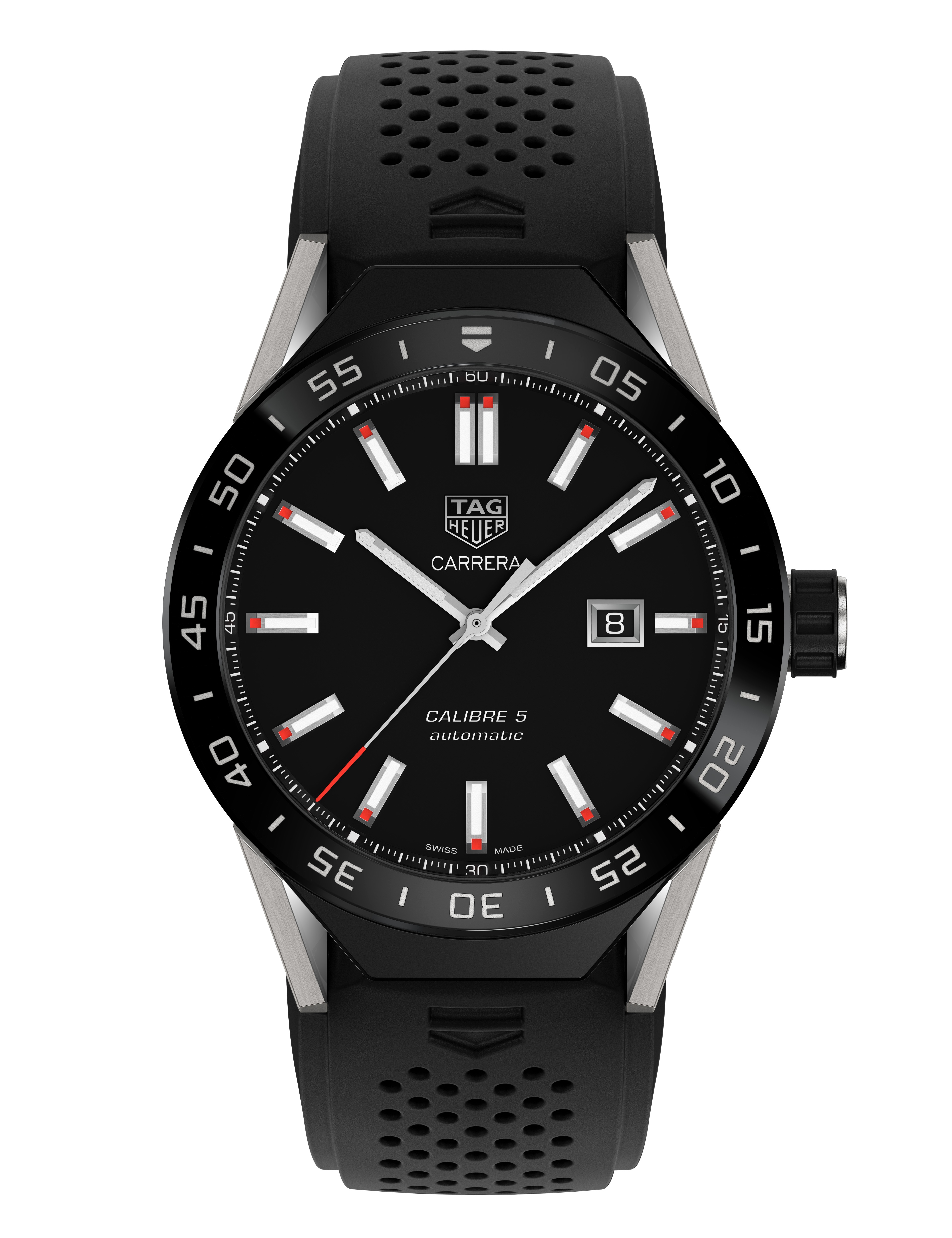

Carrera Calibre 5 exchange watch for 1st Gen.
(SAR2A80)
#connectedtoeternity

Info:
https://tagheuerforums.com/threads/carrera-connected-calibre-5-exchange-watch.38252/

__________________________________________

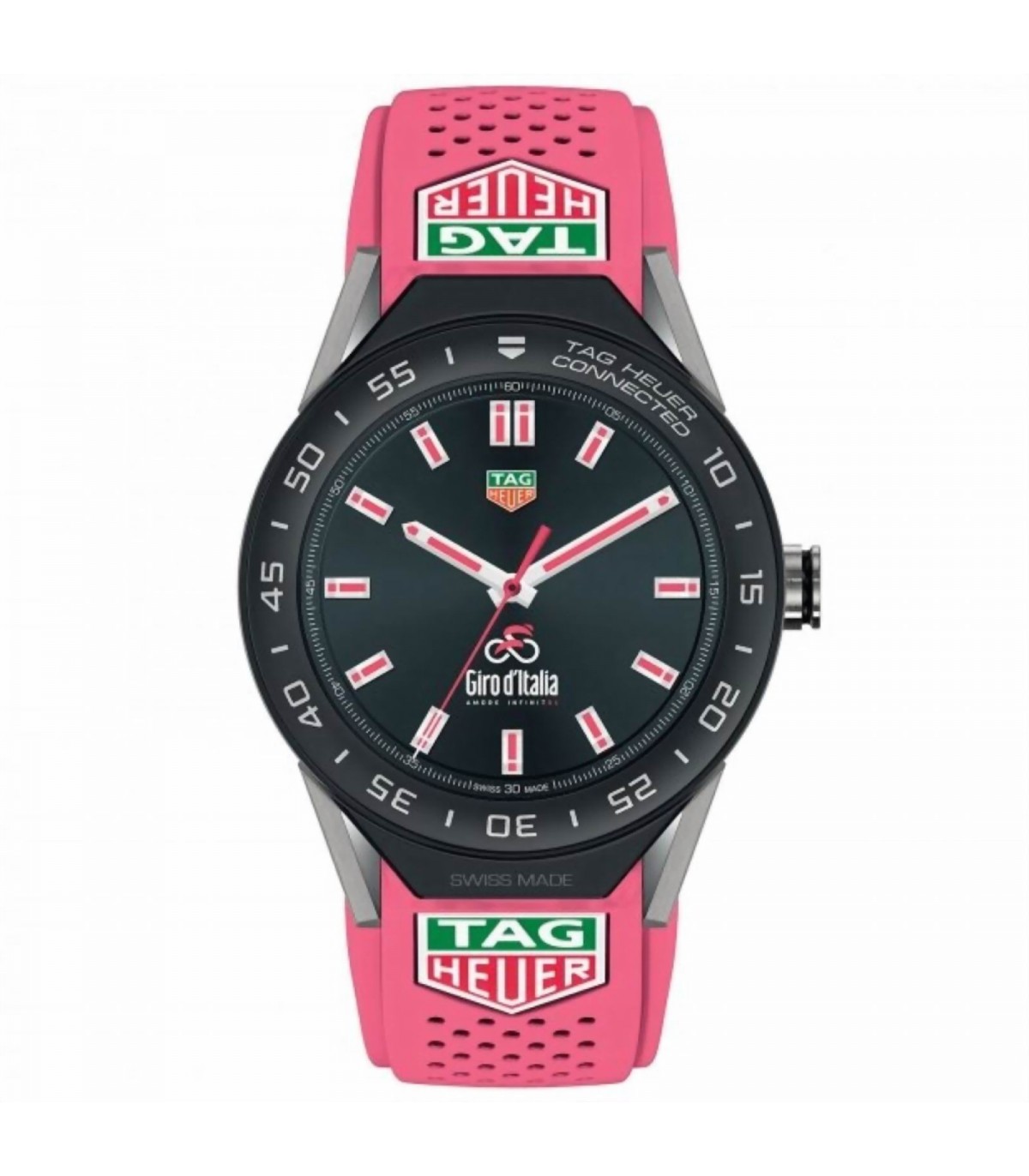

2nd Generation (45 and 41mm versions)
From 2017 to 2020

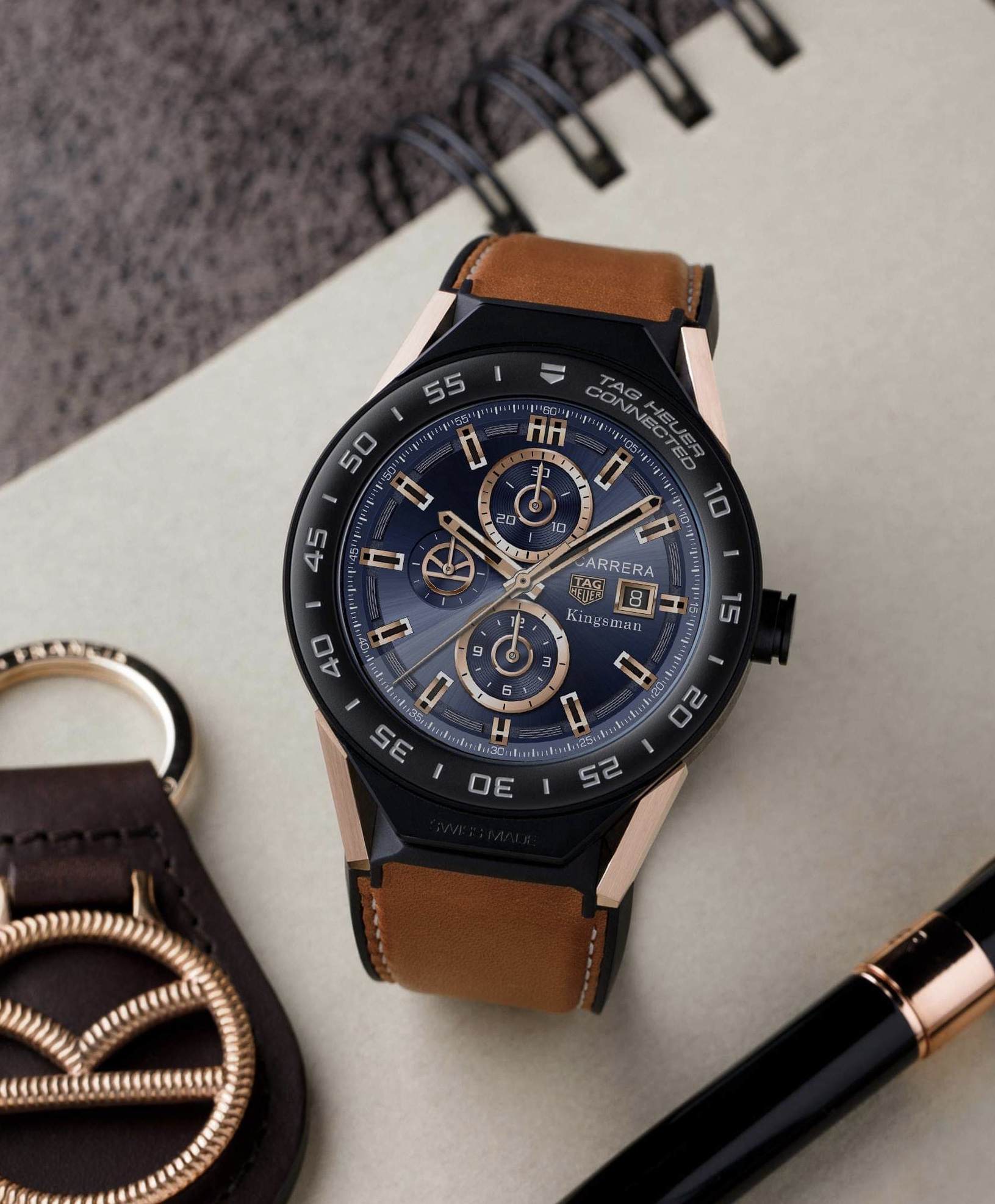

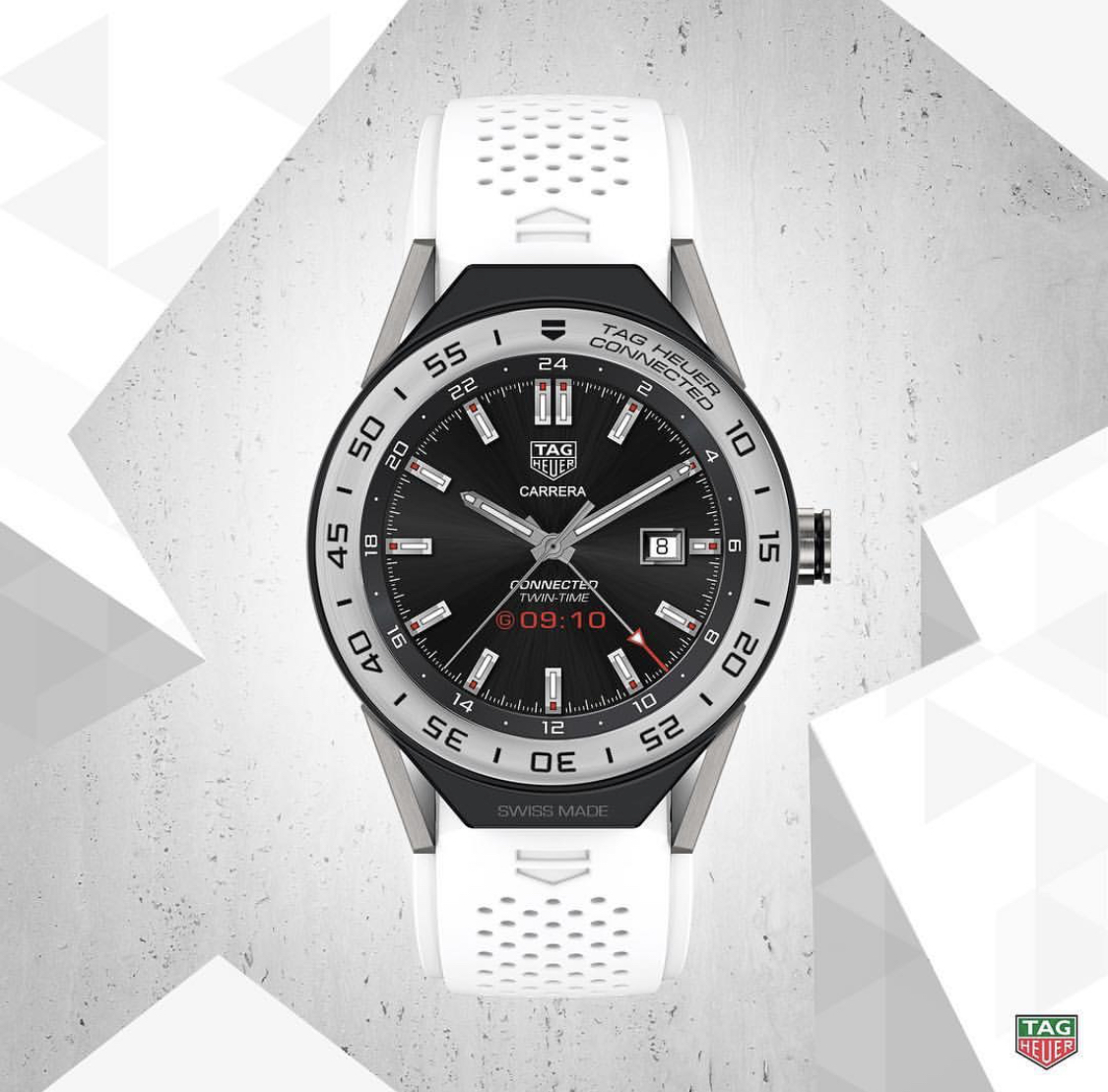

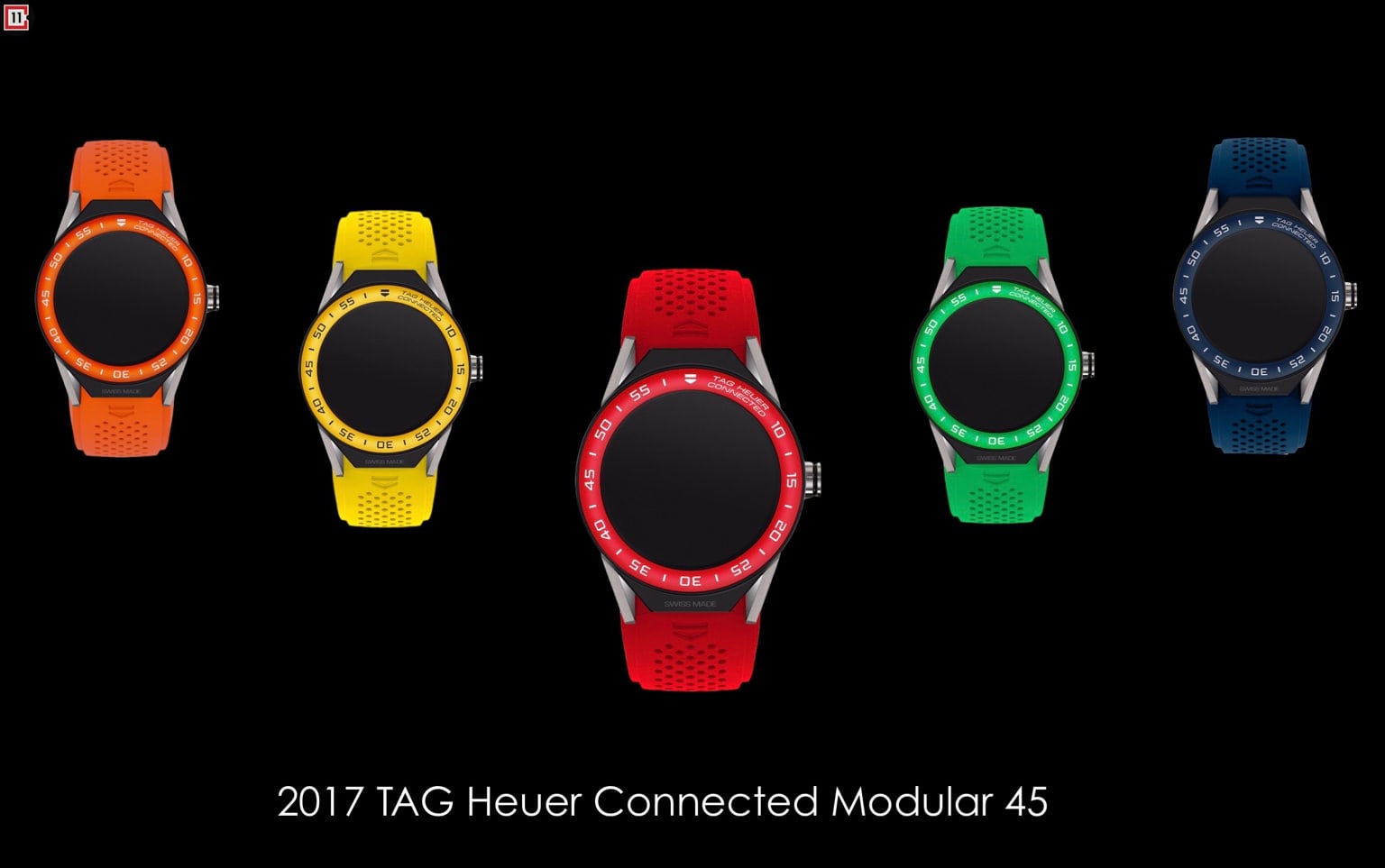

TAG Heuer Connected Calibre E2 Modular 45
(SBF8A)

Info:
https://tagheuerforums.com/threads/ownership-experiences-2017-tag-heuer-connected-modular-45.54621/

Two bezel “wings”, upper and lower

'SWISS MADE' text on lower wing. This is the first Swiss Made smartwatch ever, and the only Swiss Made TAG Heuer Connected generation.

All E2 are made in titanium

Full titanium case, including caseback

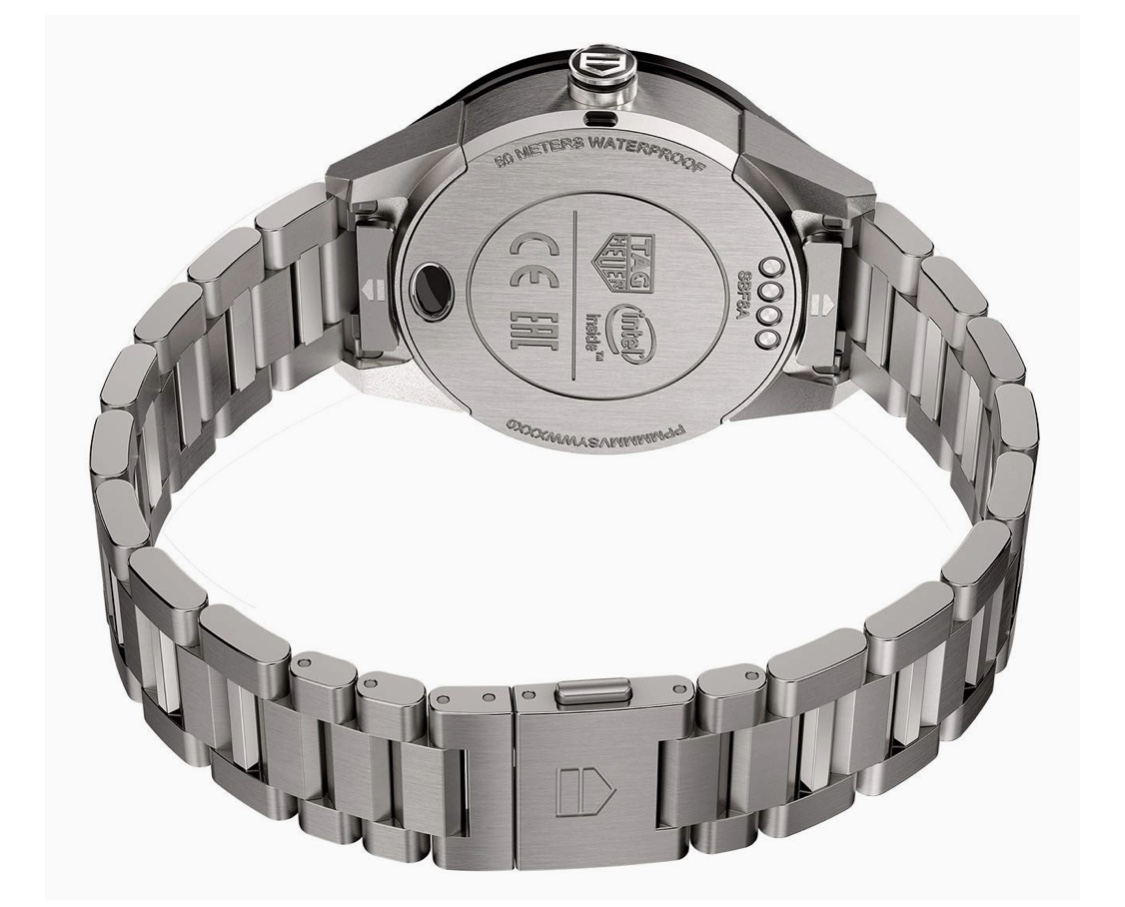

We can find a '50 METERS WATERPROOF' (early versions) or just a '50 METERS' text on the caseback

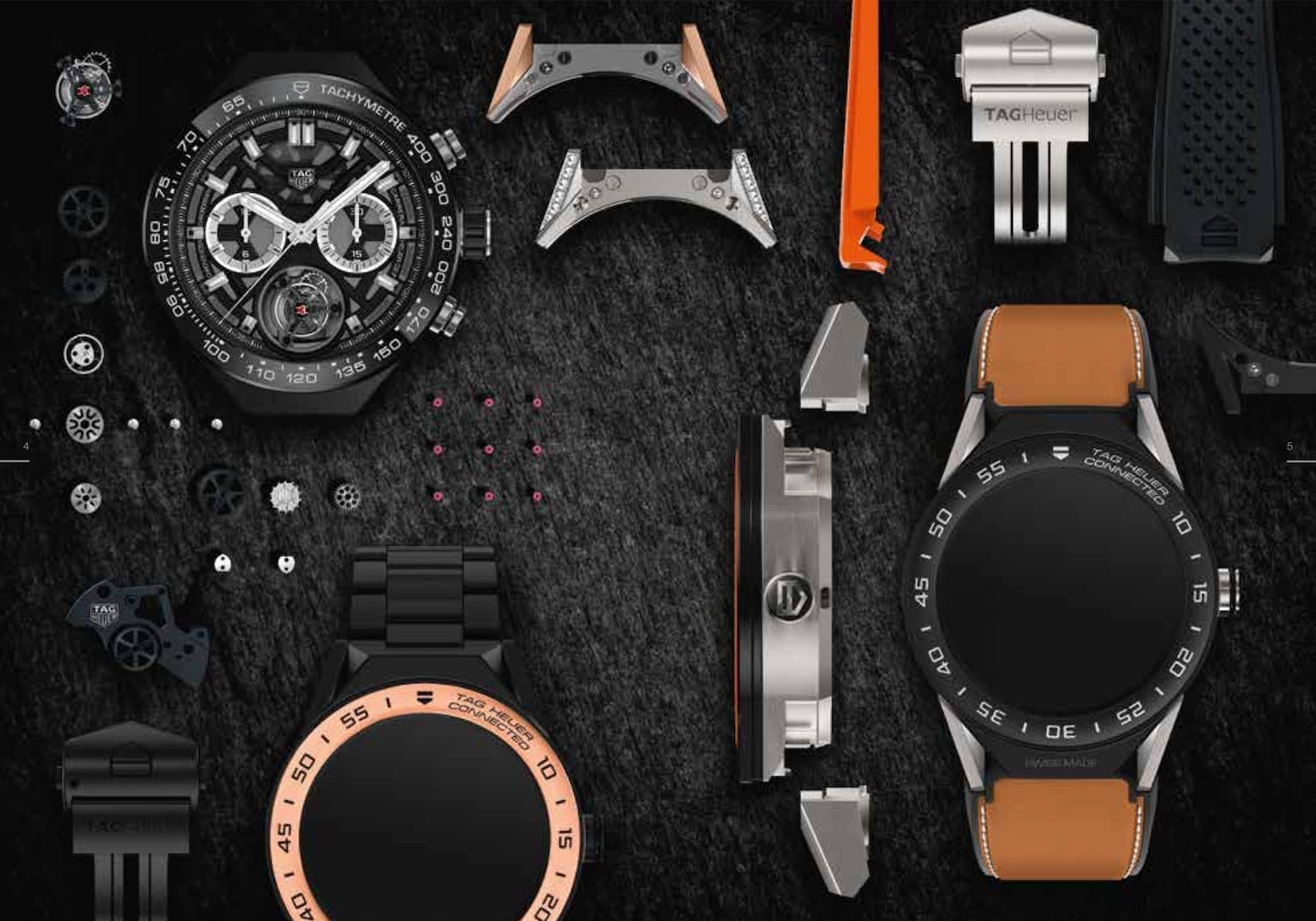

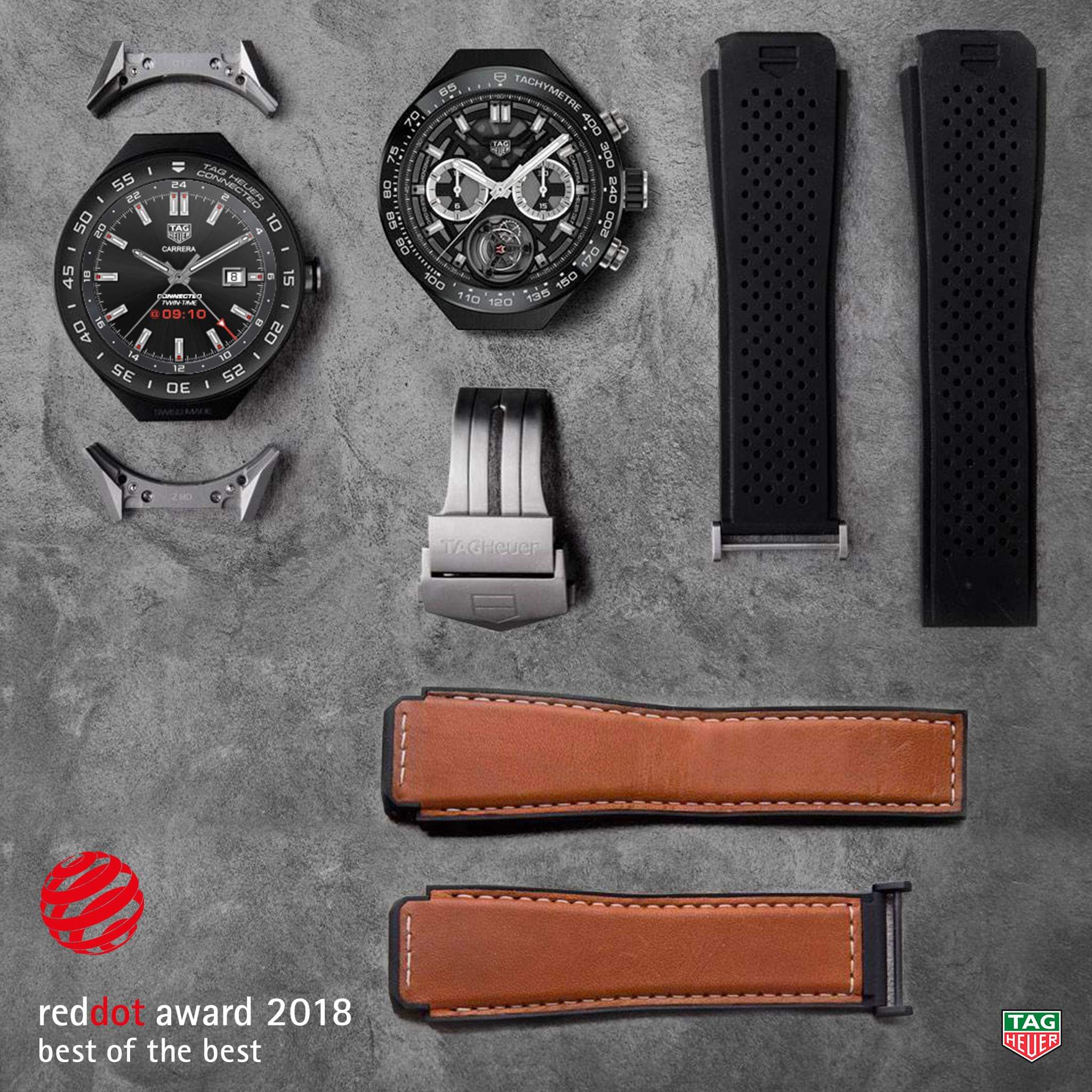

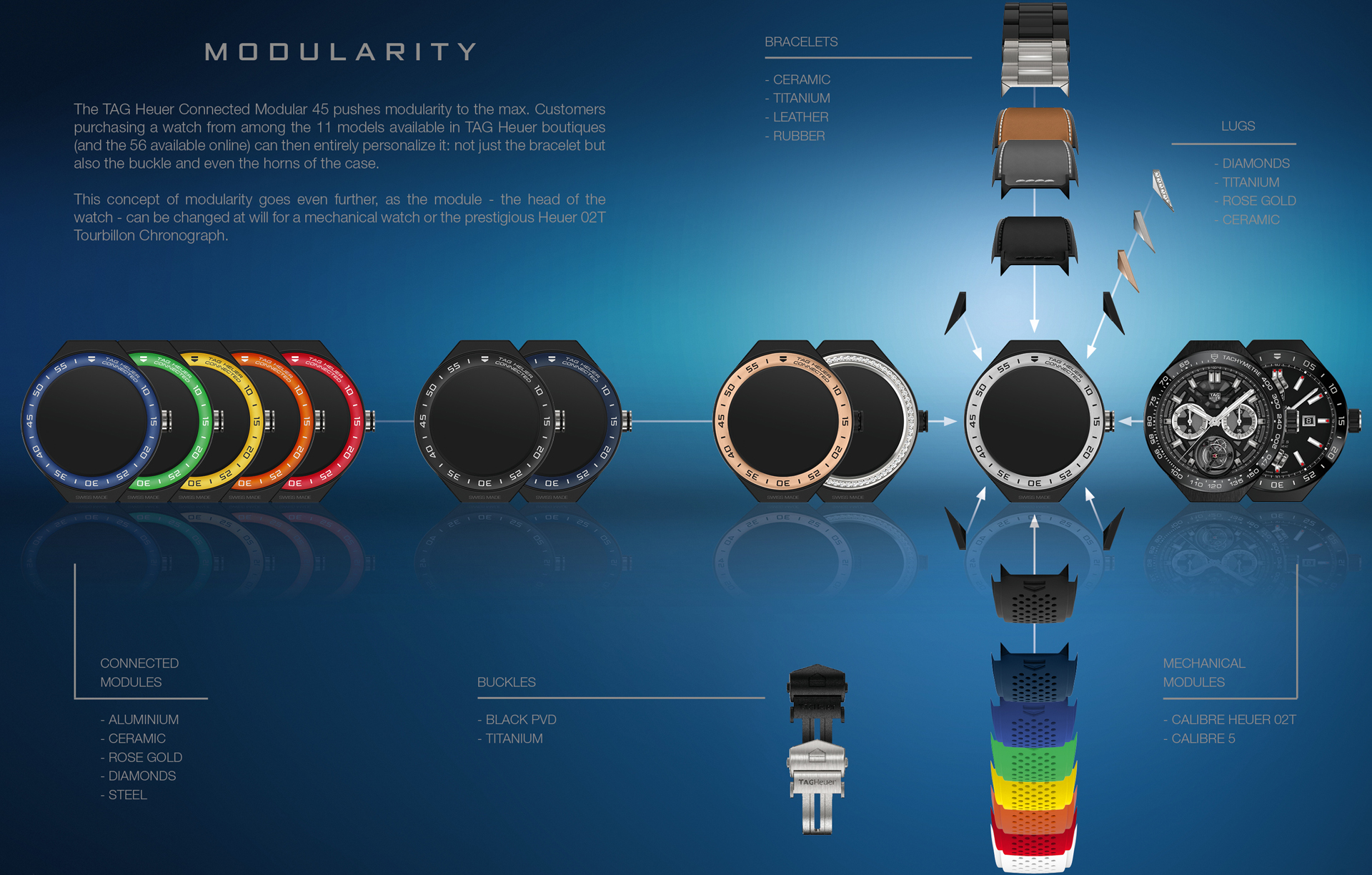

Modular concept with quick-release system for lugs, straps, buckles, and with available mechanical modules (this is the only Modular generation)

Modular 45 buckle:

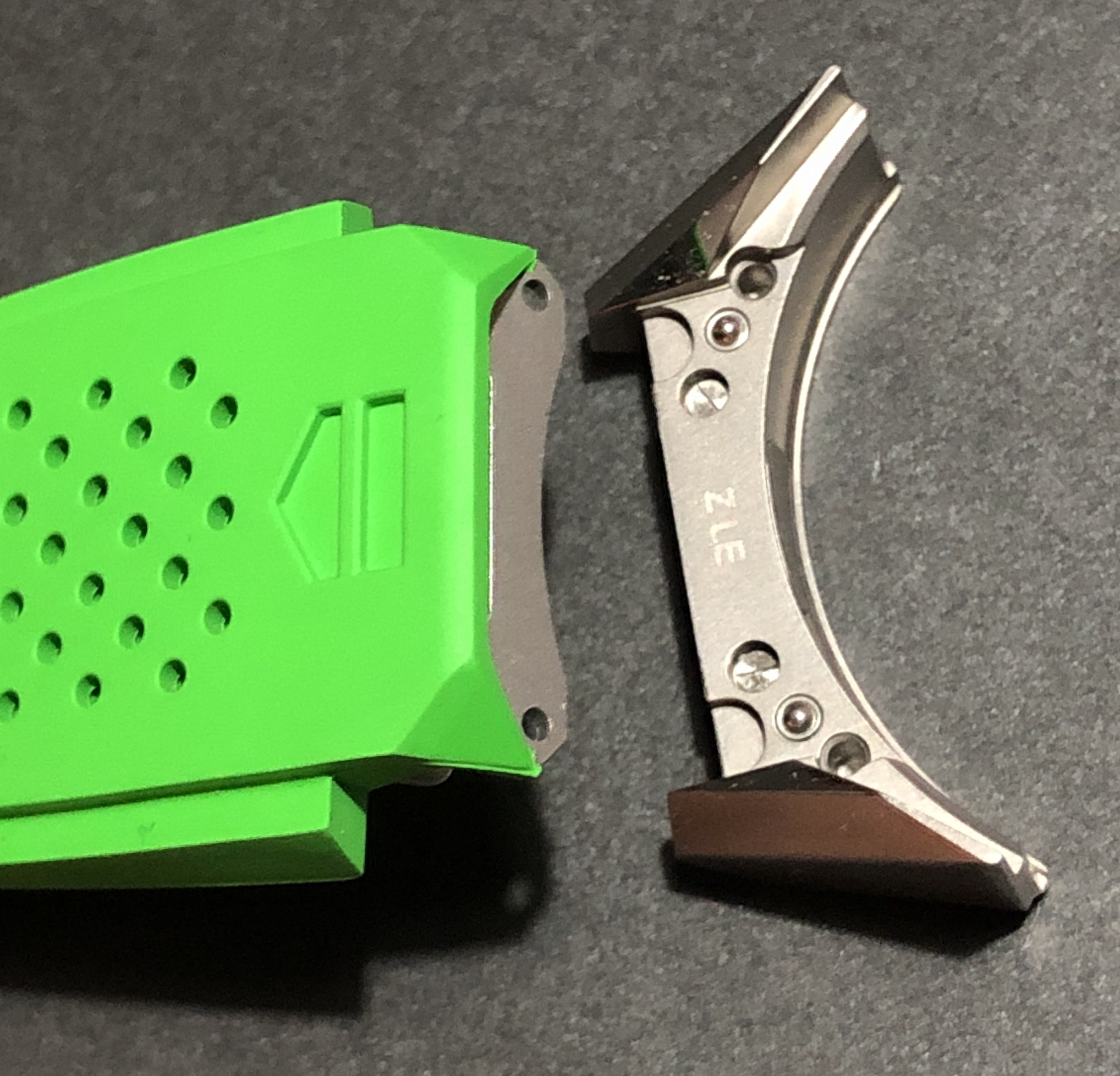

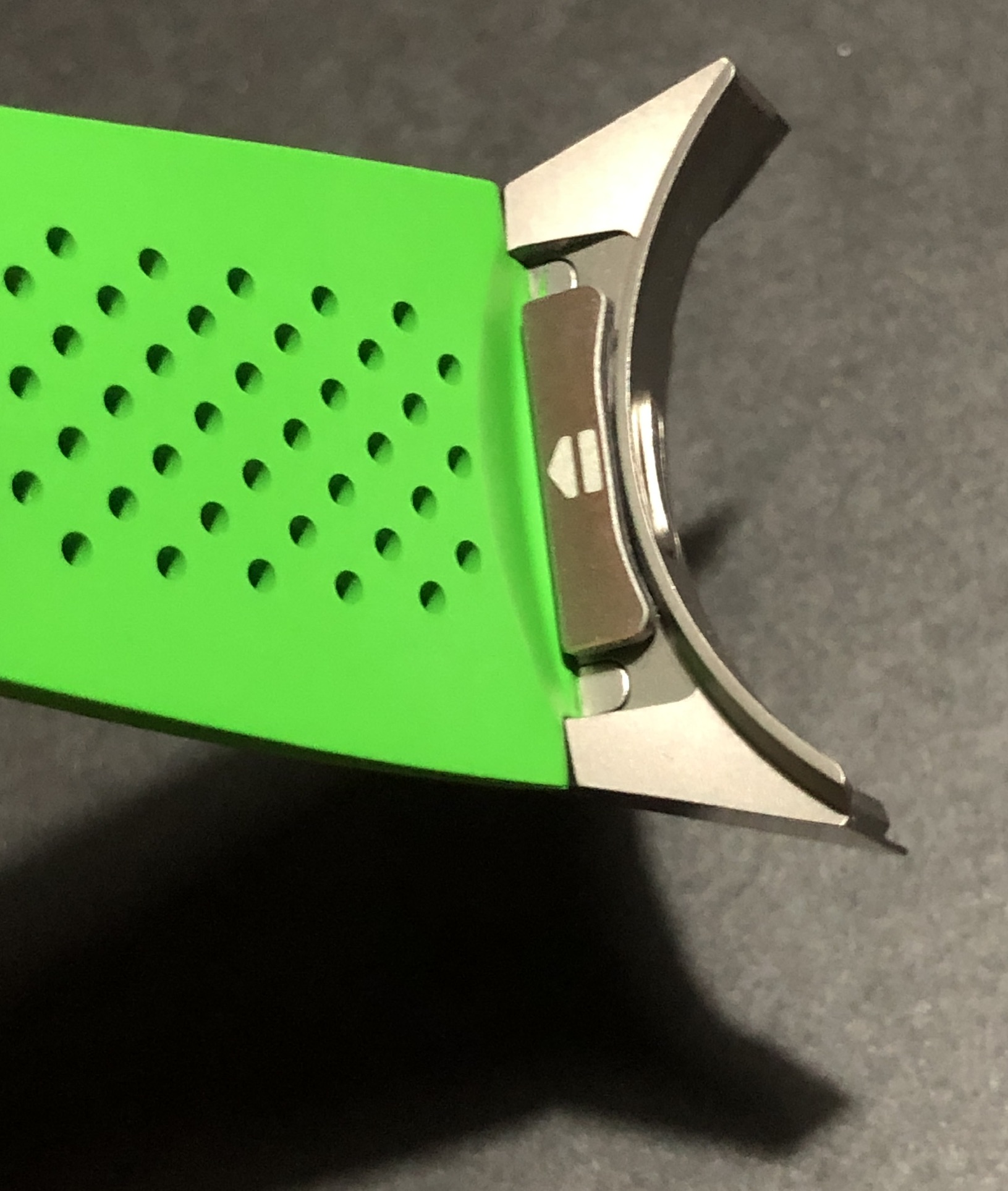

Specific links on the straps to fit the Modular lugs. E2 Modular straps only fit E2 Modular watch

From 2018 to 2020

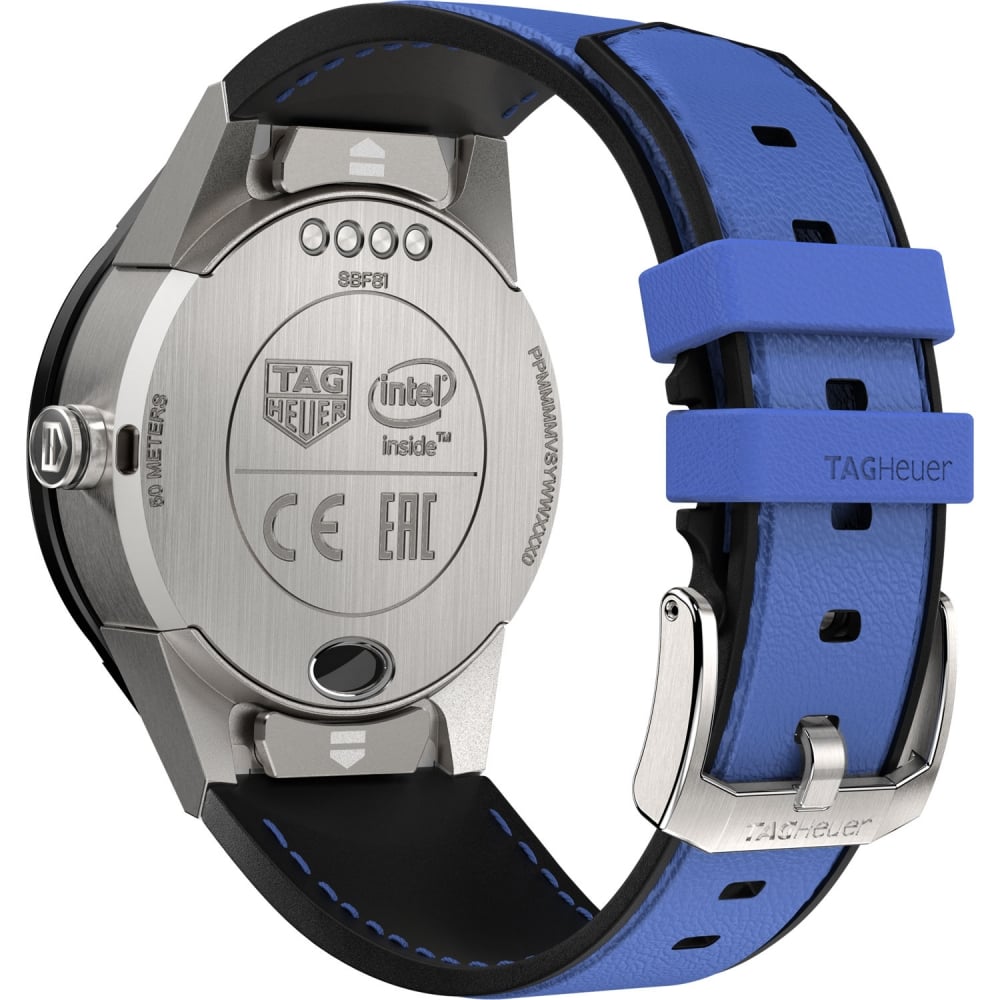

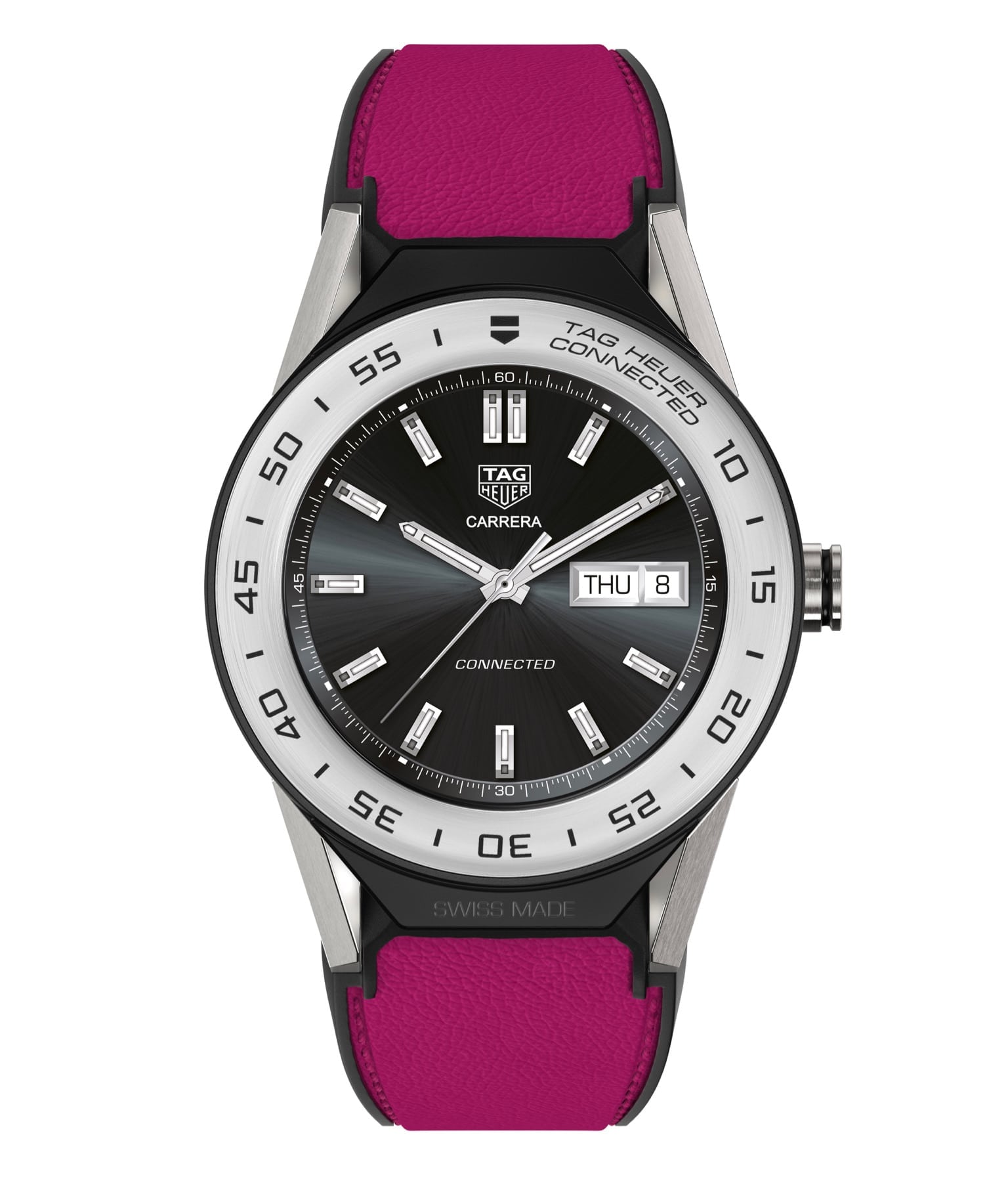

TAG Heuer Connected Calibre E2 Modular 41
(SBF81)

Info:
https://tagheuerforums.com/threads/ownership-experiences-2018-tag-heuer-connected-modular-41.77364/

Modular 41 buckle is different from 45

Mechanical modules for Calibre E2
(AWBF2A80, ACBF2A80, ACBF5A80)
#connectedtoeternity

Info:
https://tagheuerforums.com/threads/...cal-modules-for-connected-modular-45mm.69628/

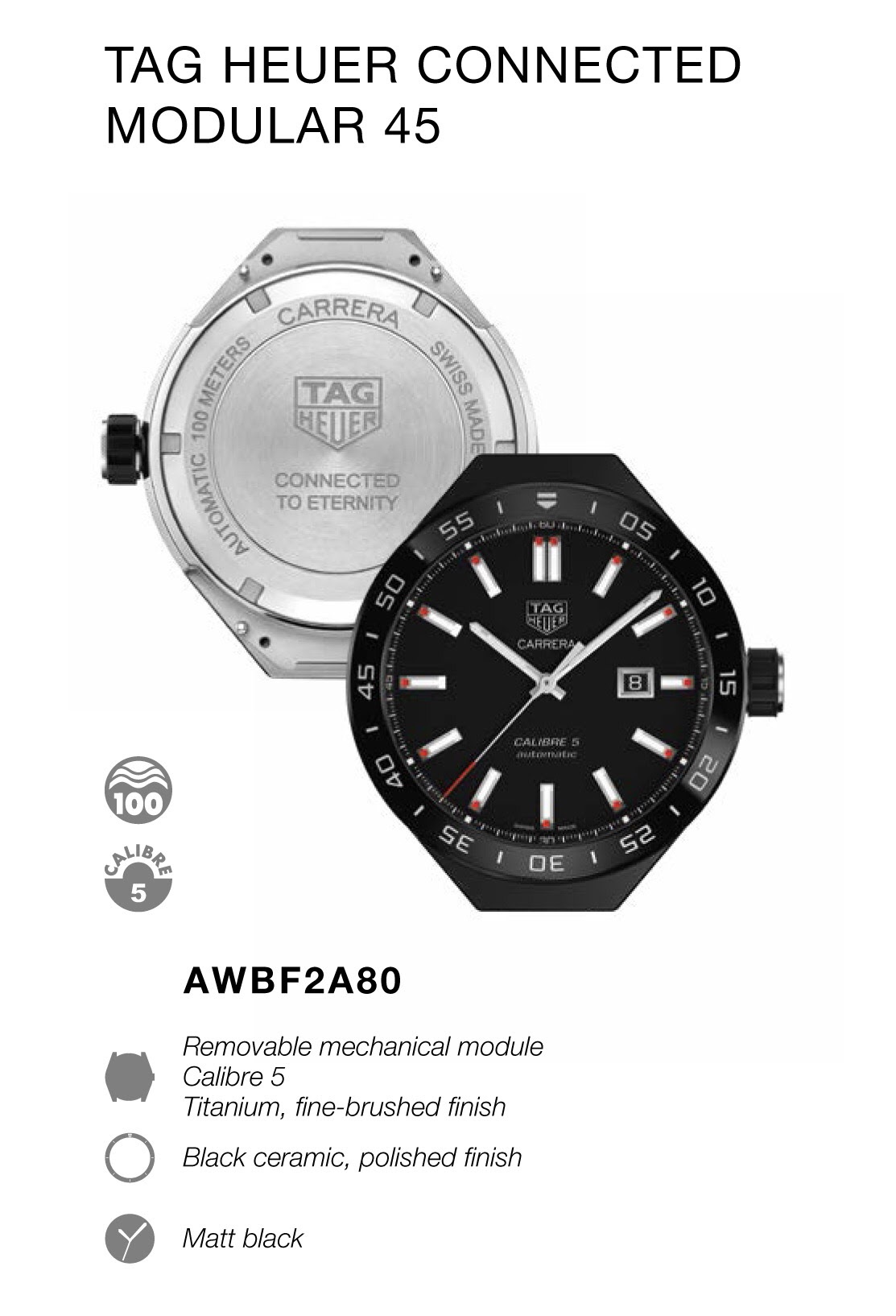

Carrera Calibre 5 mechanical module (AWBF2A80)

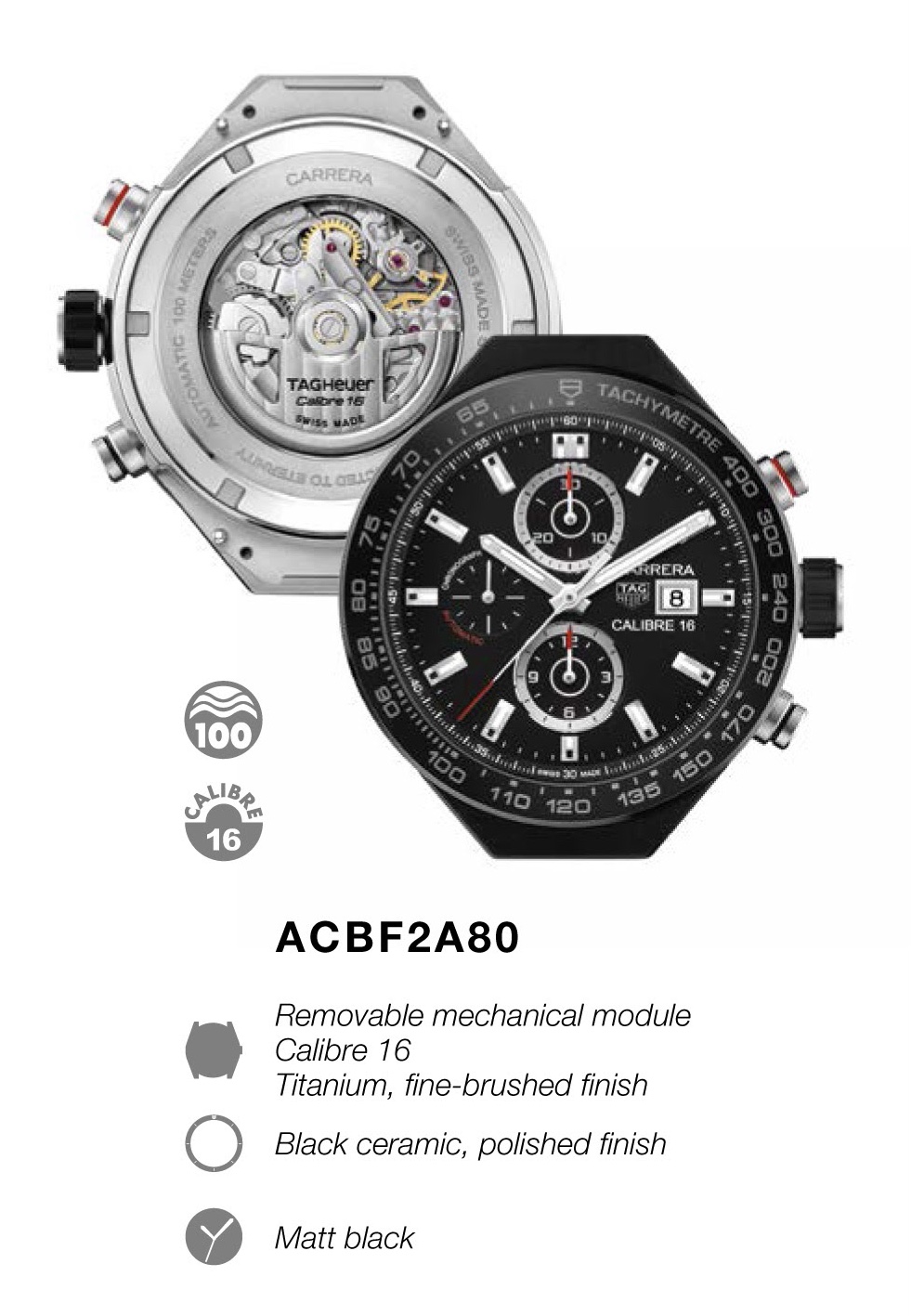

Carrera Calibre 16 mechanical module (ACBF2A80)

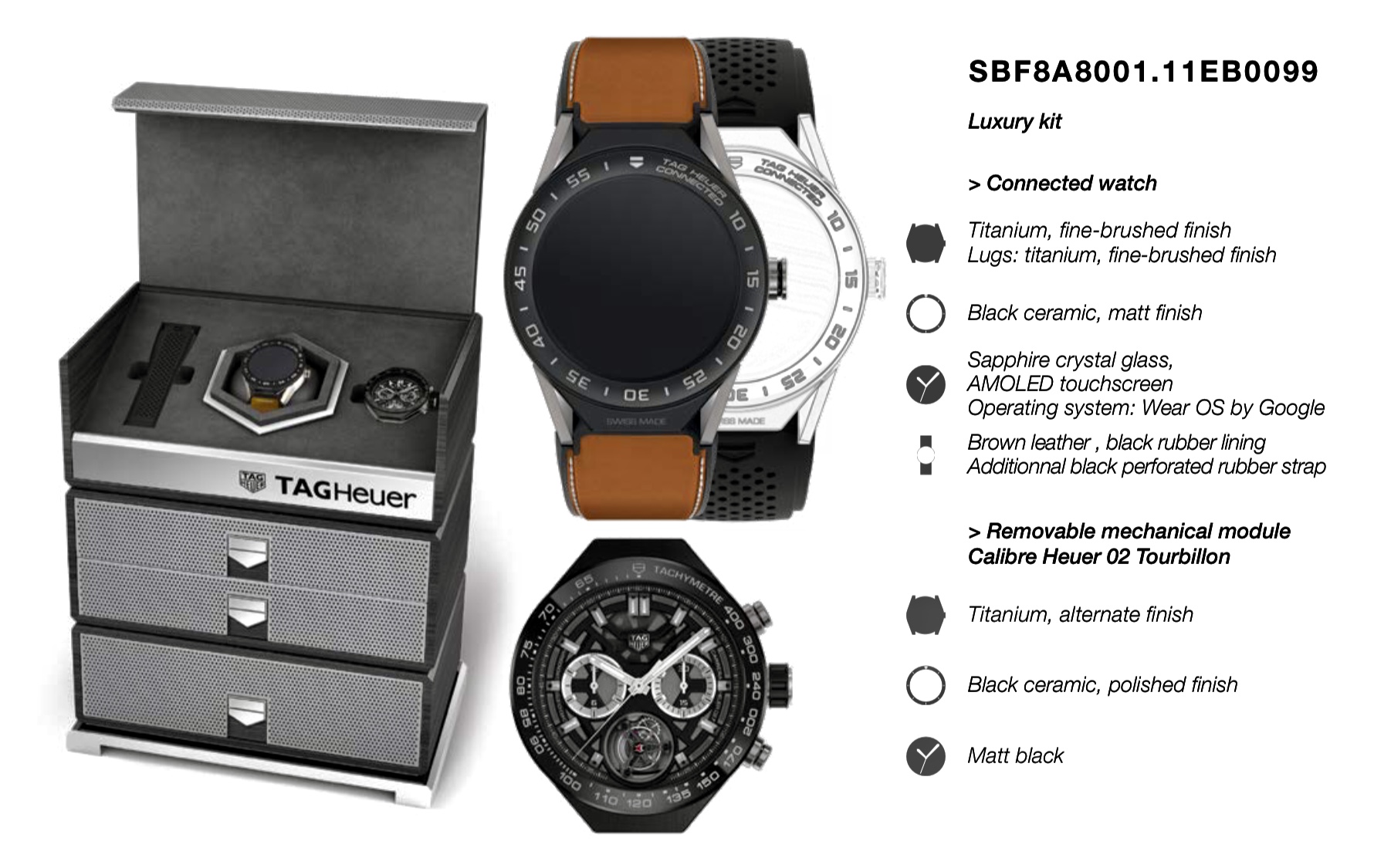

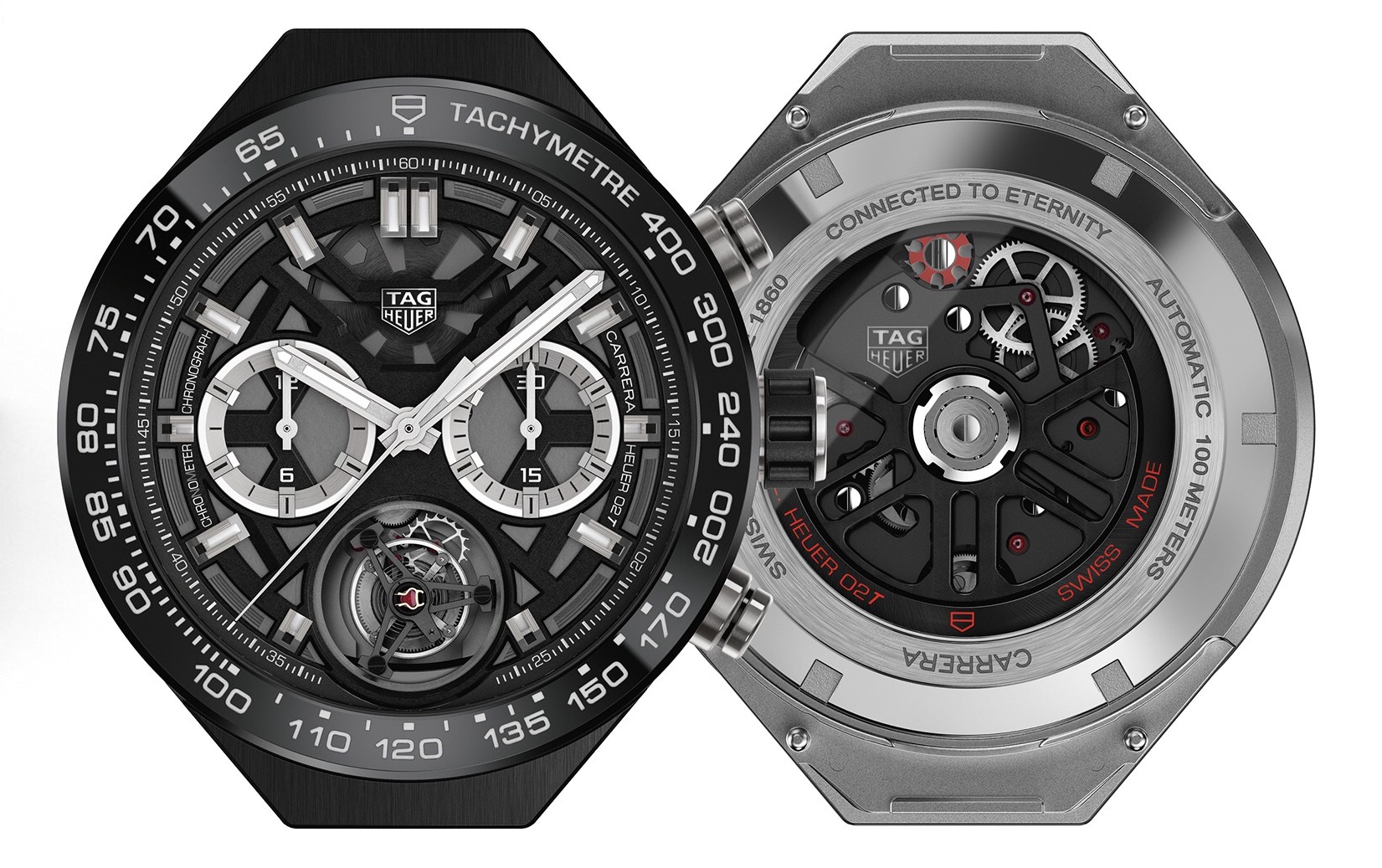

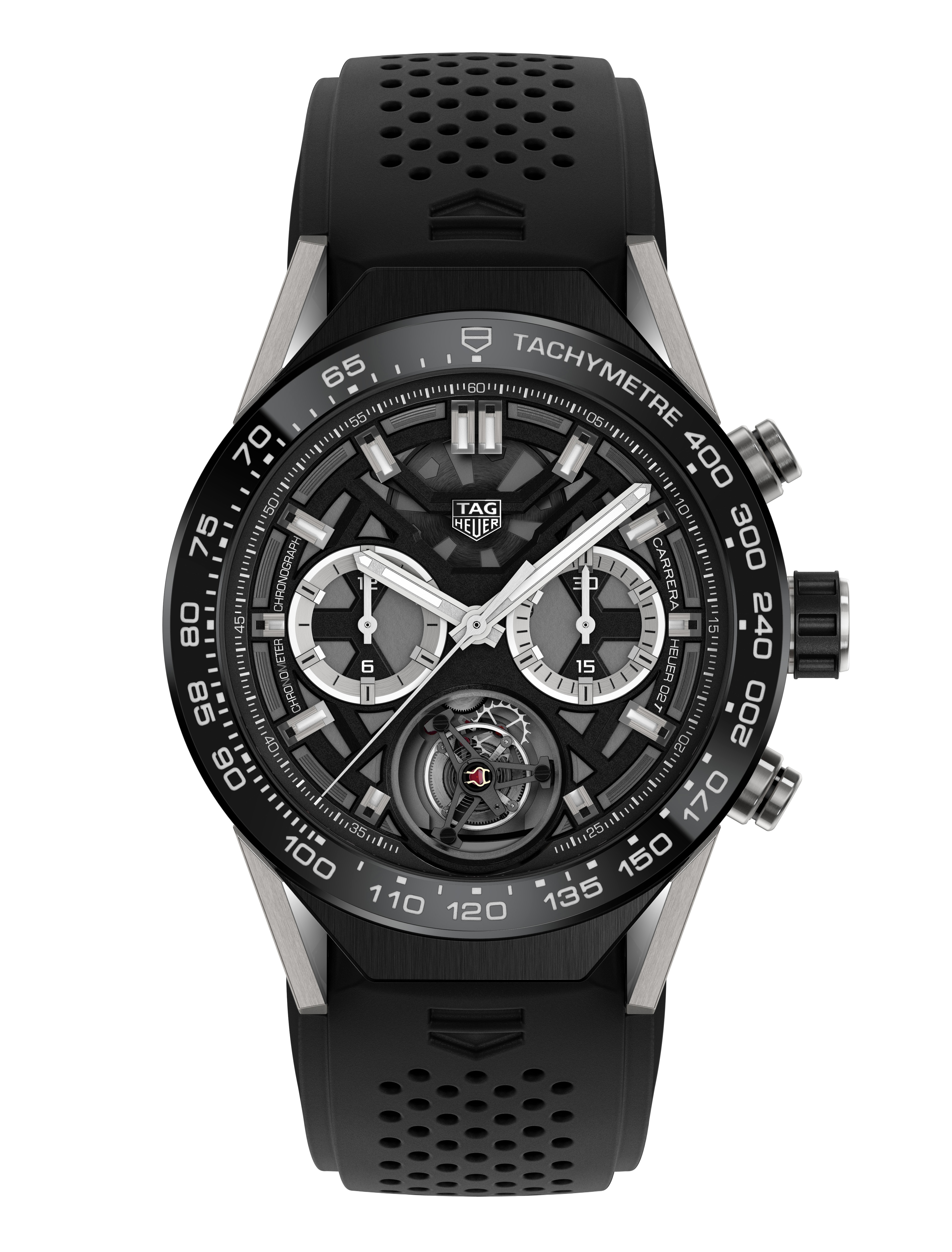

Carrera Calibre Heuer 02 Tourbillon mechanical module (ACBF5A80)

__________________________________________
3rd Generation (45mm)
From 2020 to 2022

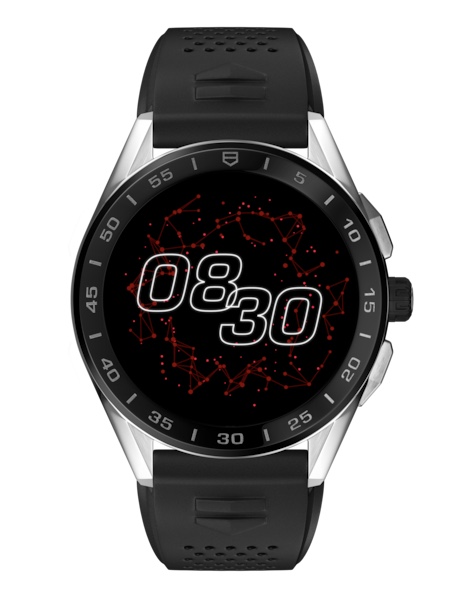

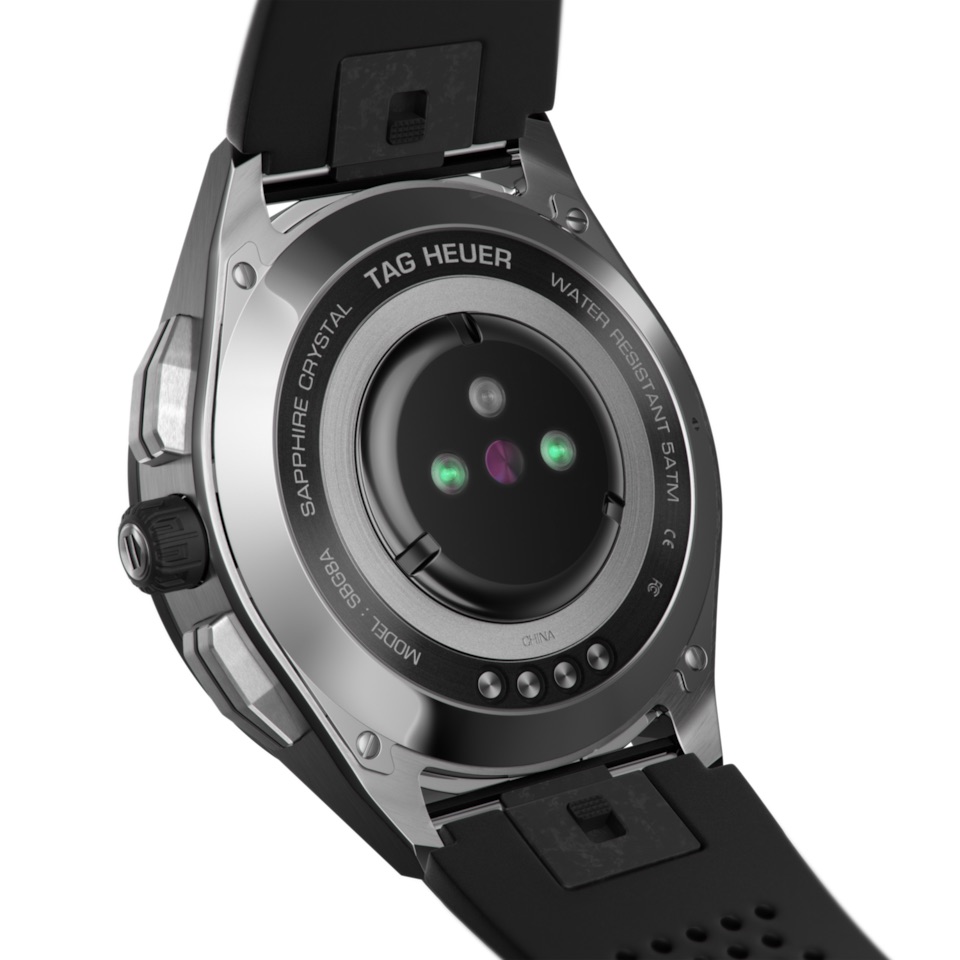

TAG Heuer Connected Calibre E3
(SBG8A)

Info:
https://tagheuerforums.com/threads/2020-tag-heuer-connected-discussions.110885/

Basic version in steel, and also available in titanium version. Made in China.

__________________________________________

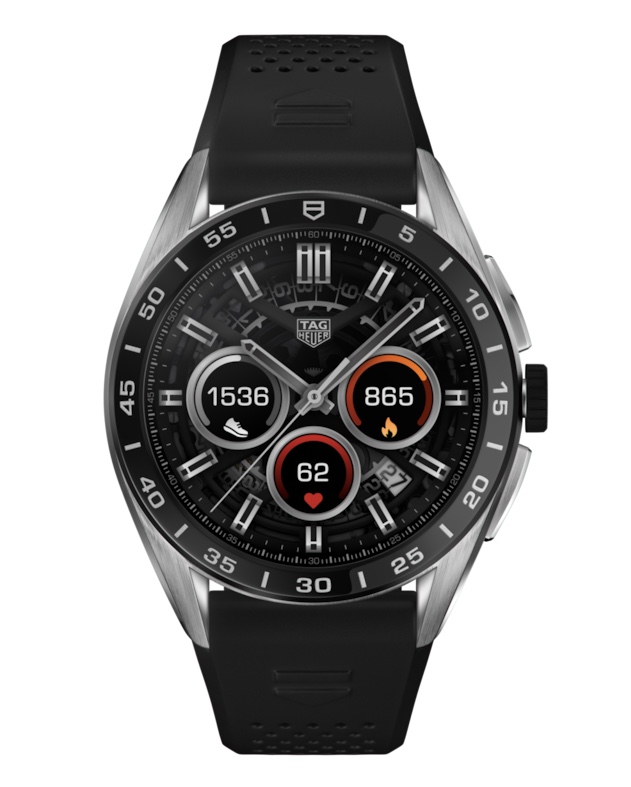

4th Generation (45 and 42mm versions)
From 2022
TAG Heuer Connected Calibre E4 - 45mm (SBR8A) and Calibre E4 - 42mm (SBR80)

Info:
https://tagheuerforums.com/threads/2022-tag-heuer-connected-discussions-thread.142026/

Basic version in steel, and also available in titanium version. Made in China.

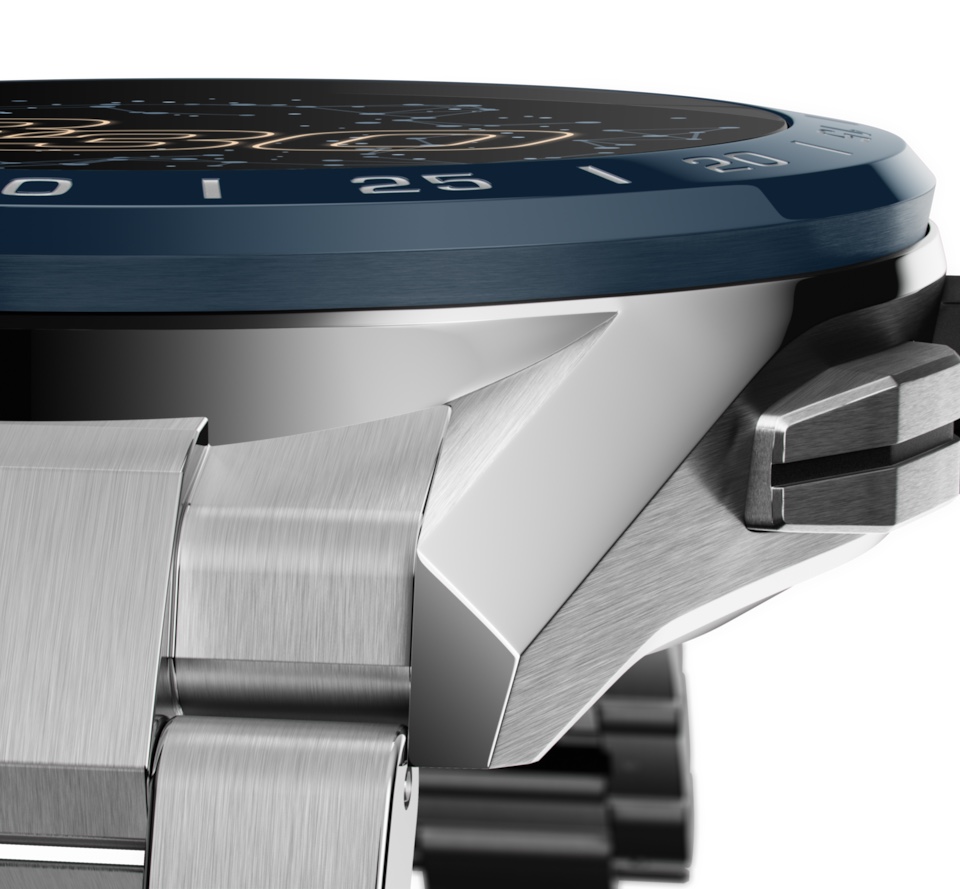

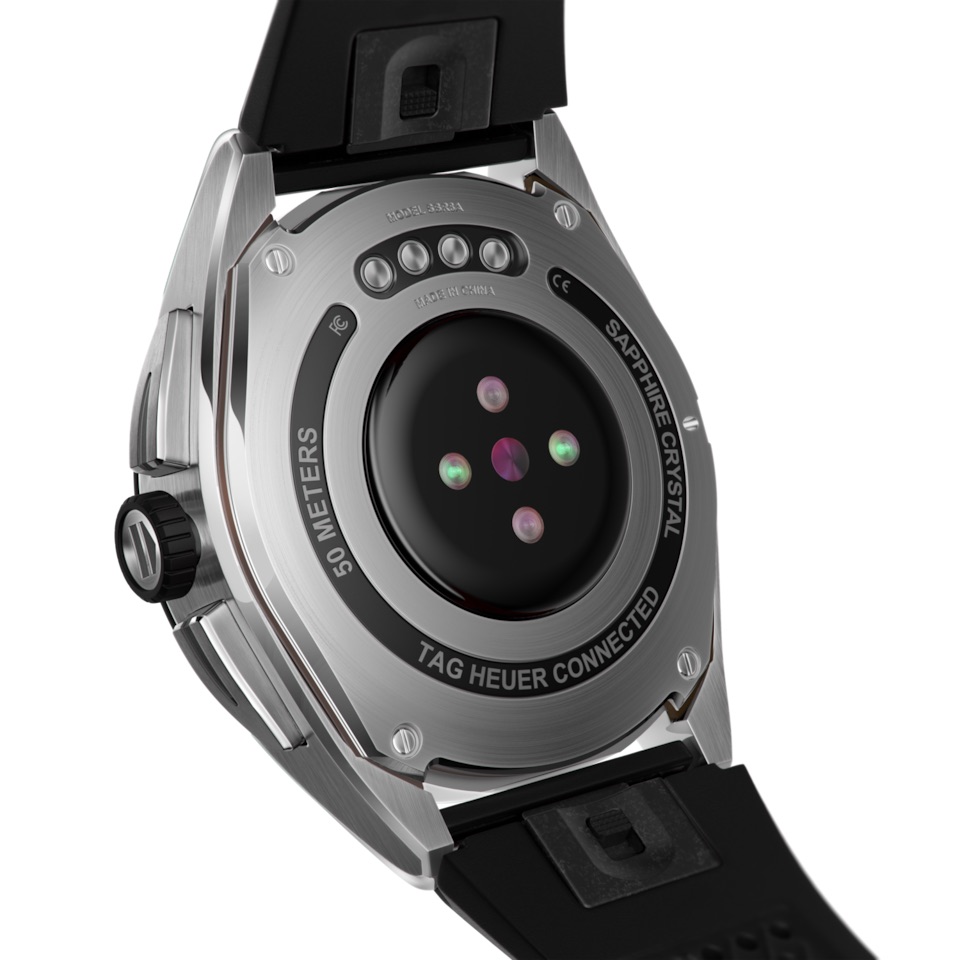

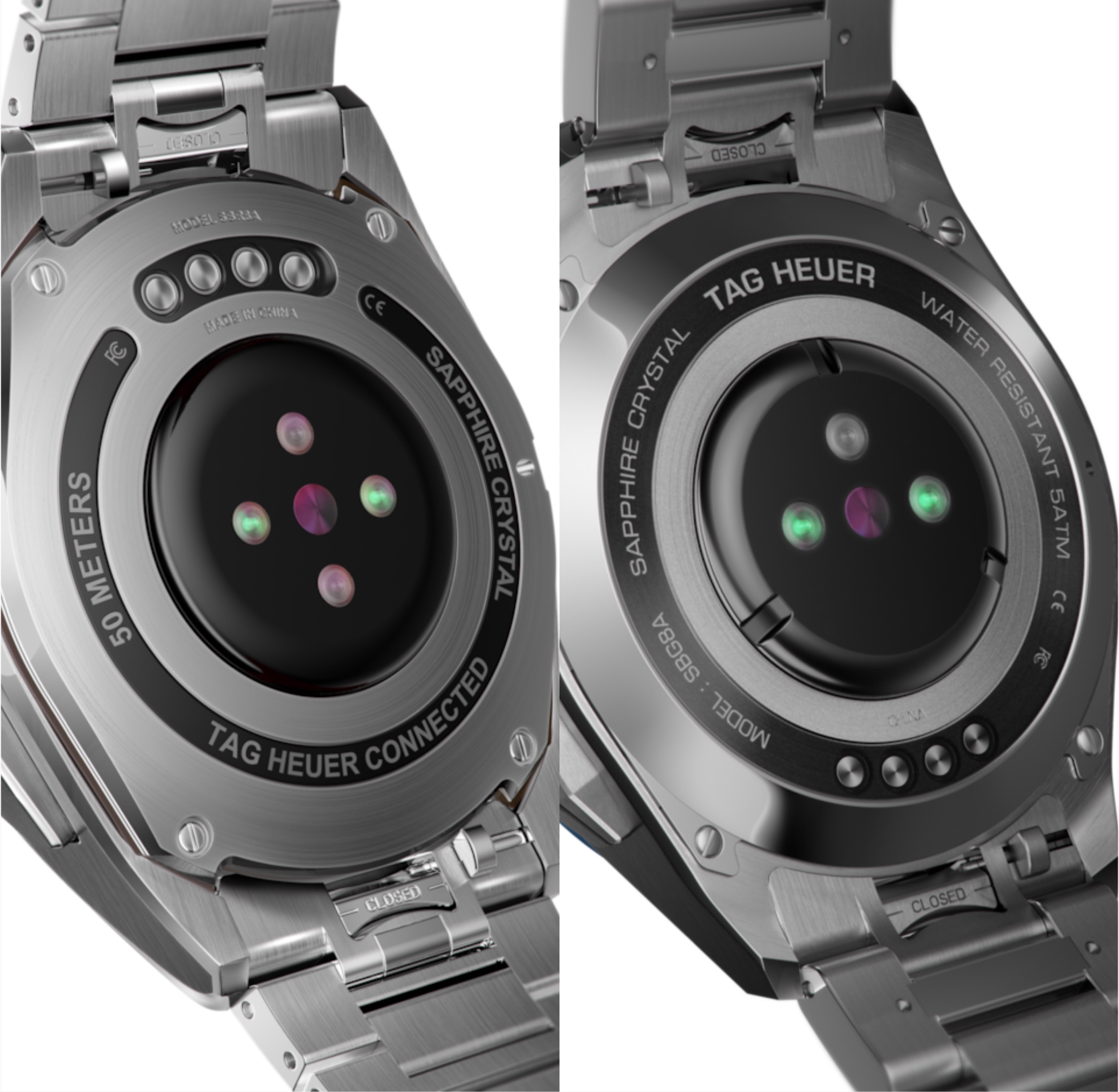

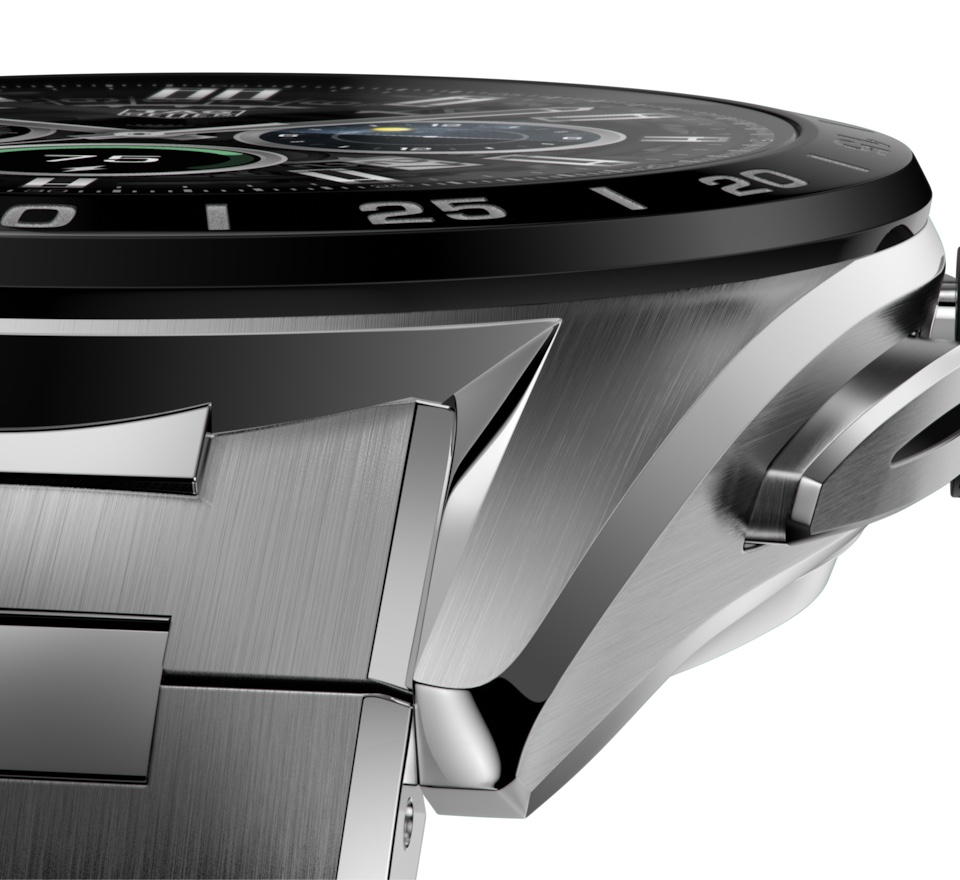

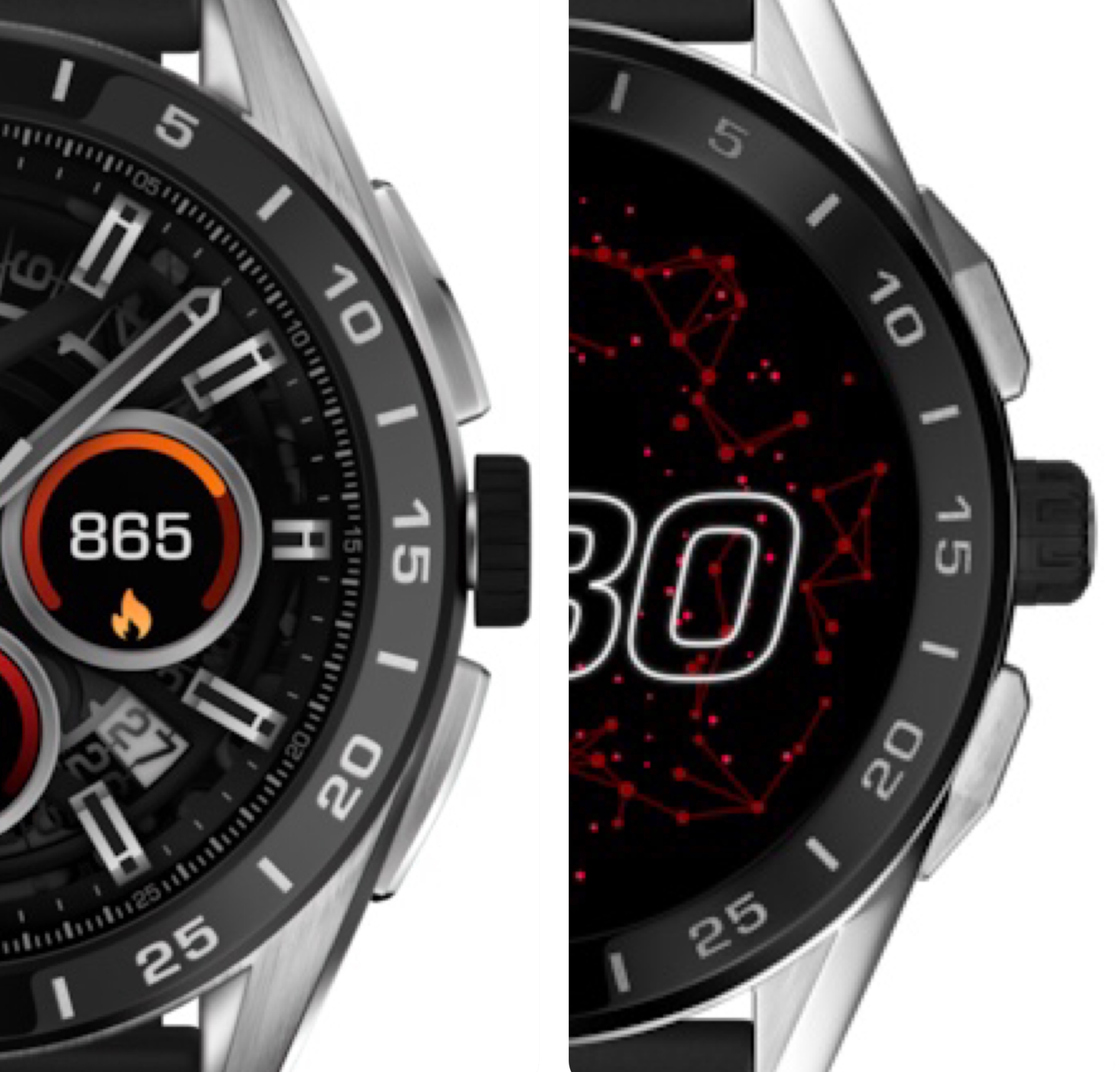

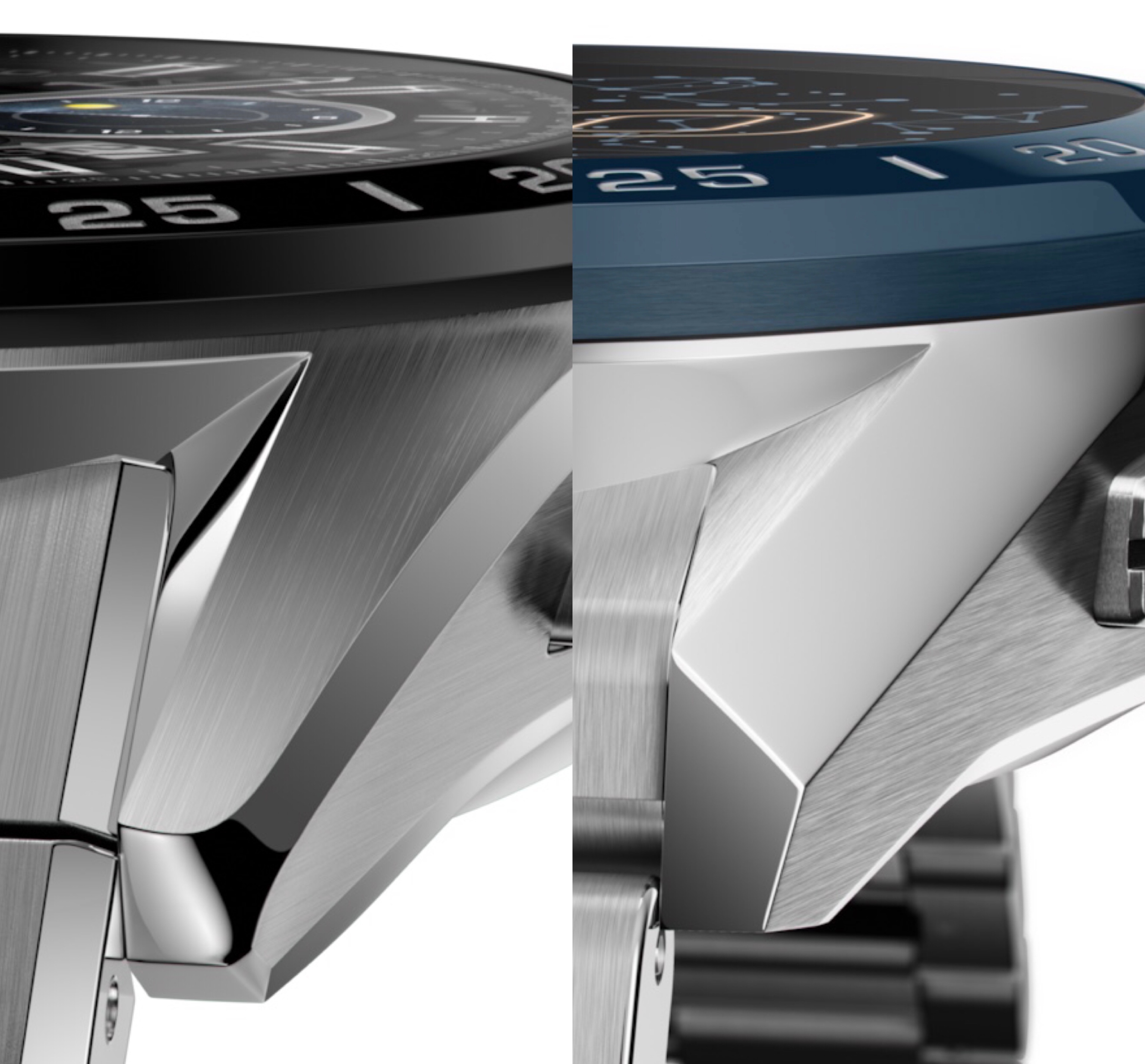

At first glance it’s not easy to differentiate E3 from E4 45mm. This side by side pictures are helpful:

E4/E3

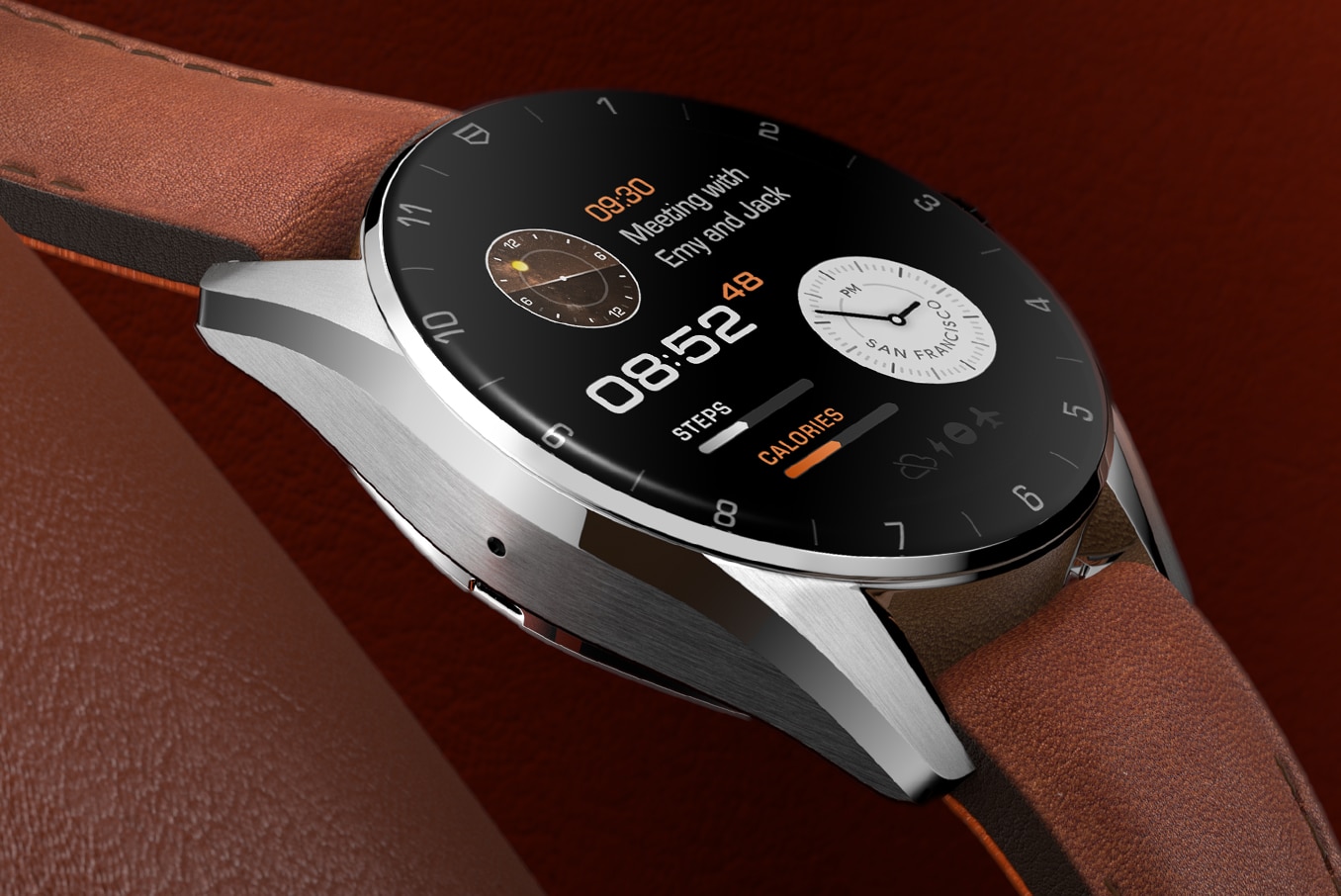

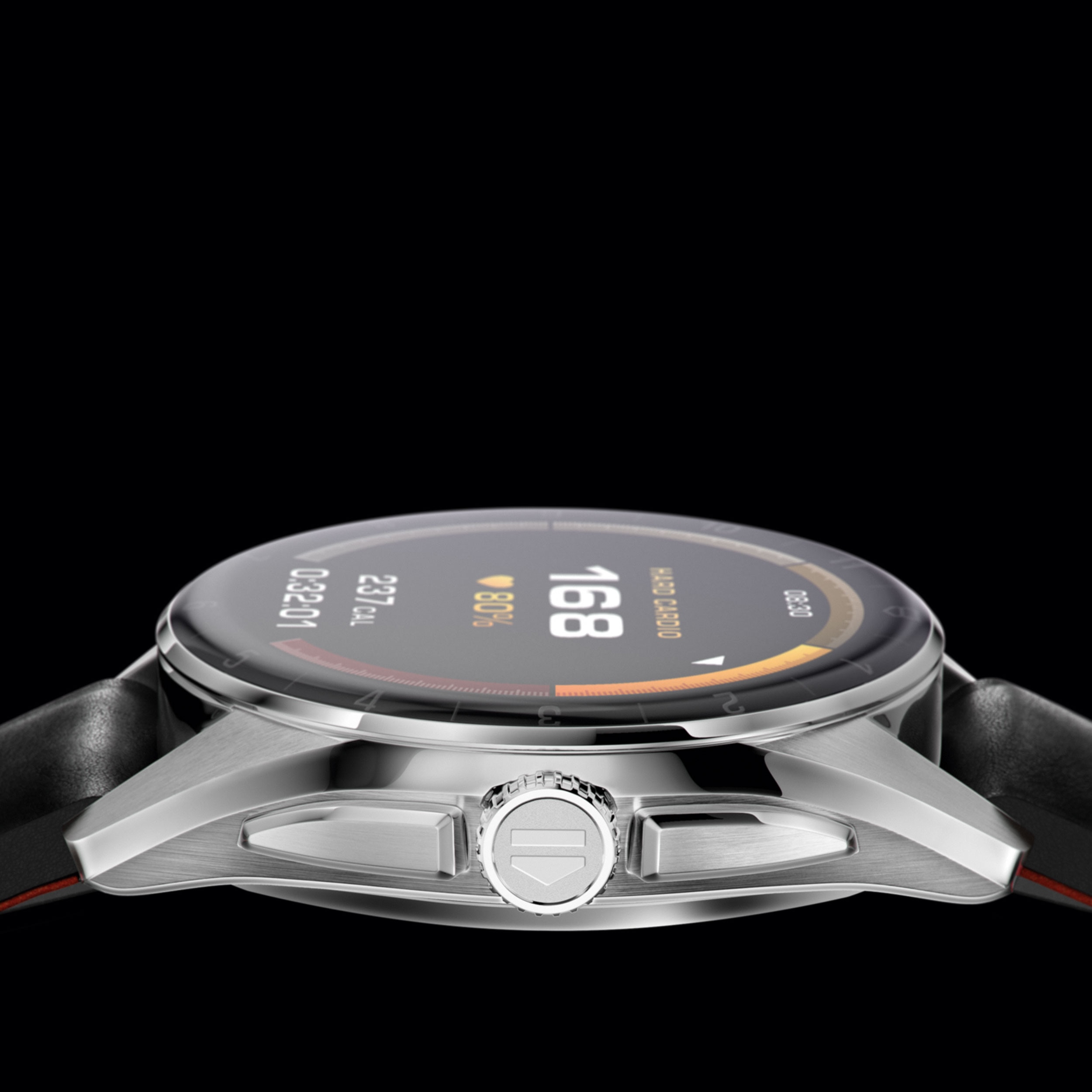

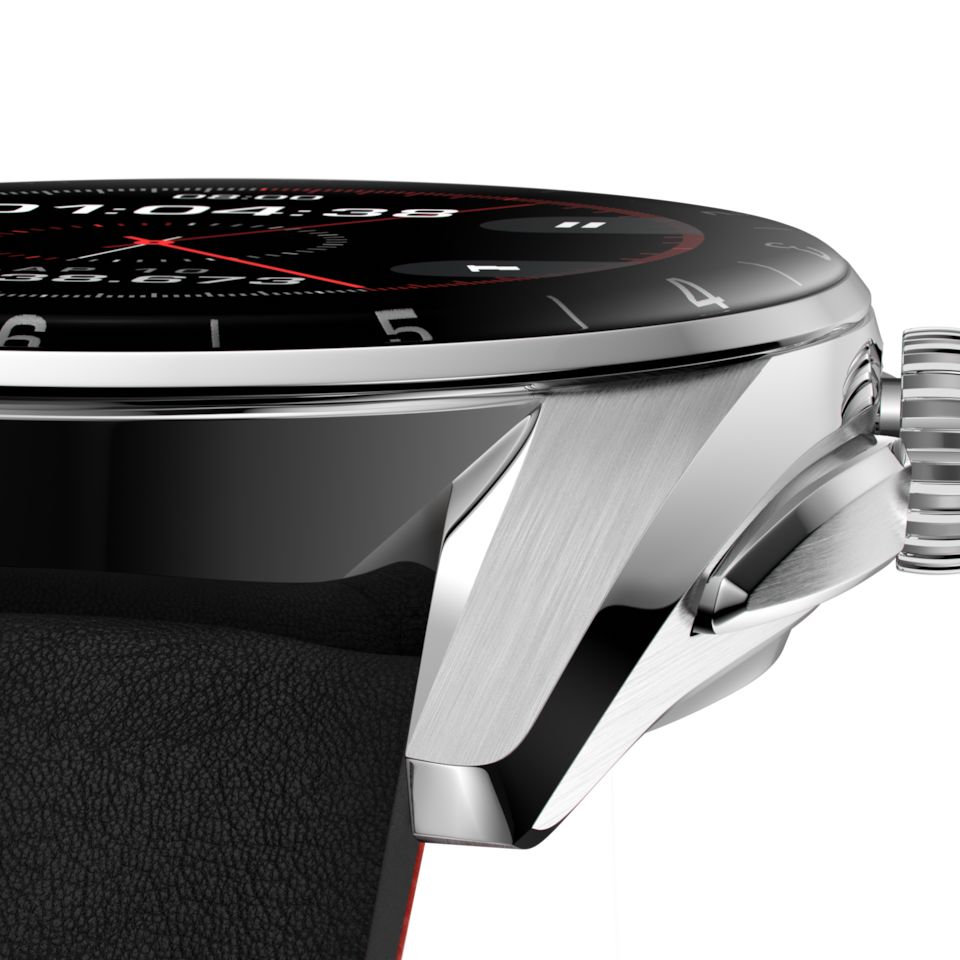

Calibre E4 - 42mm (SBR80)

Bezel is under the glass

Albert-AMG

Thanks! 👍

Yes, of course Gen2 Modular is also my favourite. Being the only Modular (with available mechanical modules) and the only Swiss Made generation makes it unique, together with a very personal and distinctive design.

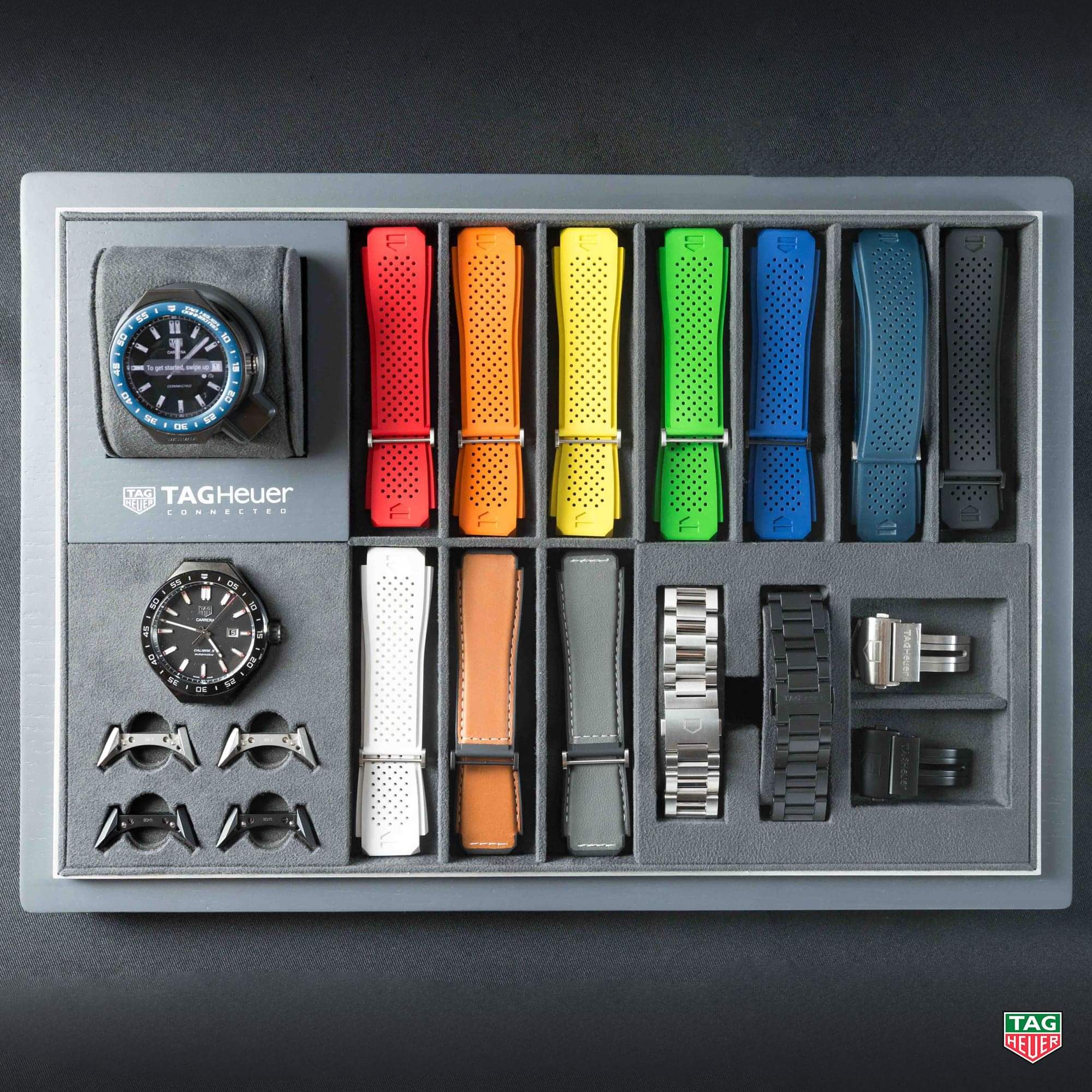

It’s also the generation with more available straps and bracelets, with more Special and Limited Editions, with more customization options (many different bezels, four different types of lugs)…

so TAG Heuer really invested in this generation, the last one under JC Biver management


Totally agree 👍

neowatch

Perfect info , I’m still loving the E2 concept. You also have the calibre 5 module for the E2 41mm

Albert-AMG

Yes, I forgot the mechanical module for E2 Modular 41. Post is edited to include it, thanks! 👍

PaulN360

Hi All,

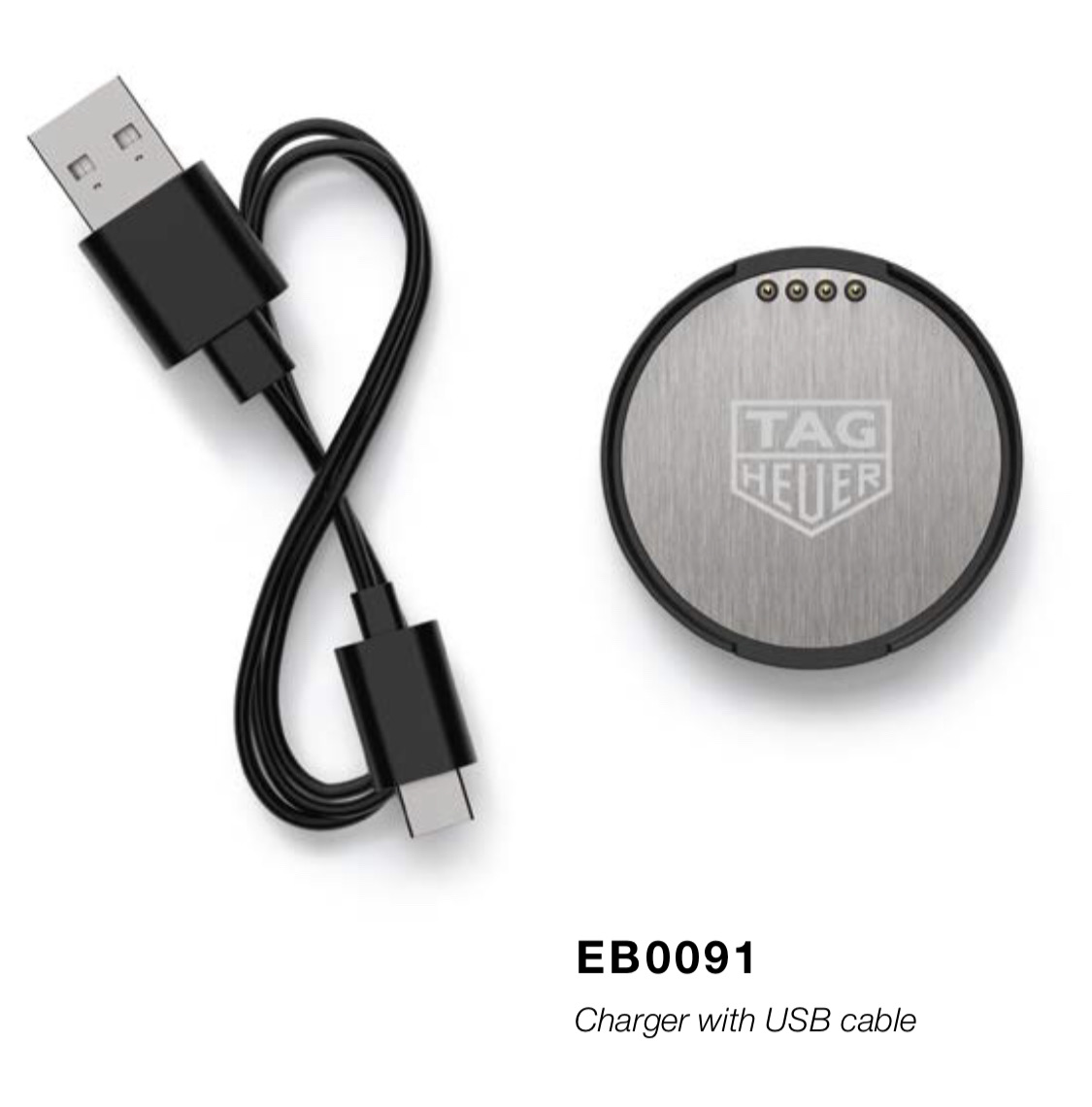

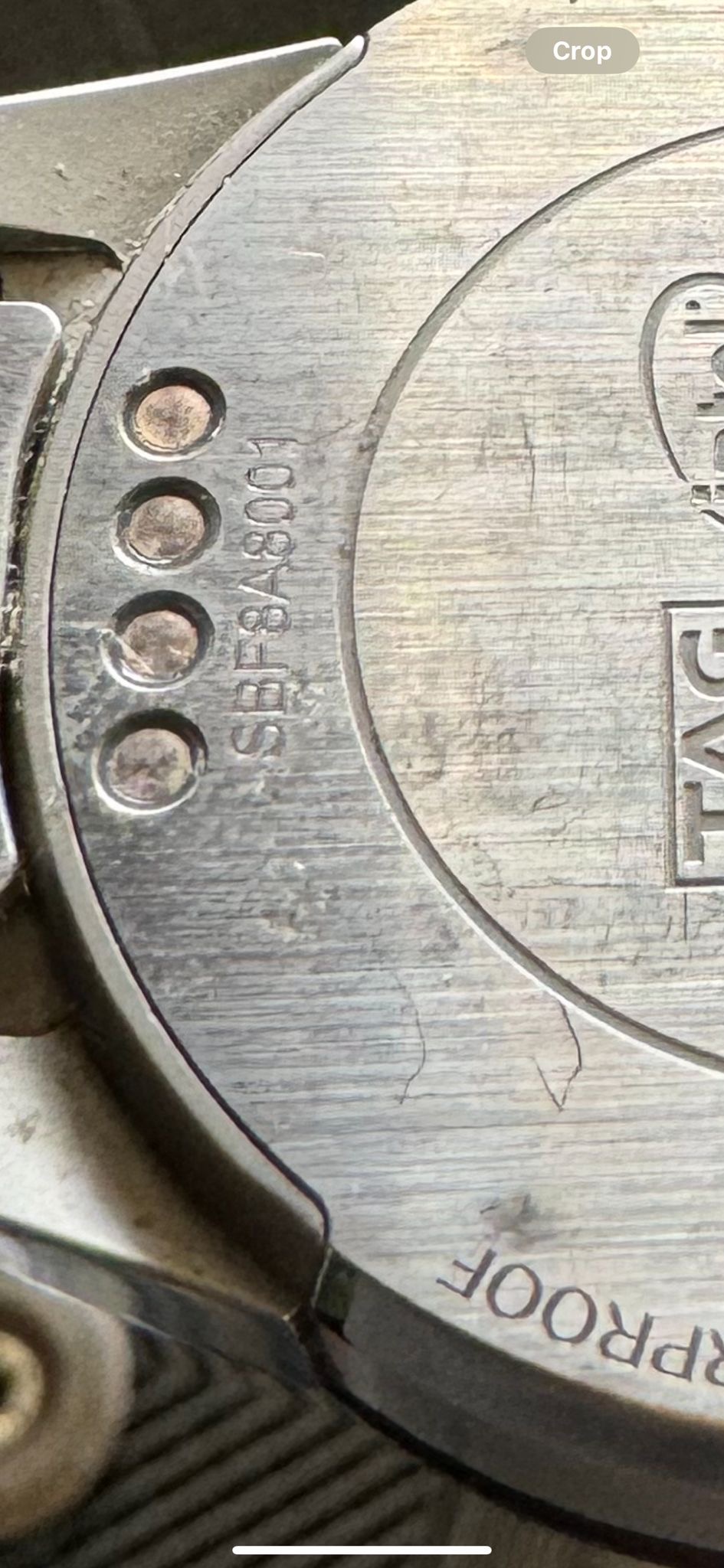

My mate has an Old Connect and need to buy a replacement charging puck. I think it’s the Gen2 he said Gen1….

Can you guys confirm and always any good replacement Pucks forsale…. EBay do aftermarket.
