Connected E1 screen 46

connected1976
Posts
2,456
Likes
9,344
Hello there !!!! my poor connected has stopped working .... the problem has been the screen, does anyone know where to buy a replacement?
Or some user of the forum with some 46 connected, that does not work for him, he would sell it for parts Thank you !!!!!

Albert-AMG
Posts
5,903
Likes
15,850
😲
I’m sorry!

Time to look for a nice Gen2 Modular 45! 😉

connected1976
Posts
2,456
Likes
9,344
thank Albert !!

Yes it would be fine but after race 01, maybe a spare for the connected is fine ......jijijiji 😗

I have disassembled it and it is very easy to change .. I would only need the correct screen

neowatch
Posts
256
Likes
243
connected1976 connected1976
Hello there !!!! my poor connected has stopped working .... the problem has been the screen, does anyone know where to buy a replacement?
Or some user of the forum with some 46 connected, that does not work for him, he would sell it for parts Thank you !!!!!
WHAT … did this just happen , we were only talking about battery life an hour ago ?

connected1976
Posts
2,456
Likes
9,344
yes ... this morning he died, I have to get it fixed it started with horozontal stripes at the bottom and ended up turning off, the notifications keep coming. ::facepalm1::

neowatch
Posts
256
Likes
243
connected1976 connected1976
yes ... this morning he died, I have to get it fixed it started with horozontal stripes at the bottom and ended up turning off, the notifications keep coming. ::facepalm1::
I’ve a LG urbane 2 which did exactly the same last week, but after a while it came back on, but I’m not hopeful.
The gen 1 is a nice watch to wear, it’s the best of all for wearing outdoors.
Try and get one off eBay for a few hundred.

neowatch
Posts
256
Likes
243
connected1976 connected1976
yes ... this morning he died, I have to get it fixed it started with horozontal stripes at the bottom and ended up turning off, the notifications keep coming. ::facepalm1::
Can you remember if anything strange happened the morning it failed, were you charging it at the time ? Did the battery get hot ? Did battery run down to zero night before etc etc anything unusual at all ?

connected1976
Posts
2,456
Likes
9,344

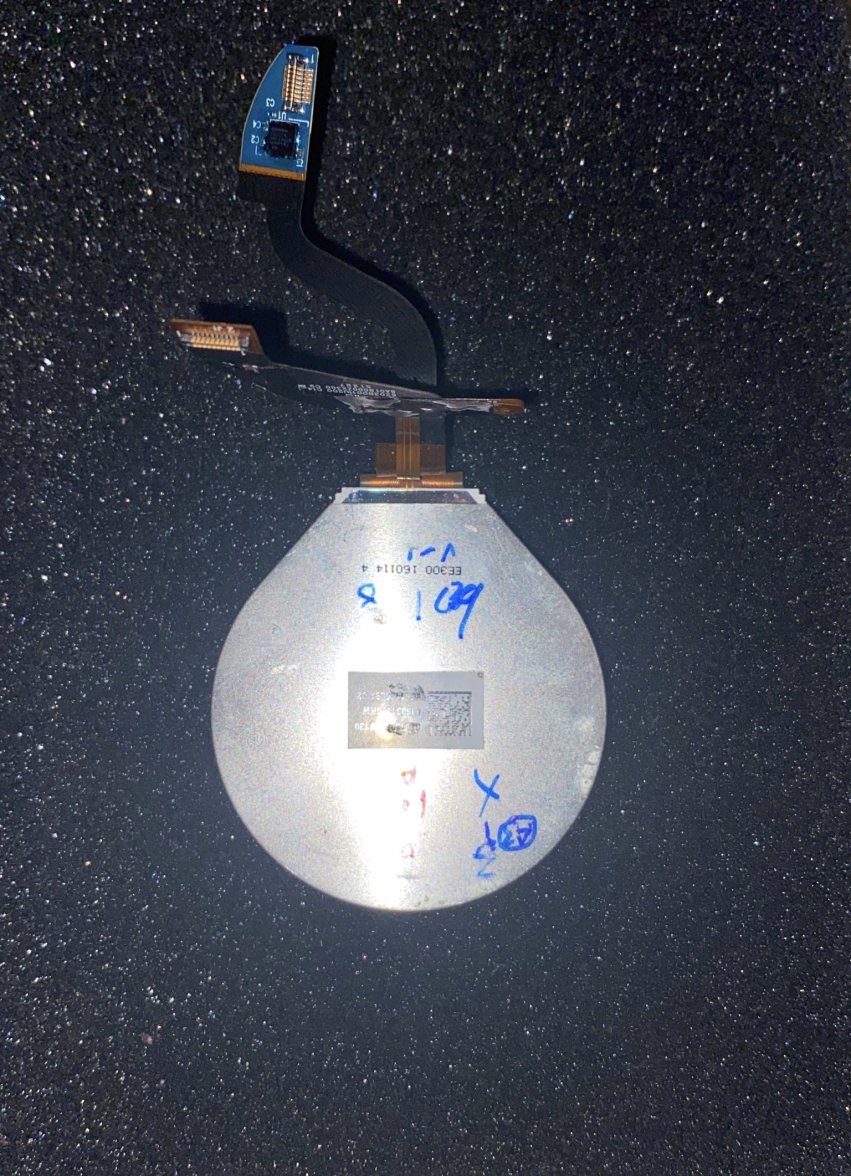

It did nothing weird, it just turned off, it was not charging the watch I have managed to find my watch screen !! ::psy::


neowatch
Posts
256
Likes
243
Wow that’s amazing, where did u get it from ? Quite easy to install ? From supplier or an old watch ?

connected1976
Posts
2,456
Likes
9,344

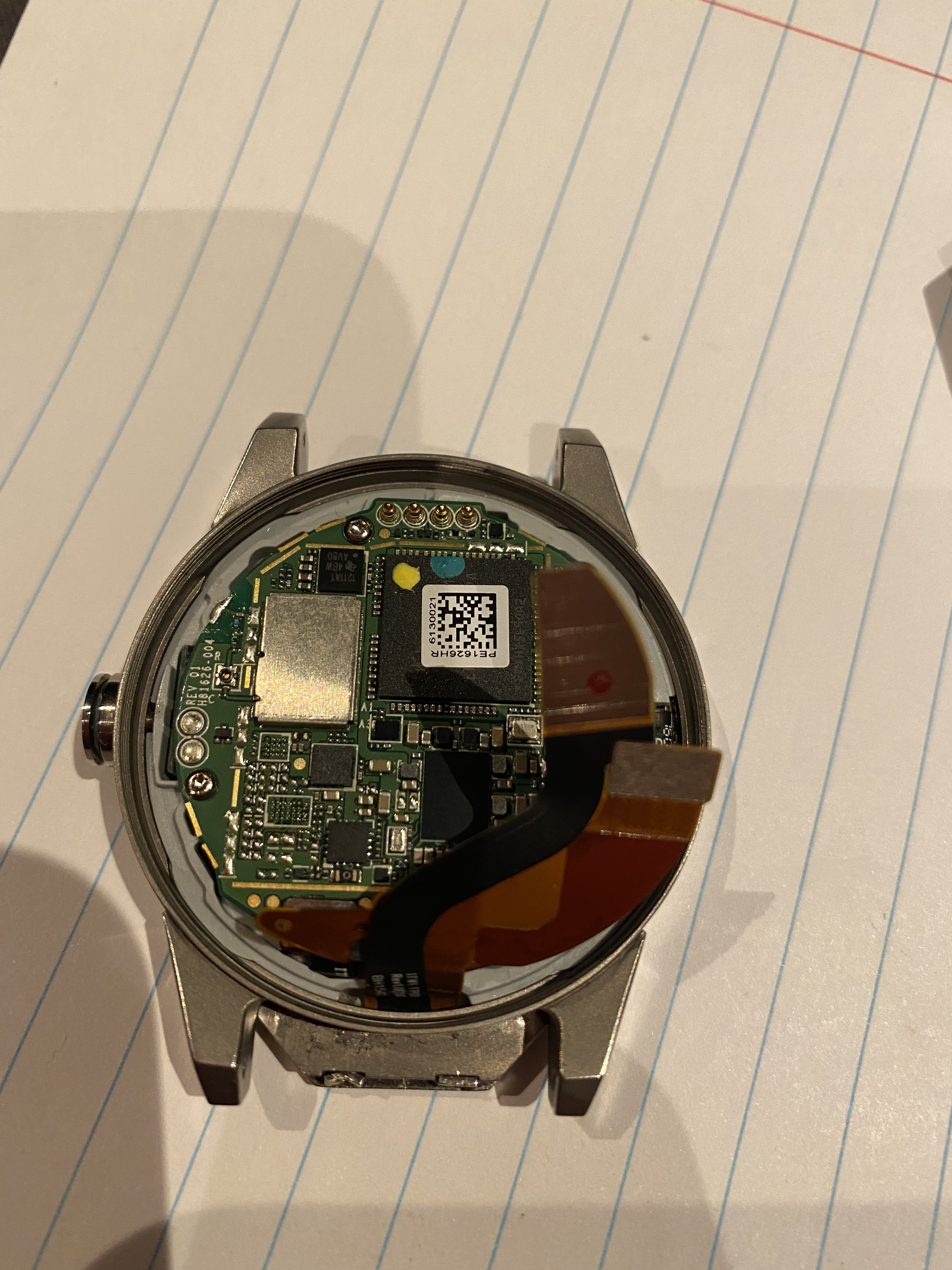

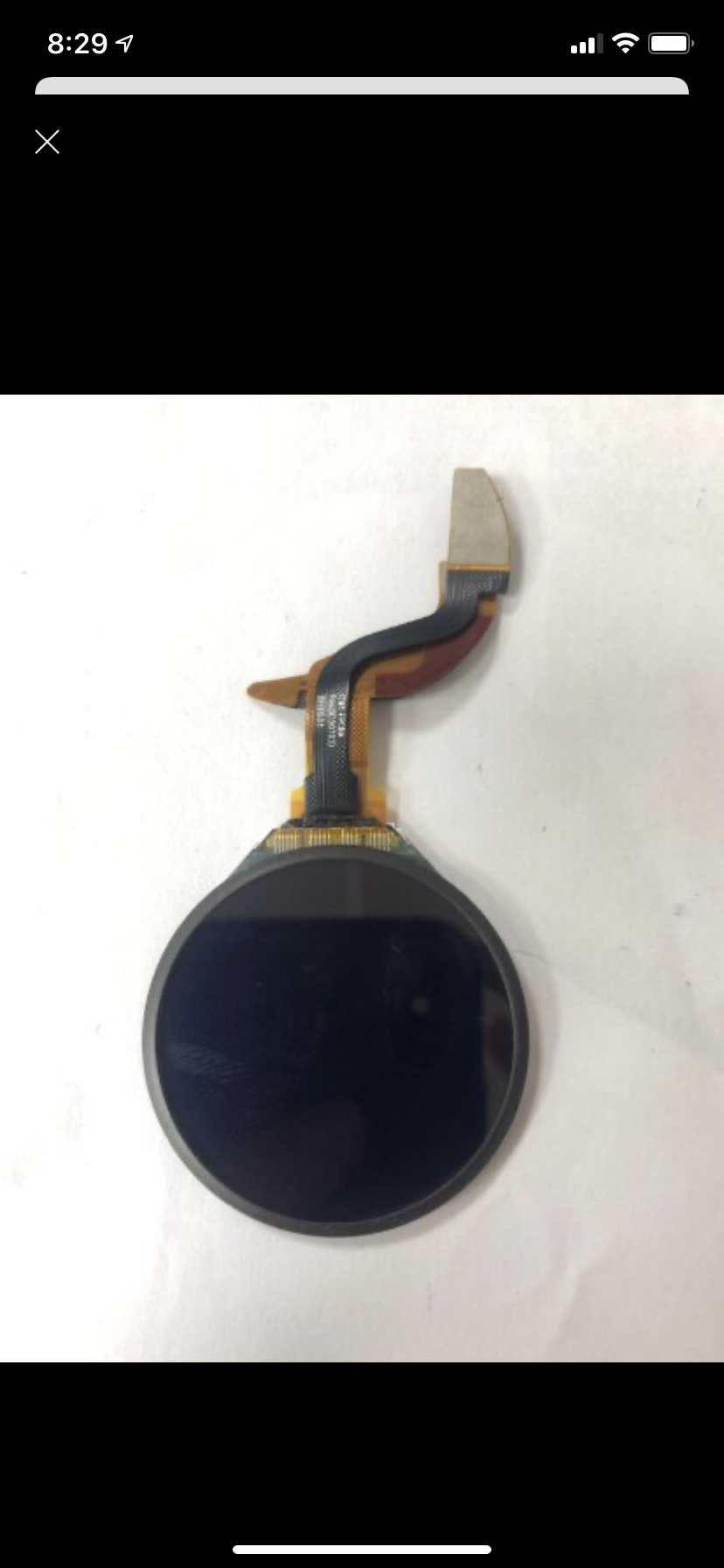

I found it on aliexpress !! I asked a screen seller, he asked me for reference number and watch model I confirm that he had it and he sent me photos, it is the same as the one on our watch Changing it is extremely easy, I have the clock disassembled, remove the old one with two connectors and place the new one, you have to remove the base plate of the clock to insert the cables, it has 3 screws

neowatch
Posts
256
Likes
243
Great to know, if you can pass me exact part number , I will order 1 as a spare. How much did it cost ?

connected1976
Posts
2,456
Likes
9,344

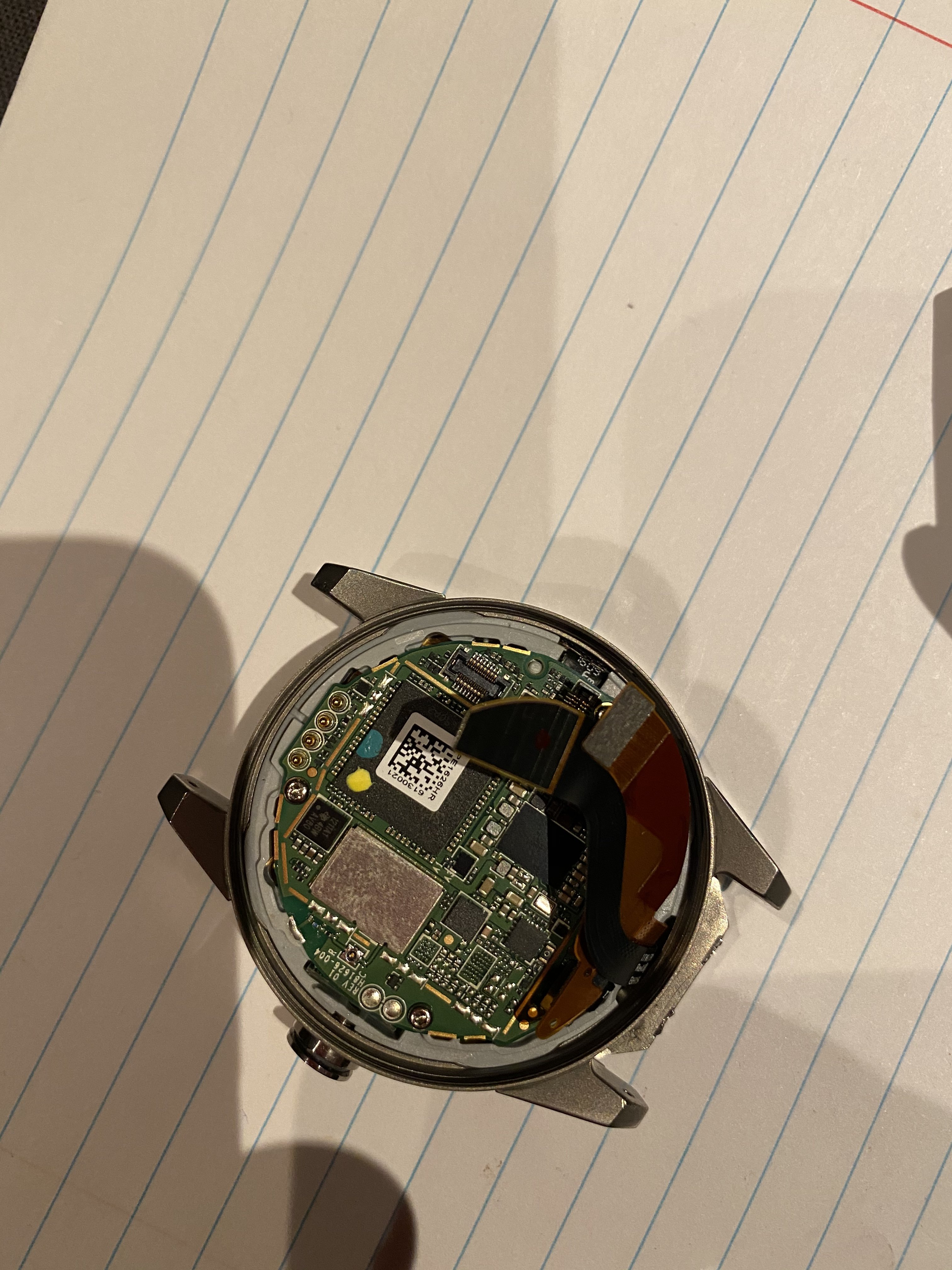

It cost me € 57, I have ginned mine and there is not even to remove the screws, I have pressed a little to be able to make enough space to remove the connections without disassembling anything

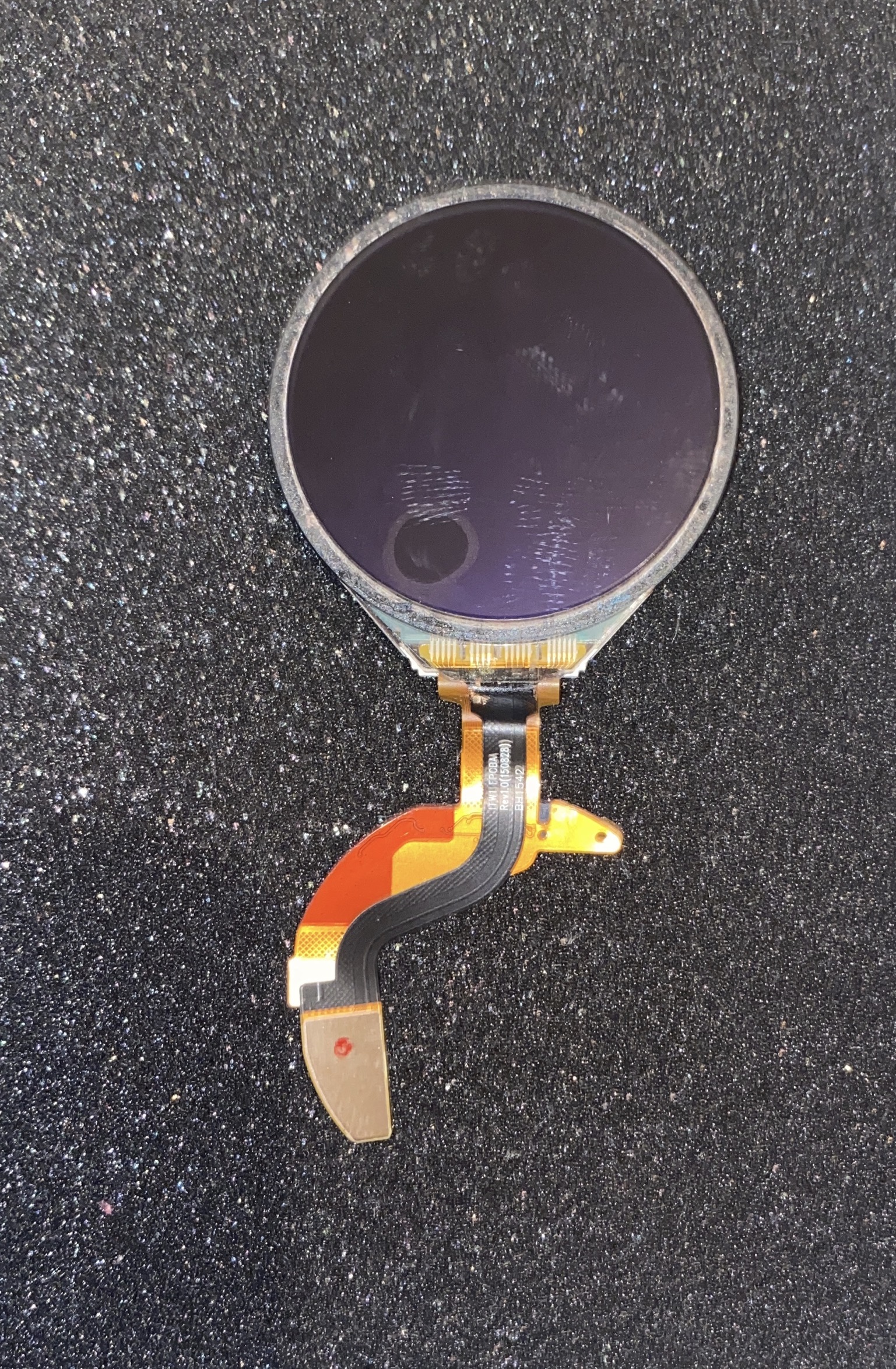

5827FC16-5915-4945-B0F5-2AB6E62CAE29.jpeg 660666E6-BDCB-4A12-9443-8BA5B1910BB7.jpeg

S
Posts
33
Likes
12
hi - can u send me details of where u got this screen - i need one for my 41mm

connected1976
Posts
2,456
Likes
9,344
Hello !!!

I'll give you the aliexpress link where I got the screen, see if you're lucky, by 46 I didn't have any more screens, let's see if by 41 it has... good luck

ZHIPU 3C Store
https://a.aliexpress.com/_EvZbso7

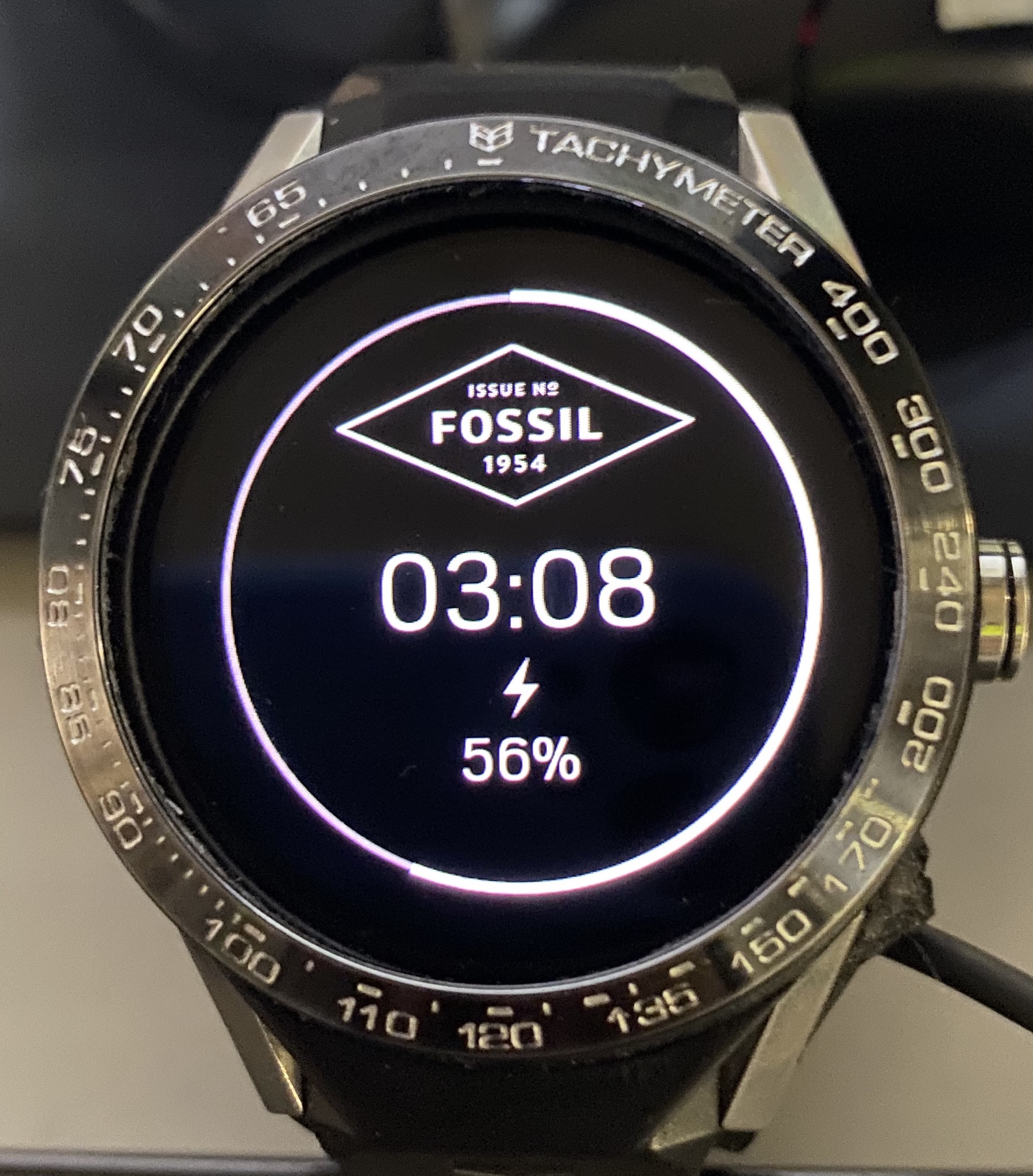

Another option is to place another smart watch inside your 41 box... I did it with one of my 46



tag & fossil
