    Dear Heueristi,

    It's been a while since I posted some kind of restoration project on a website. A lot of collectors kept on asking to post some restoration projects again...so here we go ;-)

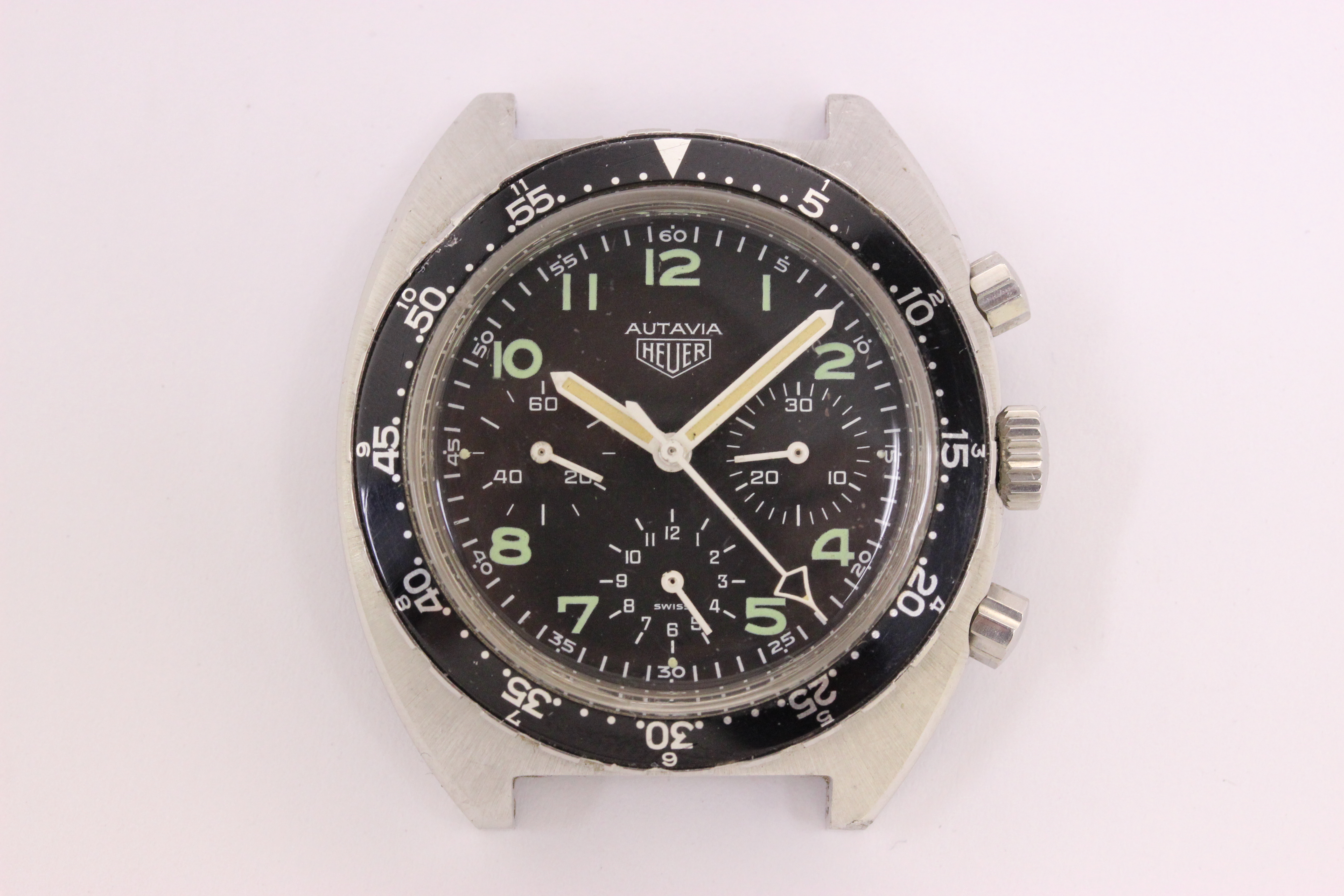

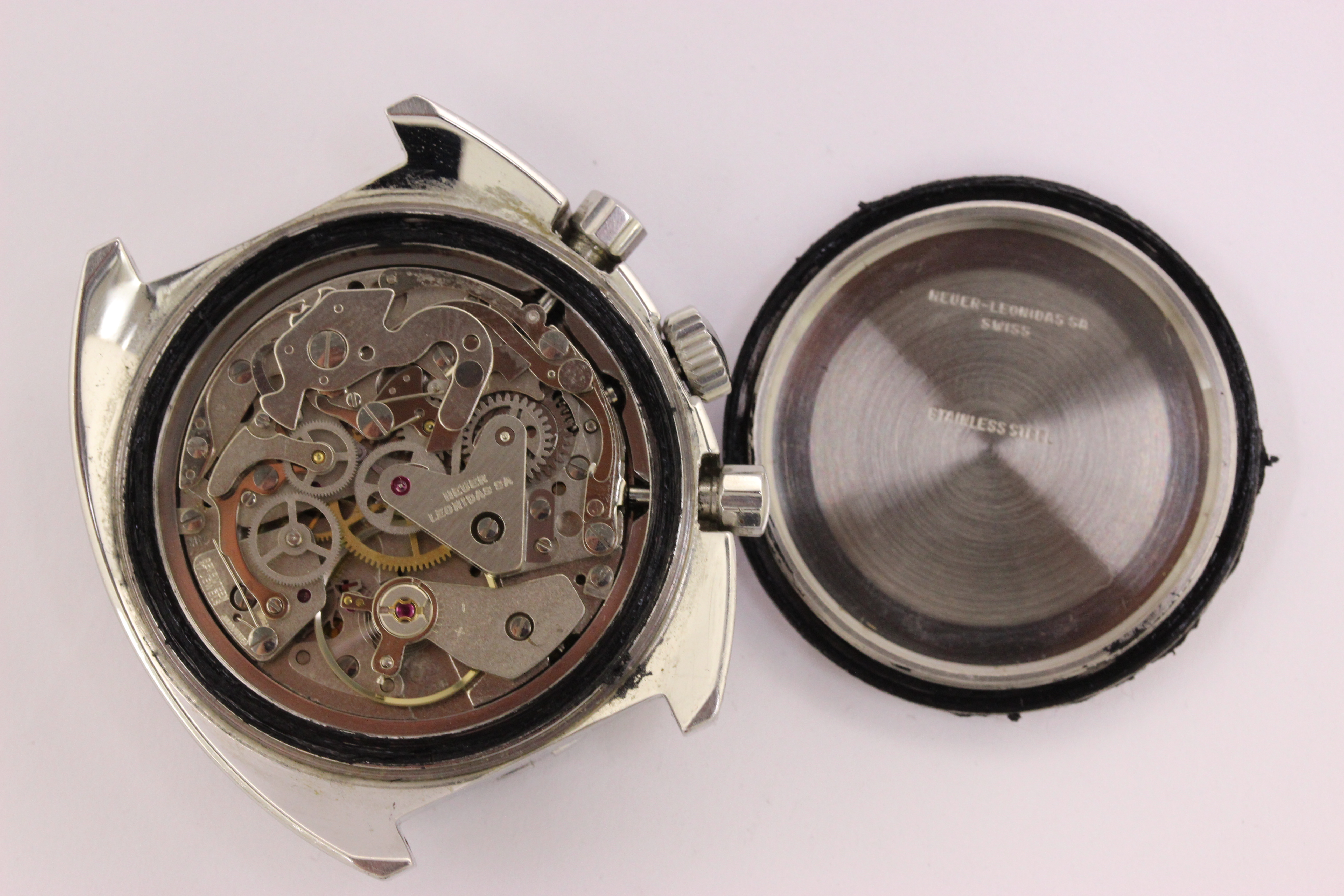

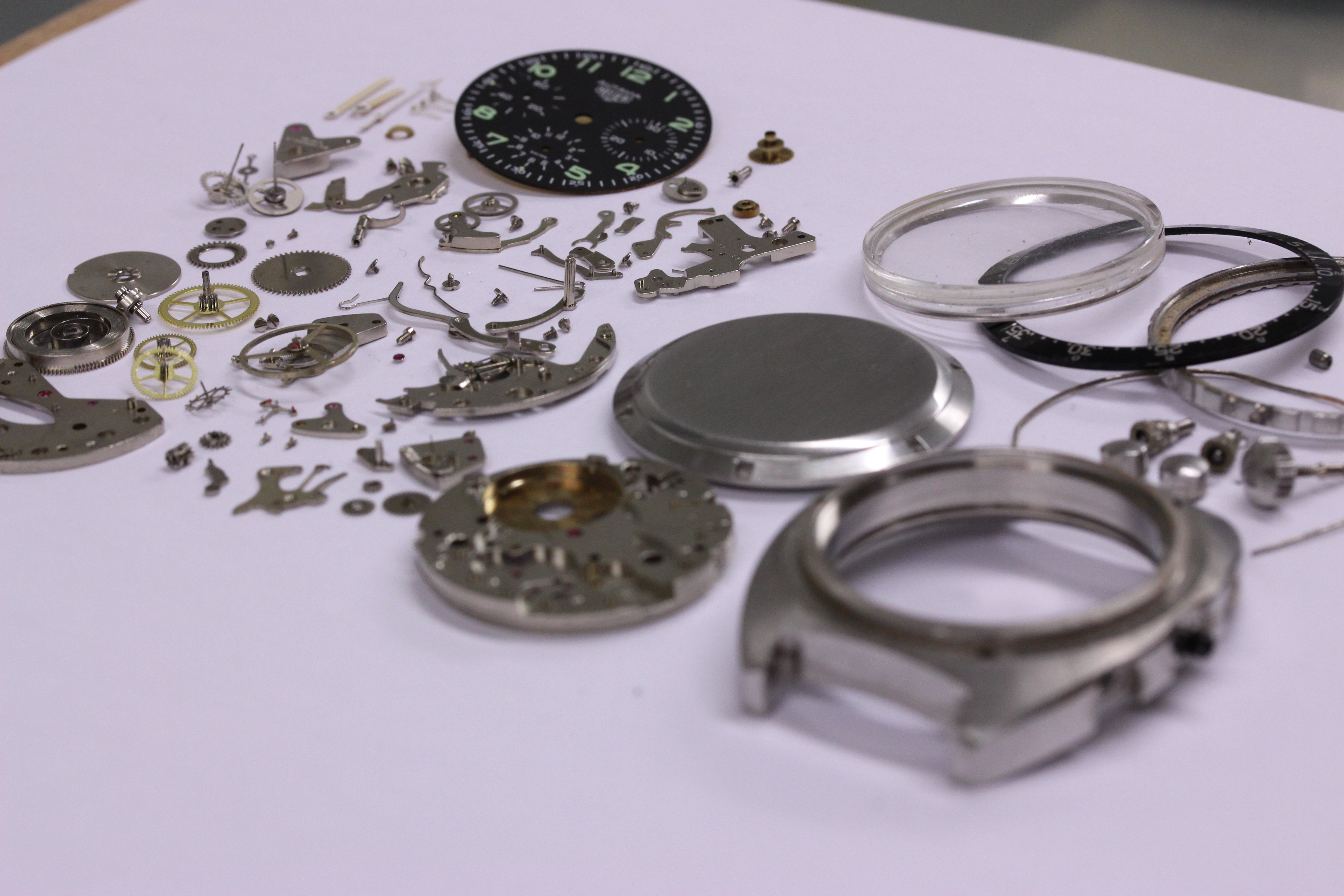

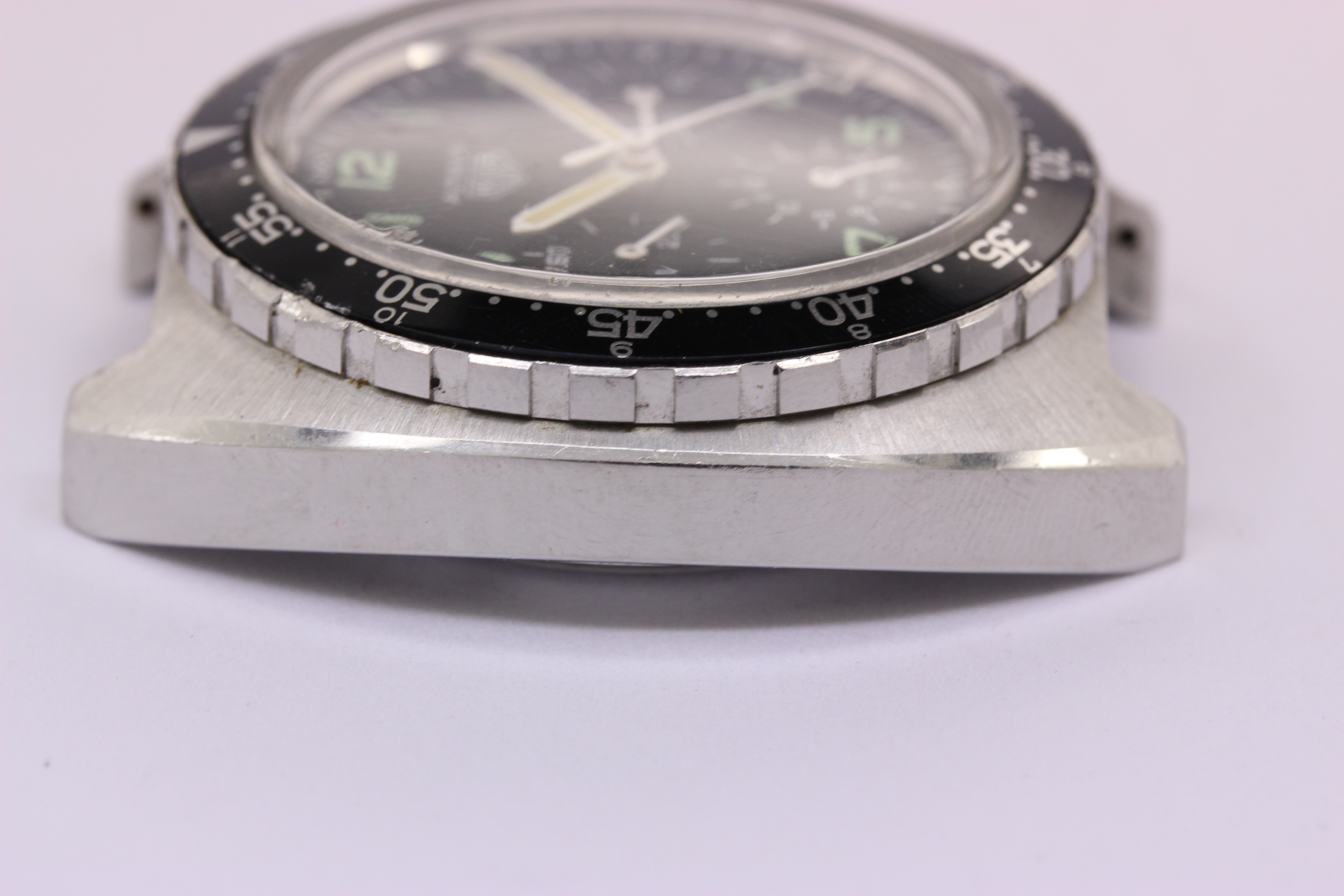

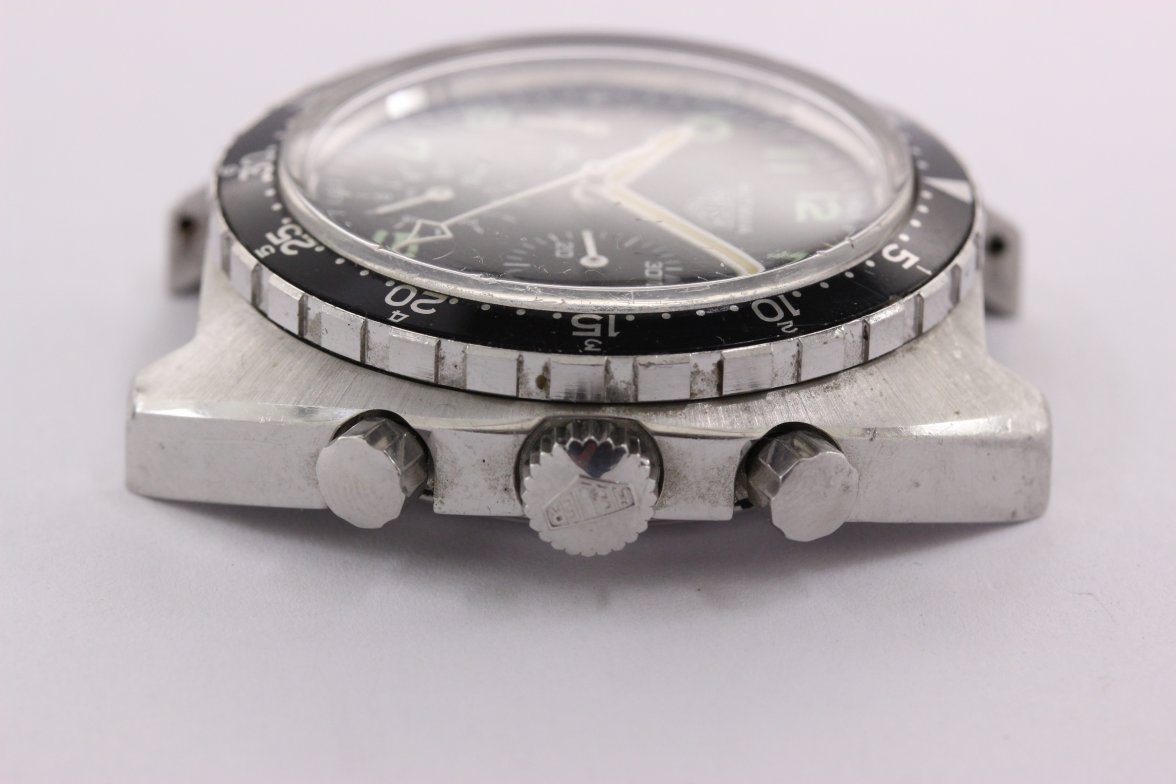

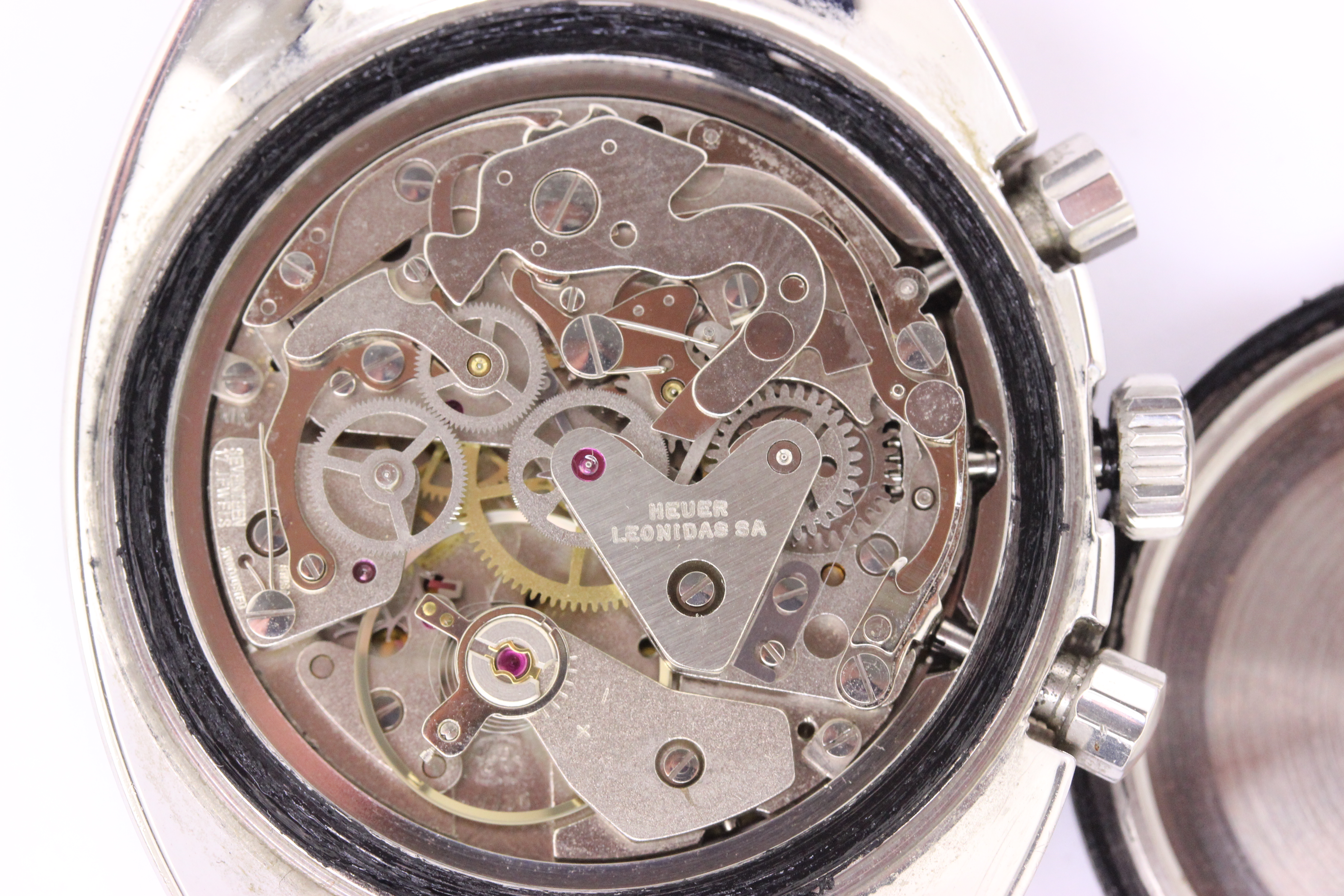

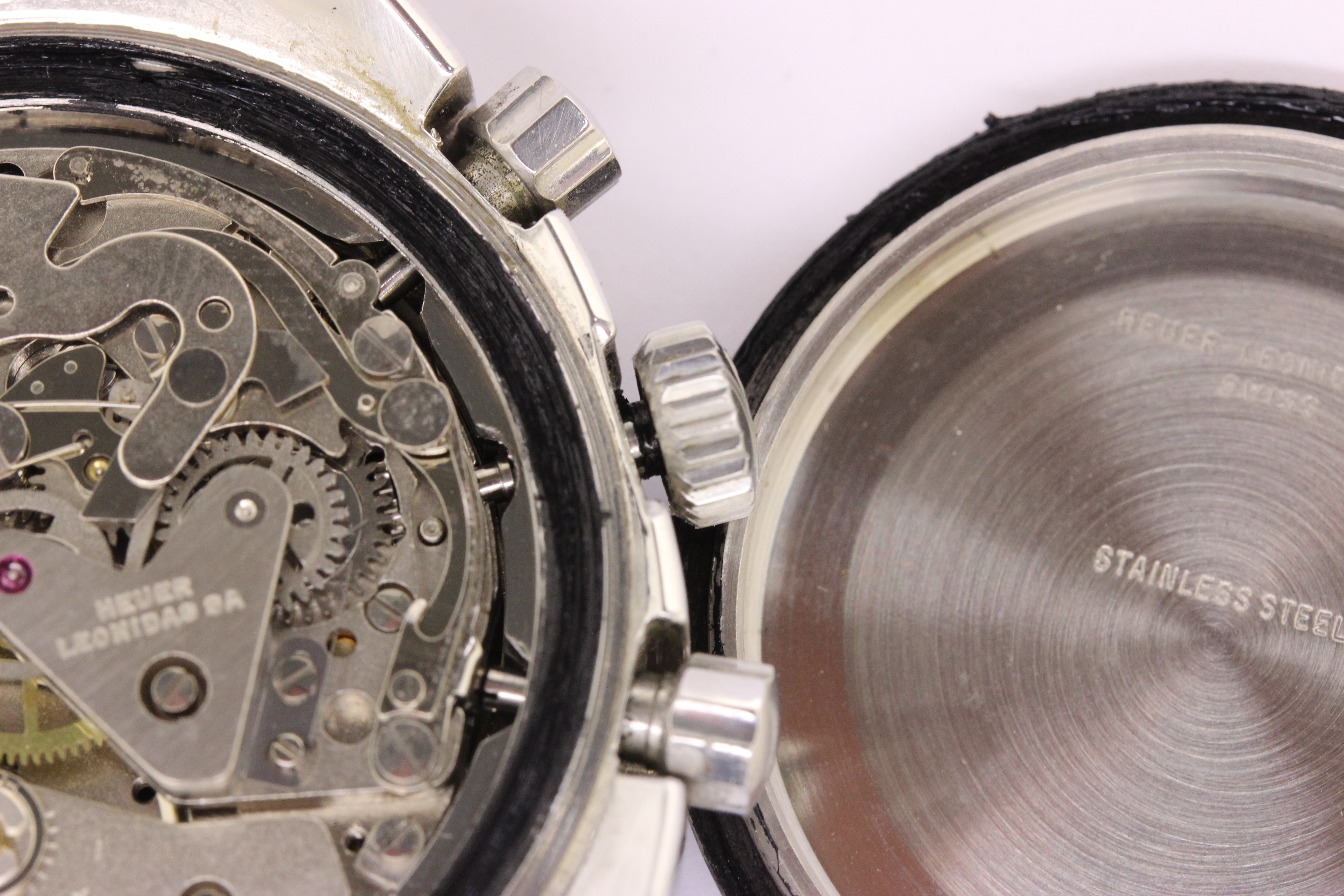

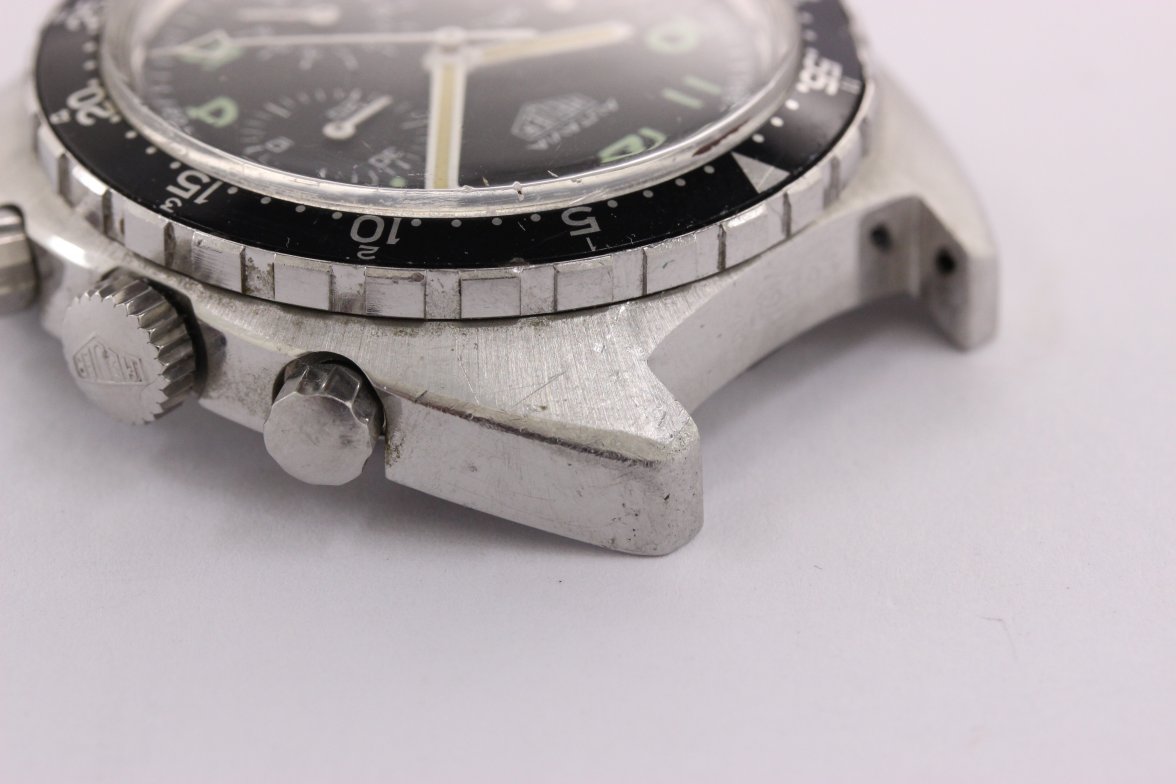

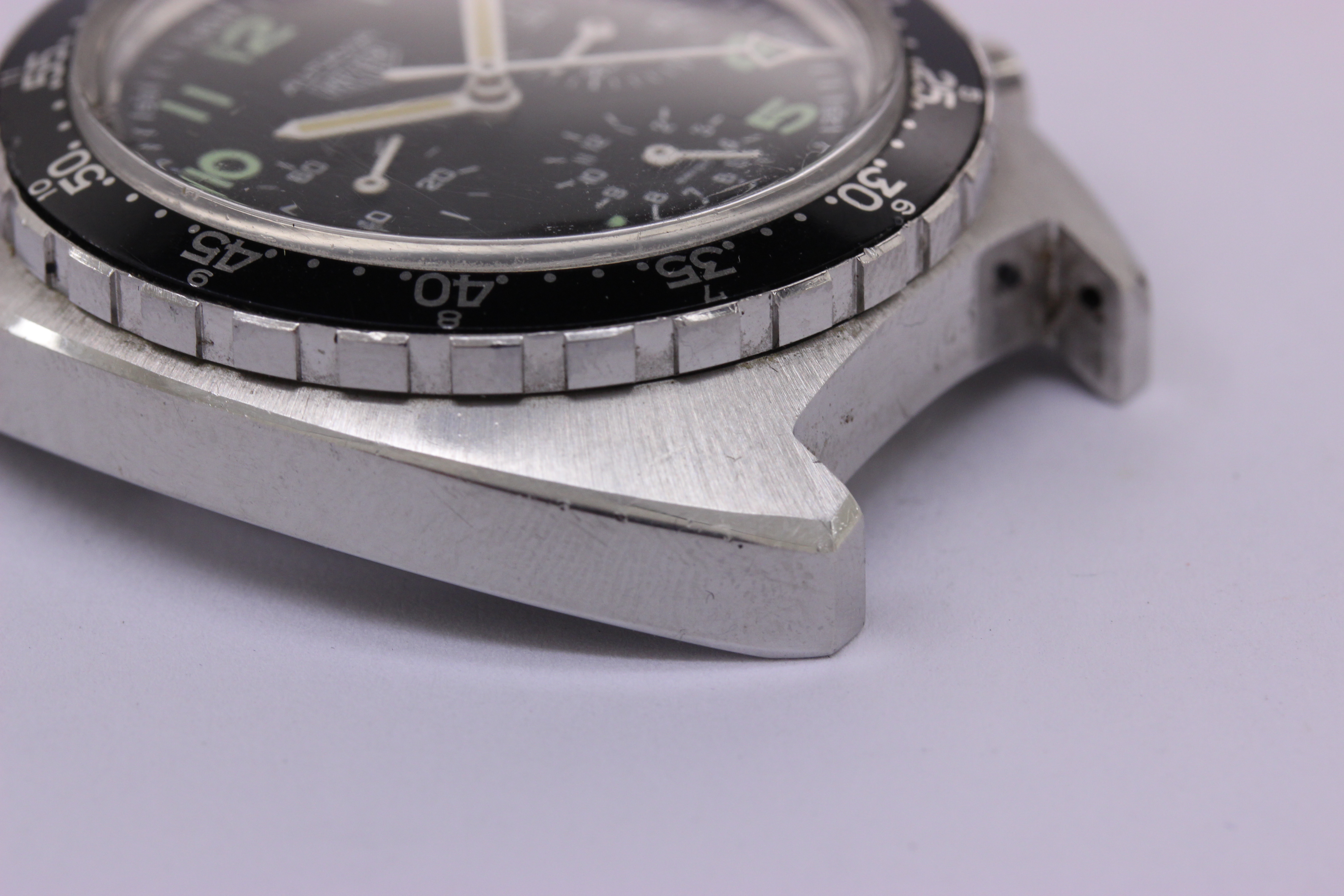

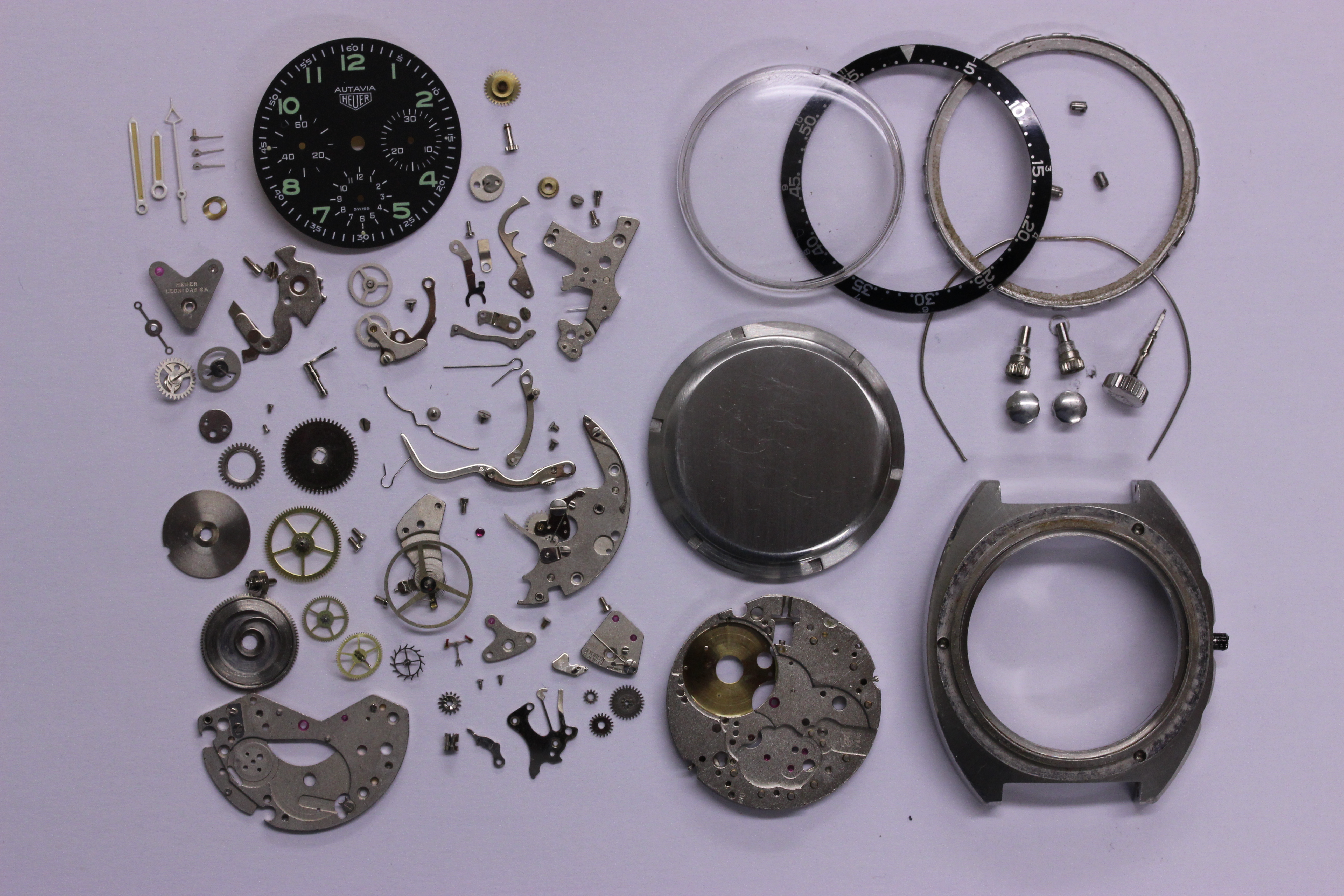

    Up for restoration is a Heuer Autavia ref.73663 "Arabic Bund". A rather rare execution, very specific dial. Here will first follow a series of pictures from the watch like I received it. And also some pics of the watch completely disassembled...just before the movement service and case refurbish.


    IMG_9563.JPG IMG_9564.JPG IMG_9565.JPG IMG_9568.JPG IMG_9569.JPG IMG_9570.JPG IMG_9571.JPG IMG_9574.JPG IMG_9576.JPG IMG_9578.JPG IMG_9579.JPG IMG_9581.JPG IMG_9582.JPG IMG_9585.JPG IMG_9586.JPG IMG_9587.JPG IMG_9590.JPG IMG_9592.JPG IMG_9593.JPG IMG_9597.JPG IMG_9600.JPG IMG_9606.JPG IMG_9607.JPG
    So here it all starts with...update will follow in one of the next days.

    Best,
    abel.

    AussieAlex, dsio and Calibre11 like this.
  2. Calibre11

    Calibre11 Editor of Calibre11.com Staff Member Dec 10, 2014

    Posts
    7,121
    Likes
    15,029
    Fantastic Abel- thanks for these great pics.
    - Why do you completely disassemble the movement? Is this for Ultra-sonic cleaning?

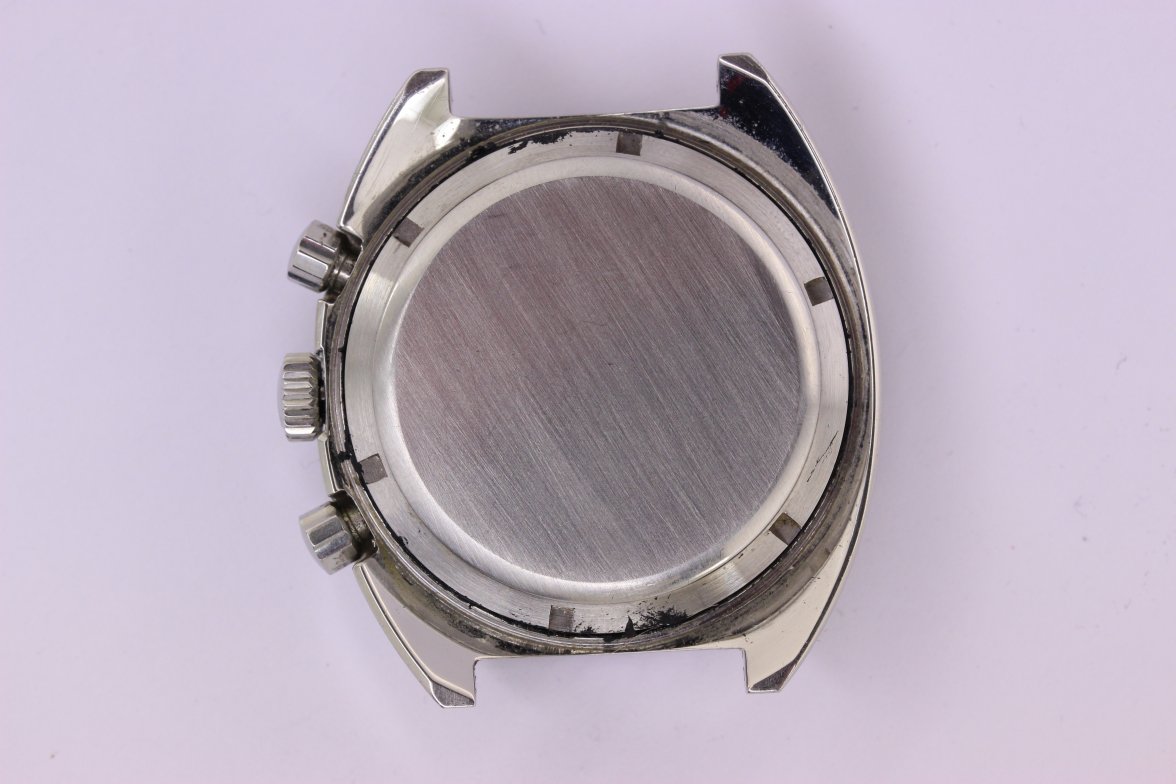

    - The two photos at the bottom showing the case- is this before any work on the case, or have you already started to restore the case?

    dc

  3. dsio

    dsio Ash @ ΩF Staff Member Dec 10, 2014

    Posts
    26,754
    Likes
    32,469
    Those are some amazing shots especially the complete deconstruction photos, can't wait to see it when its done as it honestly doesn't look too bad to begin with, great dial btw

  4. Calibre11

    Calibre11 Editor of Calibre11.com Staff Member Dec 10, 2014

    Posts
    7,121
    Likes
    15,029

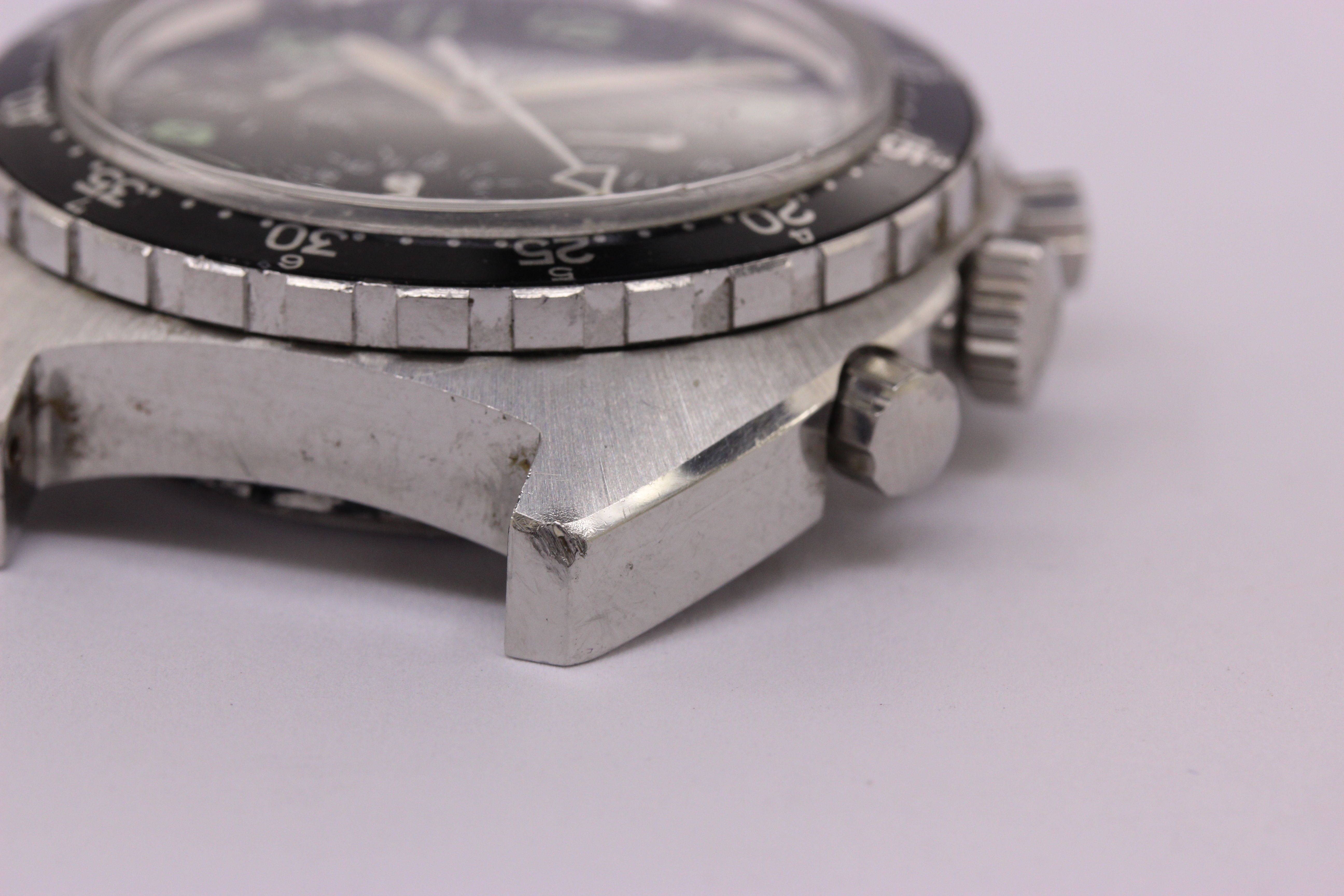

    Yes, agree. The bezel looks OK (actually, pretty good except for the ding at about 10.30) and nice original patina on the hands. Case is a bit rough and crystal as well. I remember going through this exercise with Abel when he worked on my Autavia...what to change and what to accept "as nature intended"!

  5. step_hent

    step_hent Dec 11, 2014

    Posts
    16
    Likes
    3
    Amazing pics, thanks Abel for sharing. I also thought the case didn't look too bad. Can't wait to see the finished piece!

  6. abcoro

    abcoro Dec 11, 2014

    Posts
    74
    Likes
    330

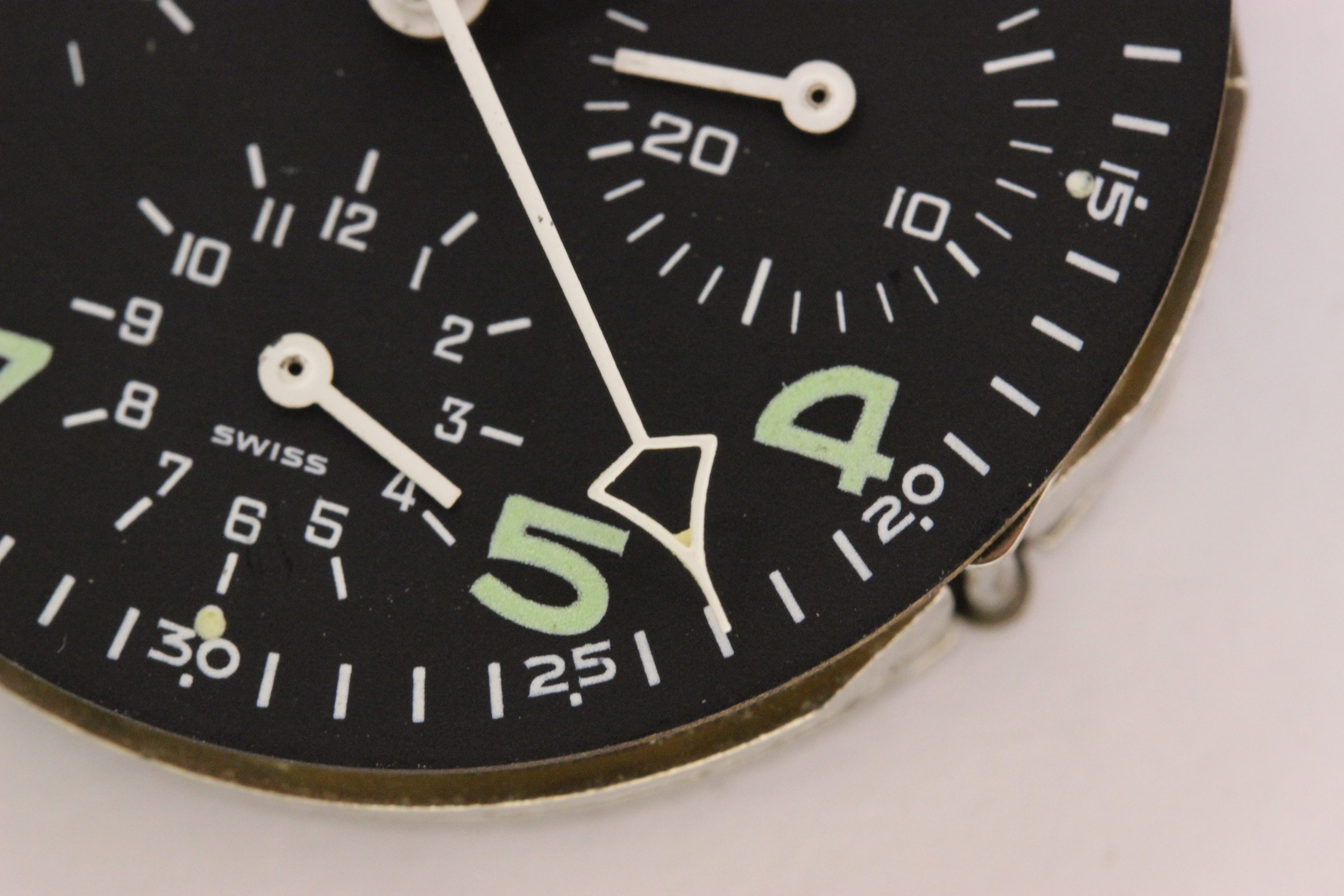

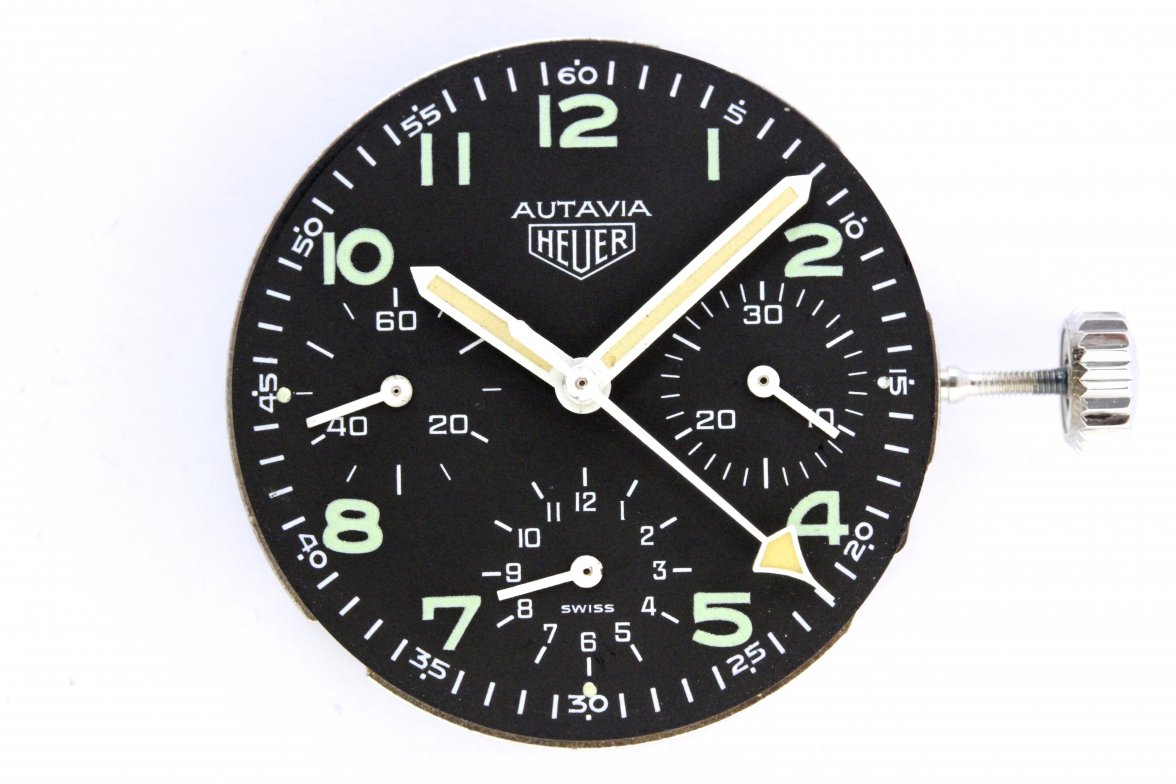

    The dial and central seconds hand is what make this Autavia actually a bit different then most others.

  7. abcoro

    abcoro Dec 11, 2014

    Posts
    74
    Likes
    330

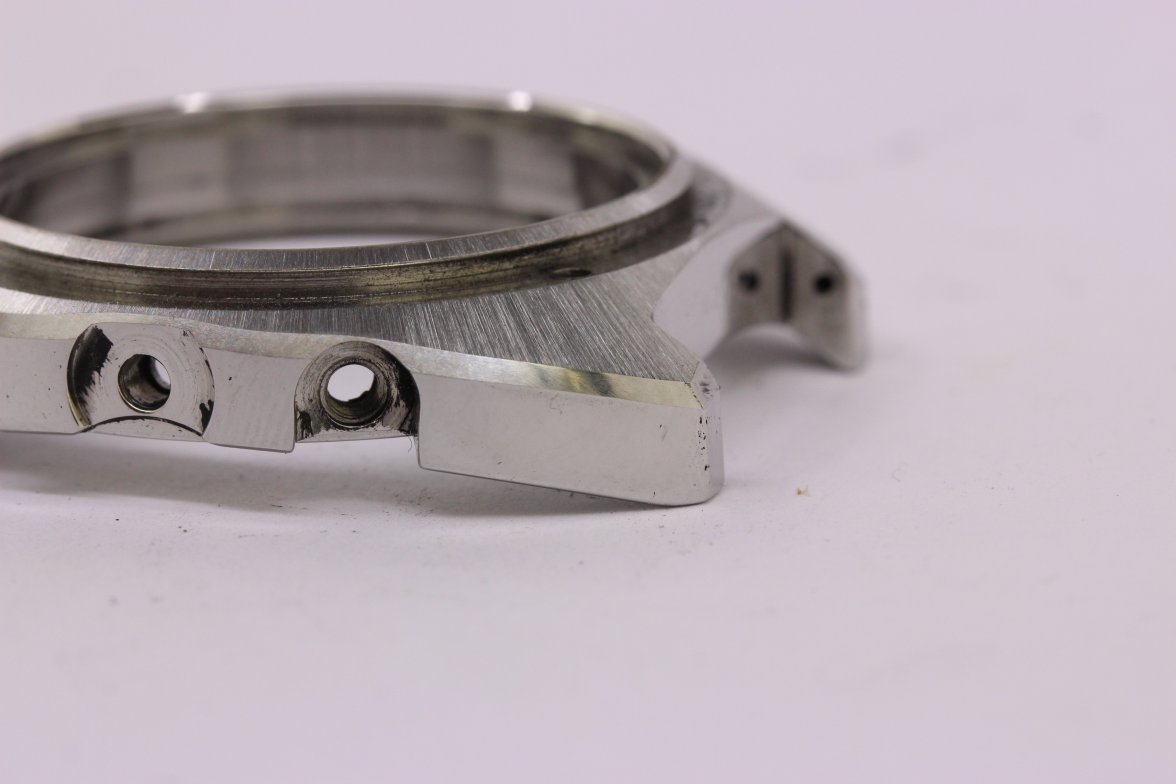

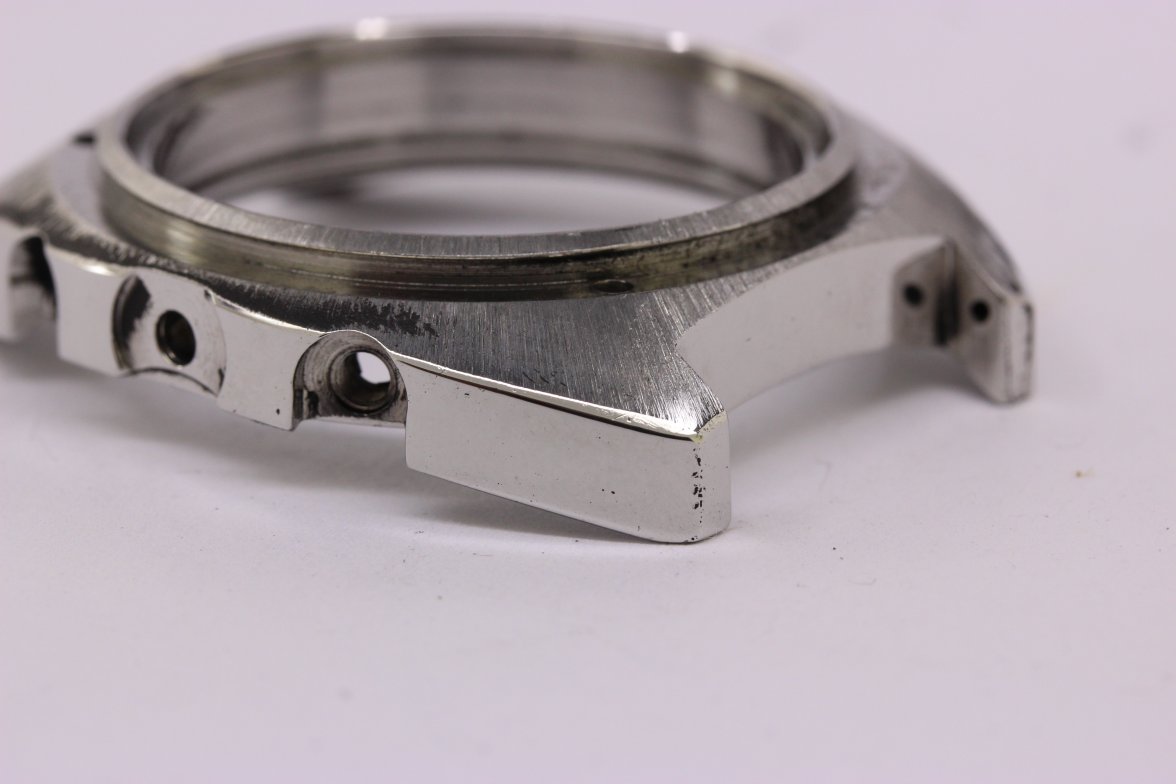

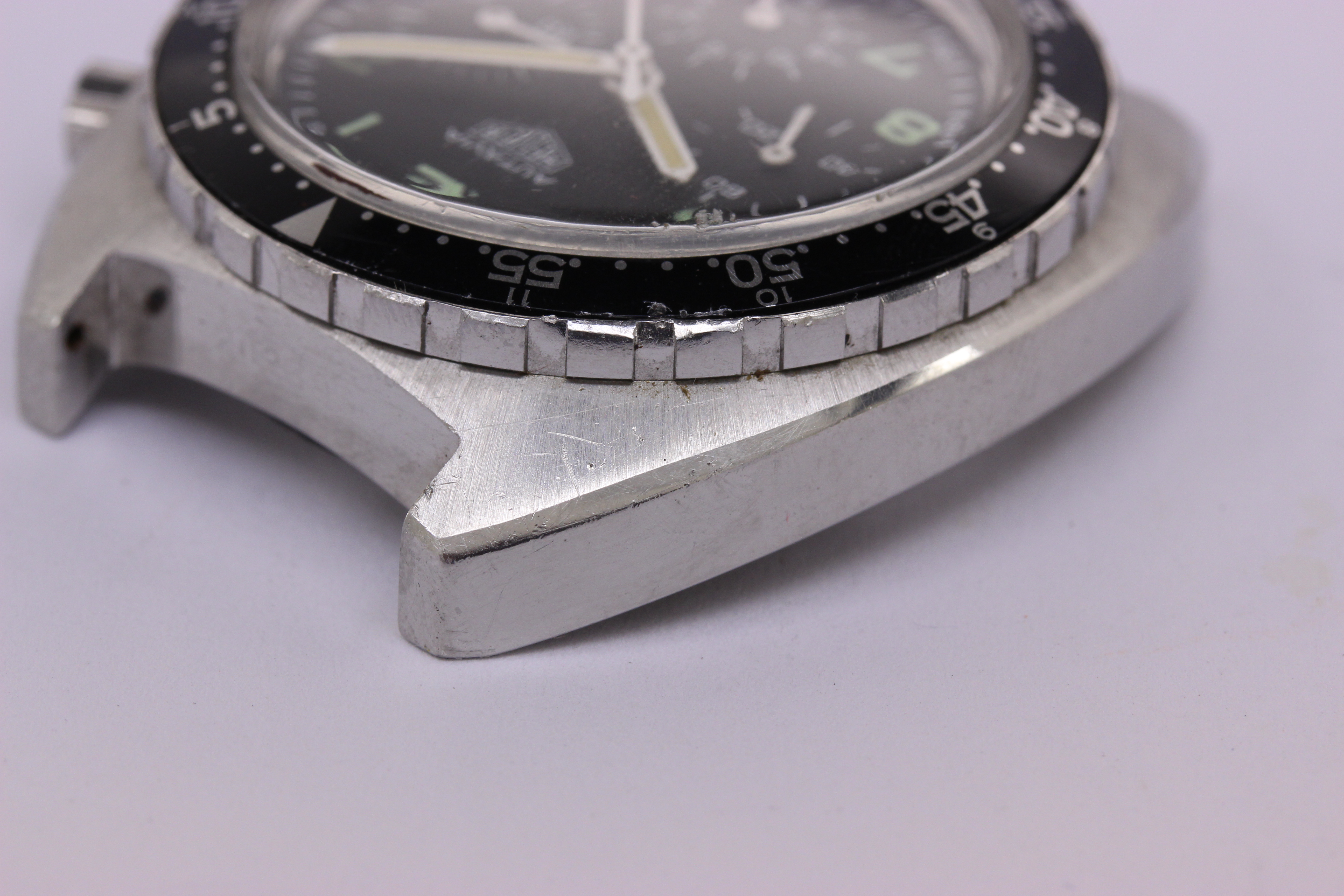

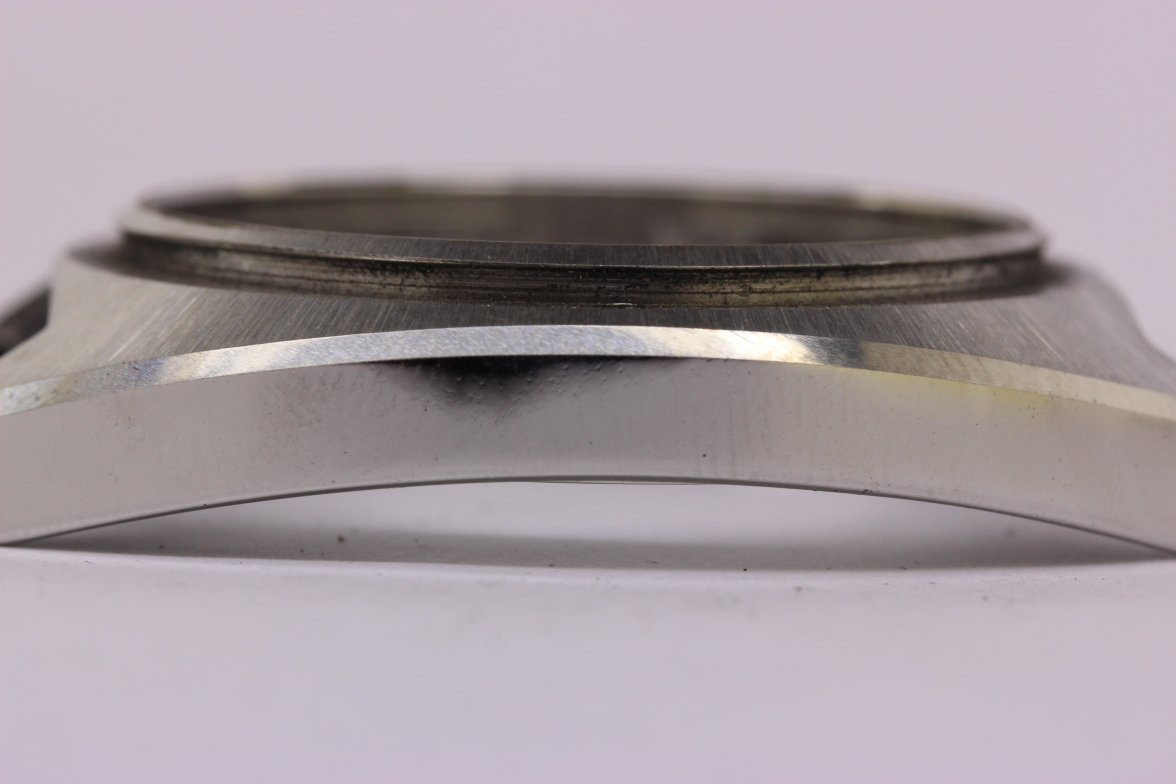

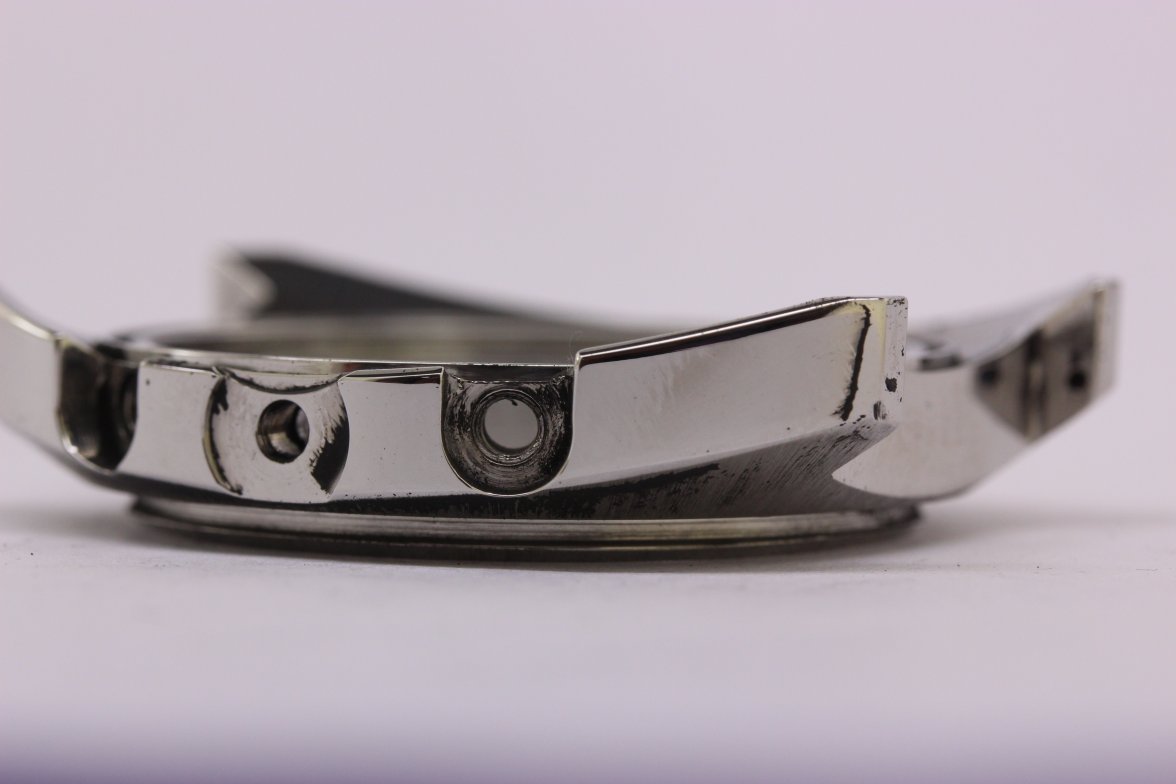

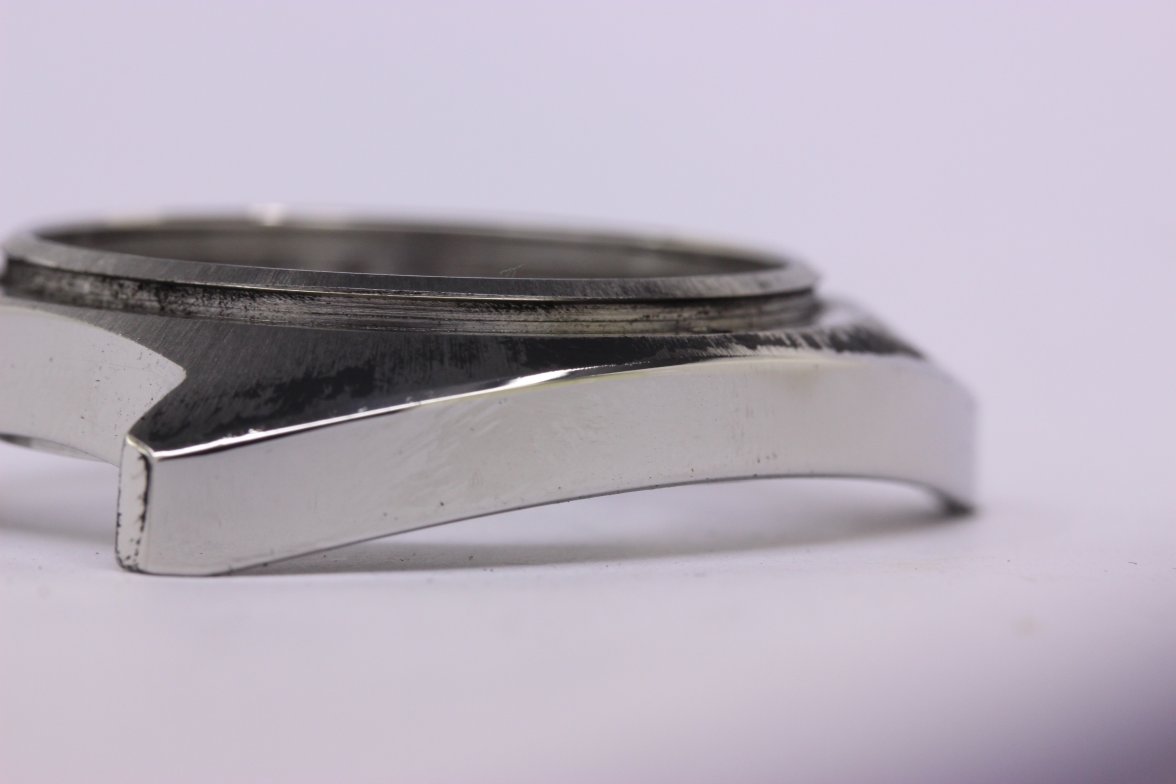

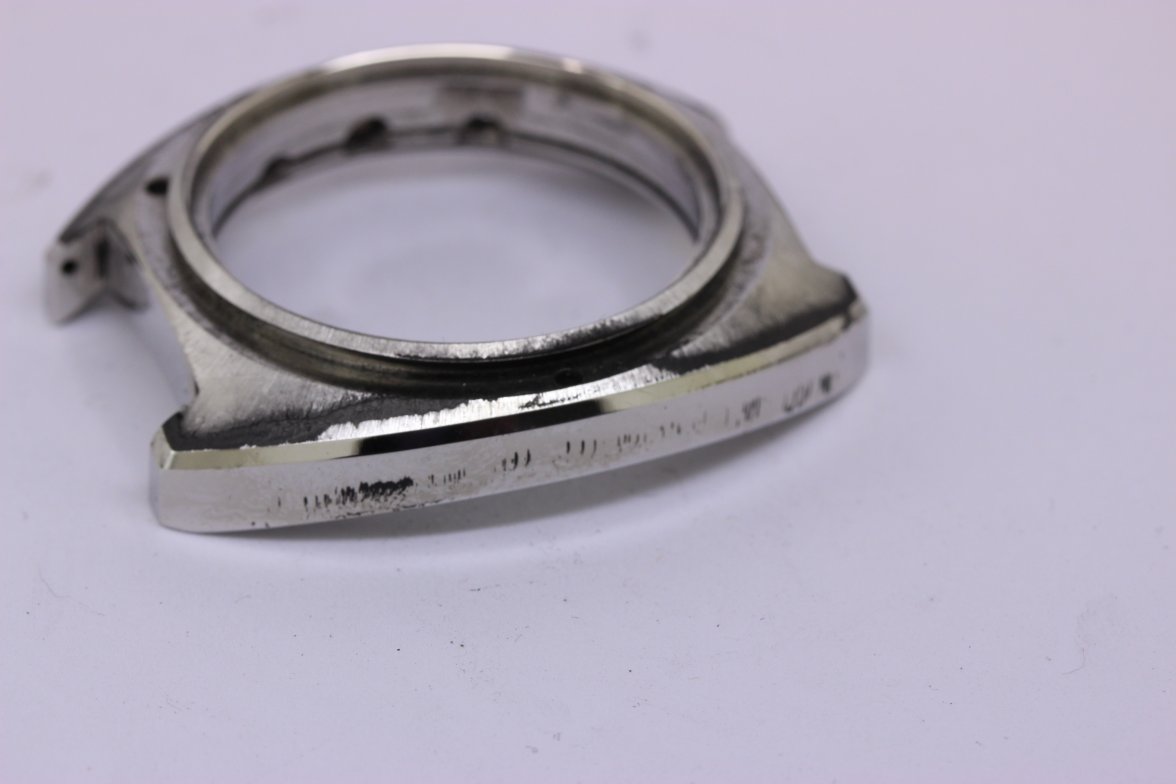

    Hey, yes overall case condition was acceptable. Very disturbing for me personally was that the dial is actually perfect, so I decided to give the case a full refurbish. Also, and this was actually a bit more disturbing for me, again personally, the bevelled edges at both sides were not very nicely and symmetric executed. A "flaw" we regularly can see with these Autavia cases and also with the topscases of our beloved Monaco's. This flaw you can clearly see in the detailed pictures.

  8. abcoro

    abcoro Dec 11, 2014

    Posts
    74
    Likes
    330

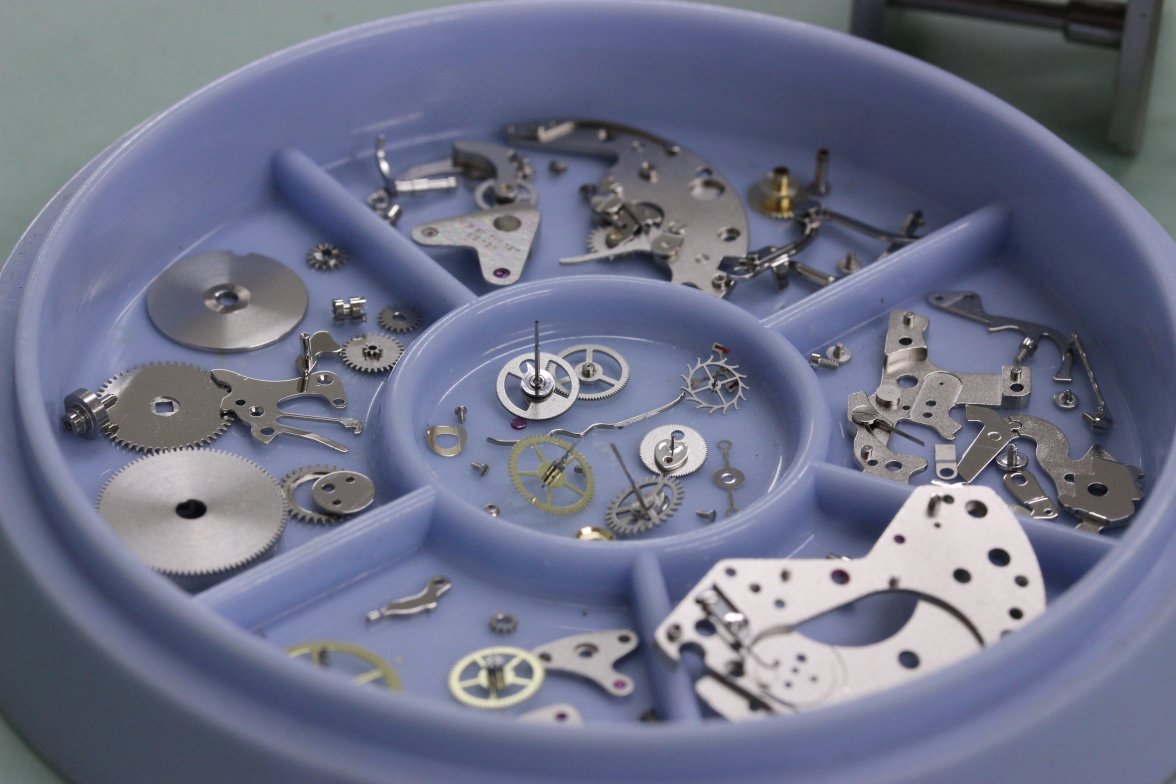

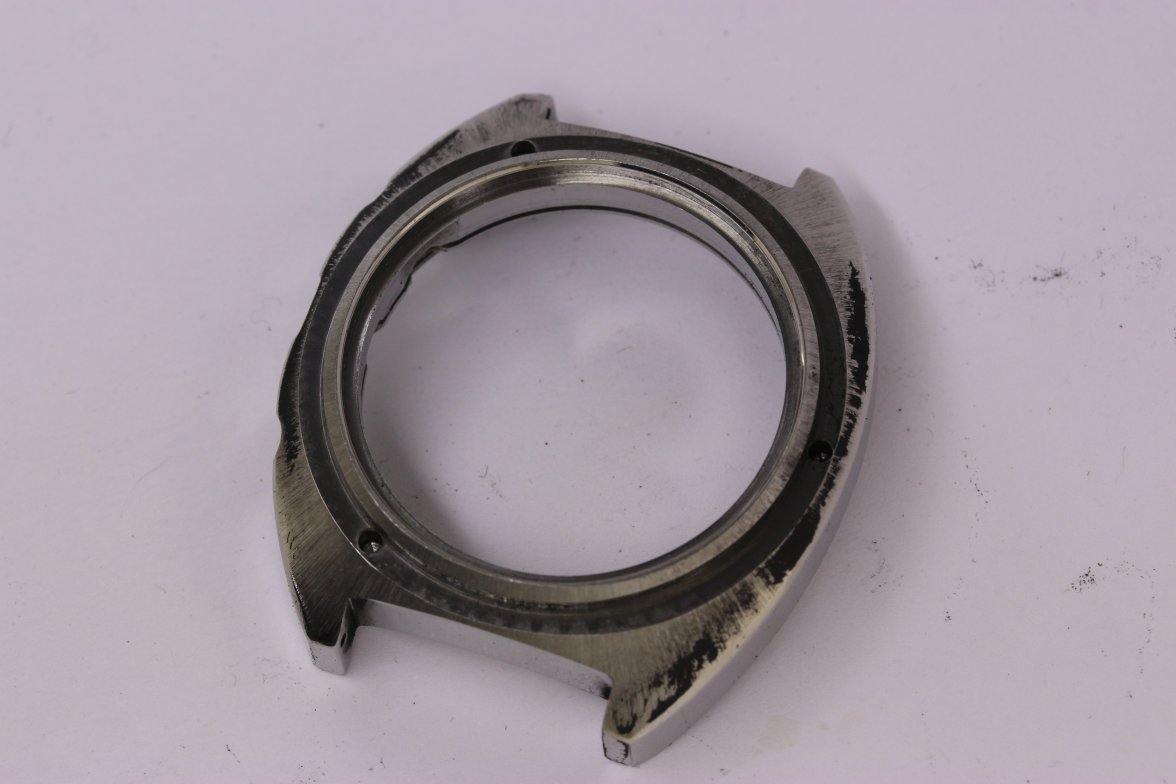

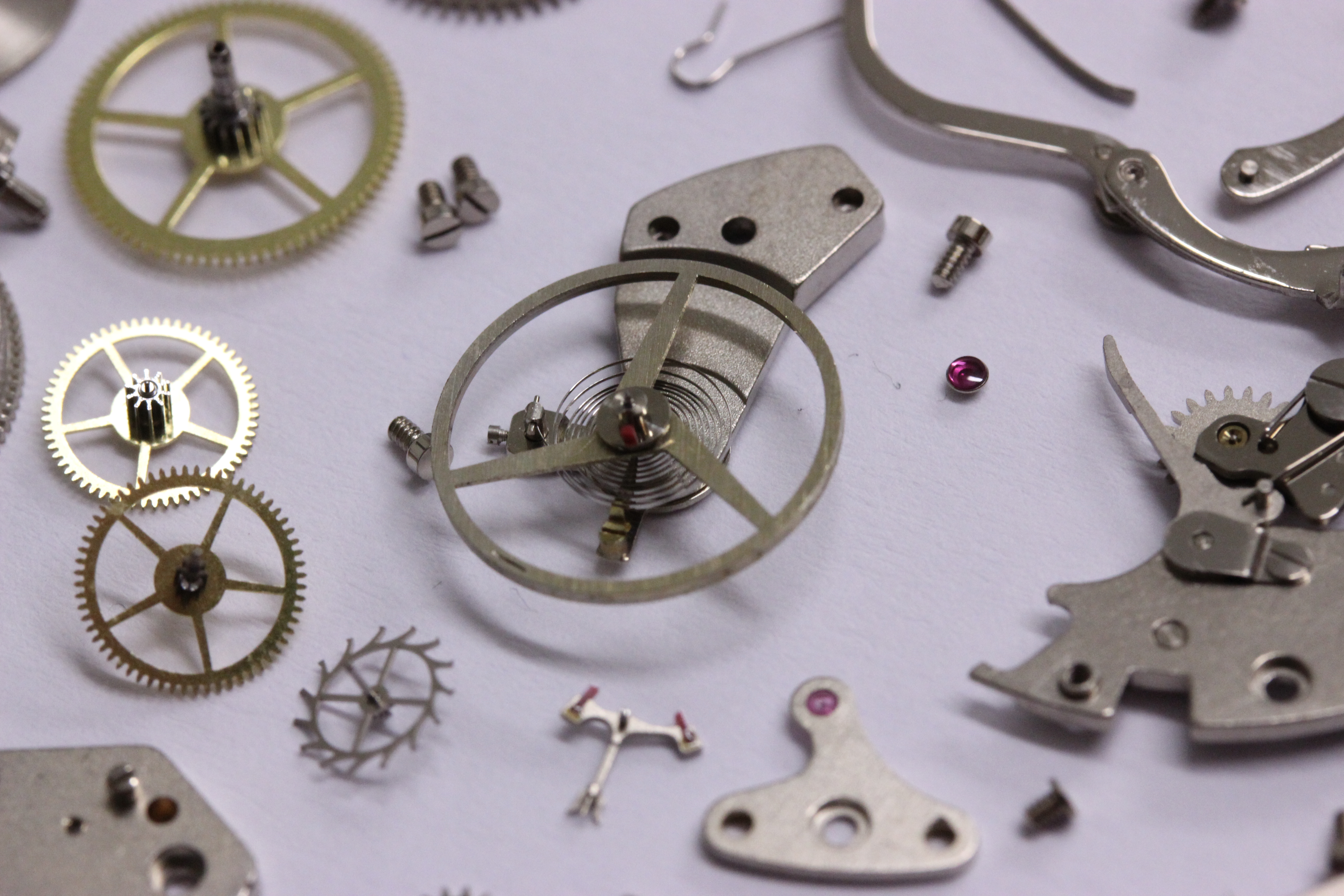

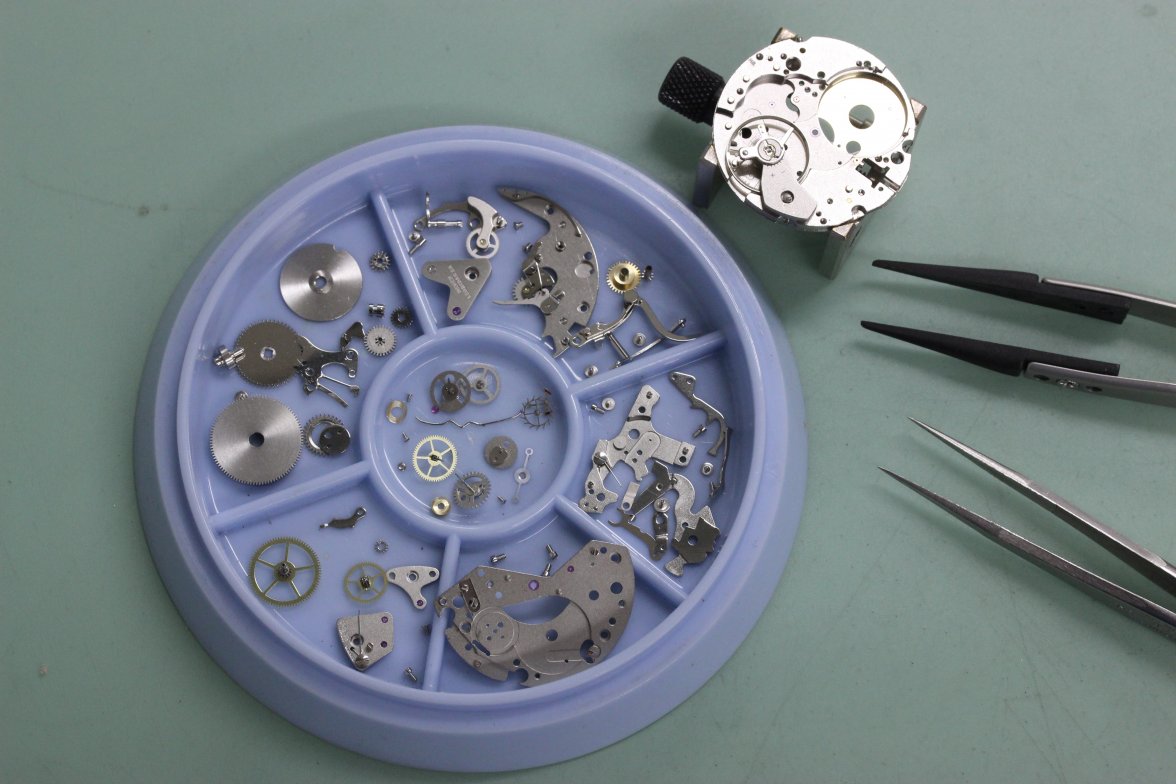

    David, movement is completely dissambled indeed to clean with a combinaition of rotation and ultrasonic. All pics from case are from before, in the pictures you refer too it onle has received a first ultrasonic bath at 70 degrees Celcius.

  9. Calibre11

    Calibre11 Editor of Calibre11.com Staff Member Dec 11, 2014

    Posts
    7,121
    Likes
    15,029

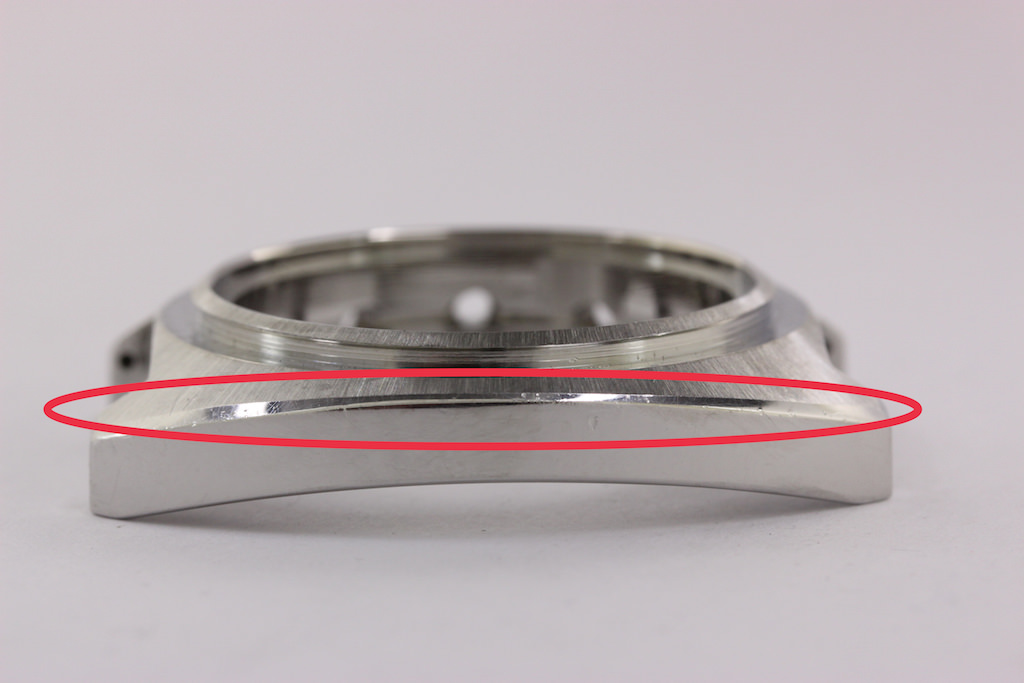

    Hi Abel- what do you mean about the edges not being symmetrical? Do you mean that the width of the area in red varies as you move along the case and is different on both sides?

  10. abcoro

    abcoro Dec 11, 2014

    Posts
    74
    Likes
    330
    Exactly. Also very pronounced at upper right lug.

    Calibre11 likes this.
  11. step_hent

    step_hent Dec 11, 2014

    Posts
    16
    Likes
    3
    That's really interesting. When I've seen that before, I assumed the case had been inexpertly polished and more metal had been removed in the places where the bevel is thinner. I didn't realize it was a manufacturing fault! Again, thanks for sharing - it's really informative following threads like this.

  12. george023

    george023 Dec 12, 2014

    Posts
    54
    Likes
    15
    Yes I also can't wait for the finished product and reveal.

  13. abcoro

    abcoro Dec 12, 2014

    Posts
    74
    Likes
    330

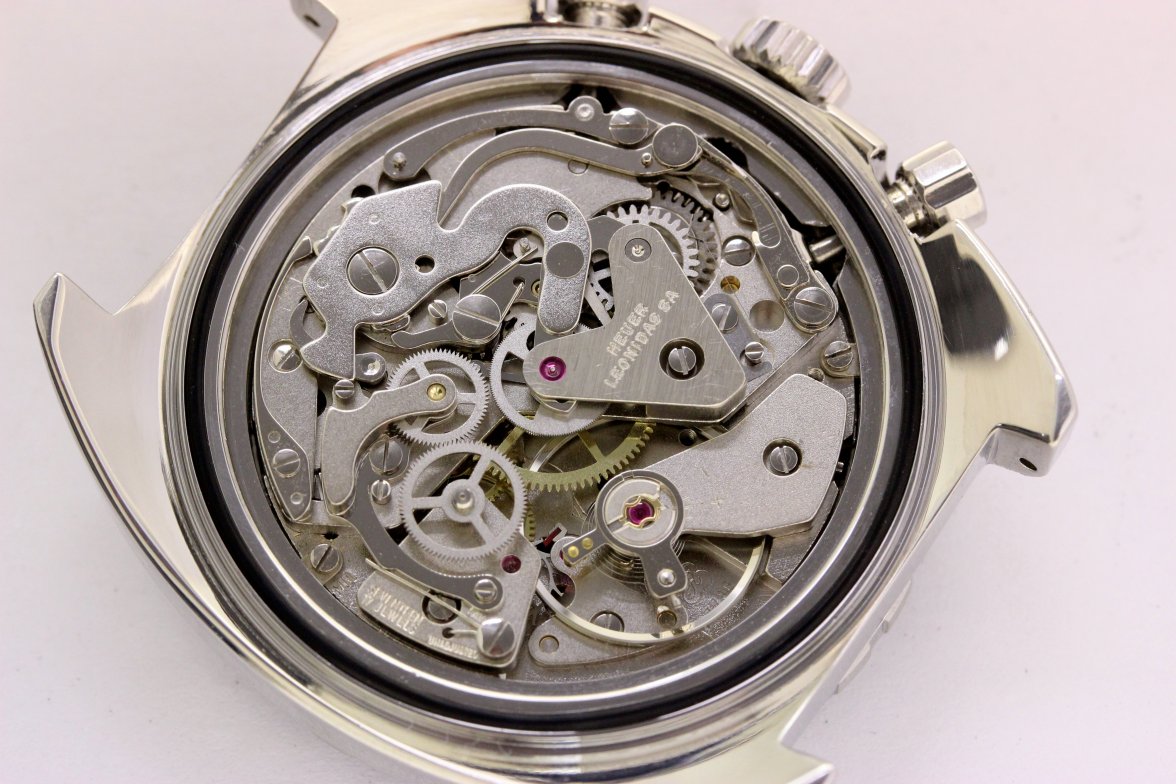

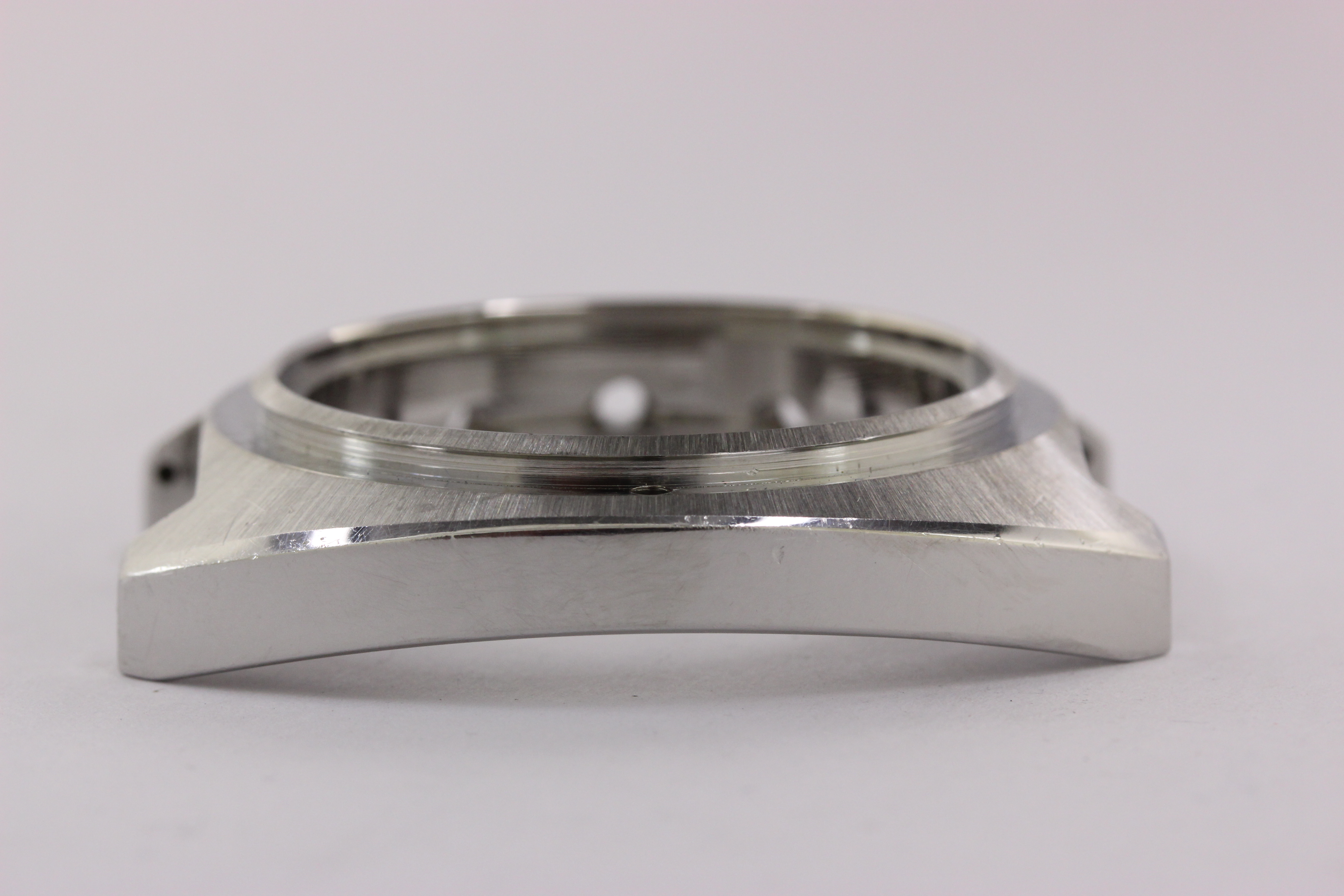

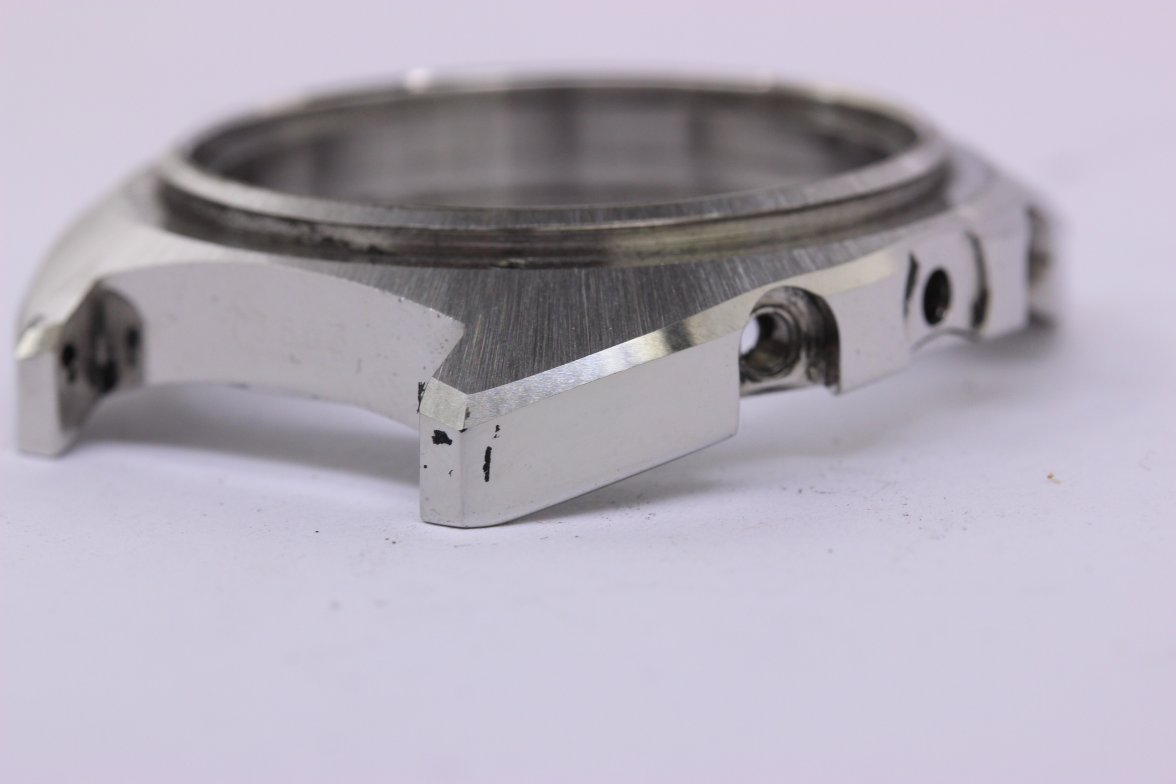

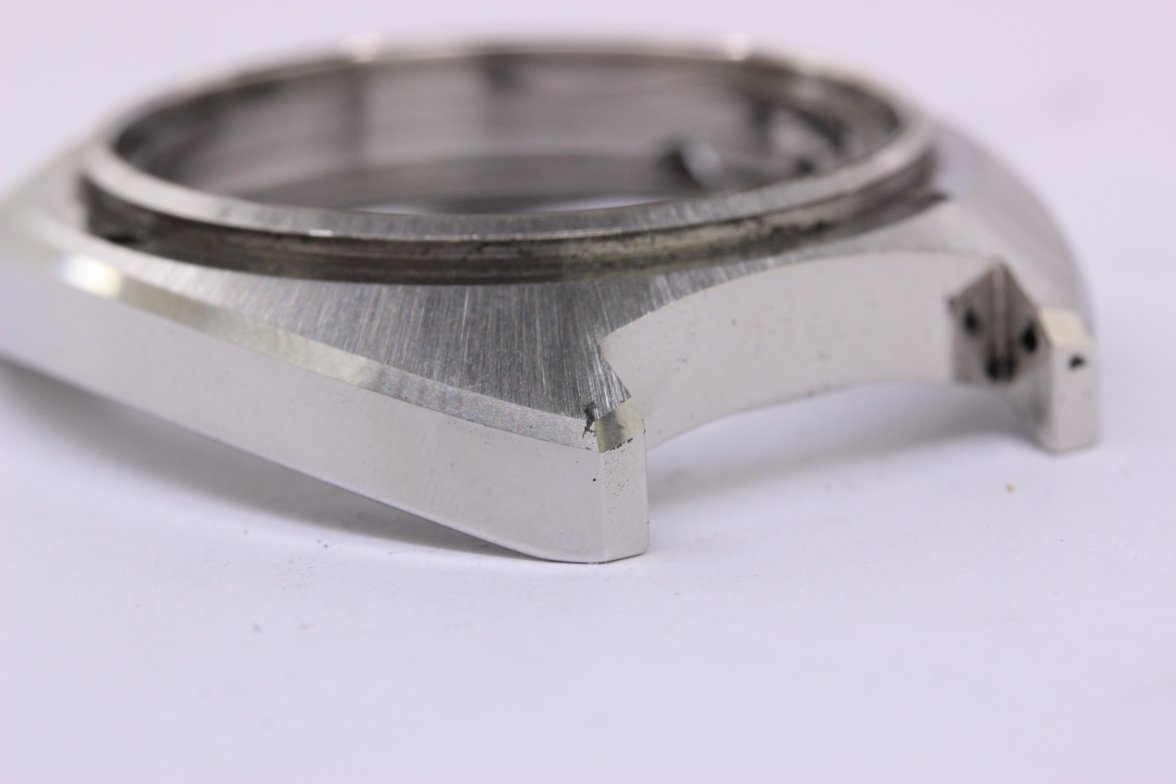

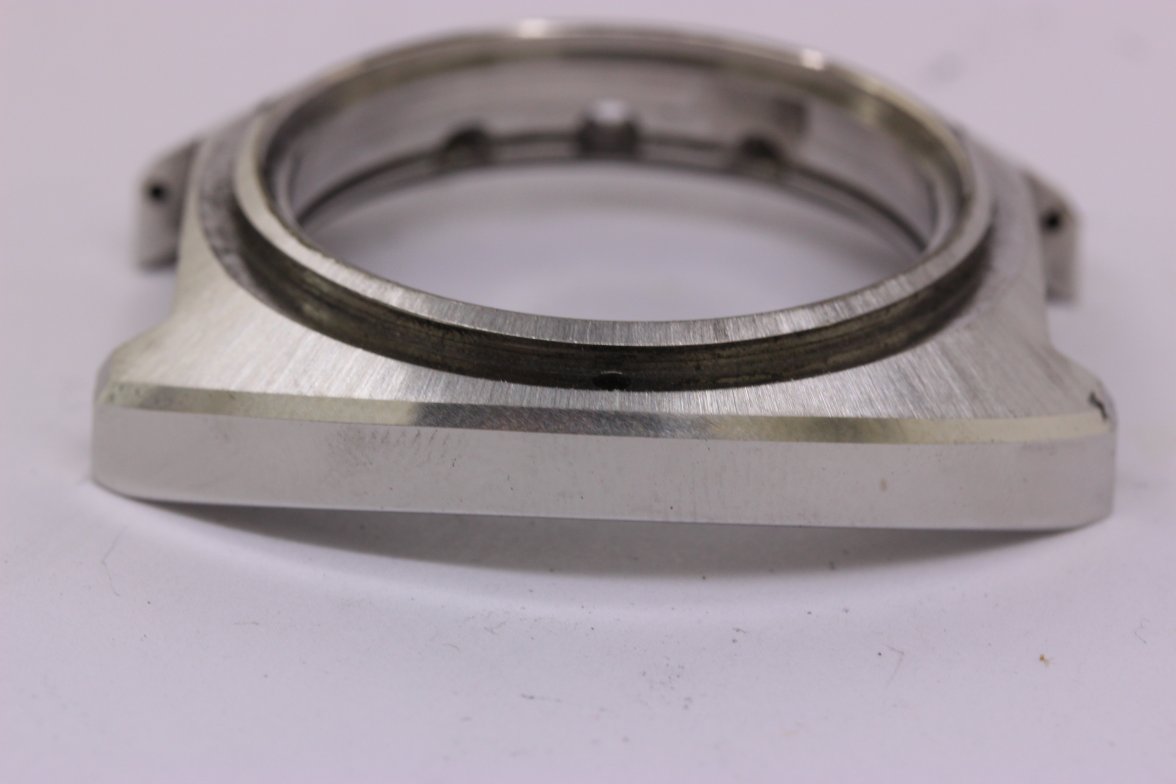

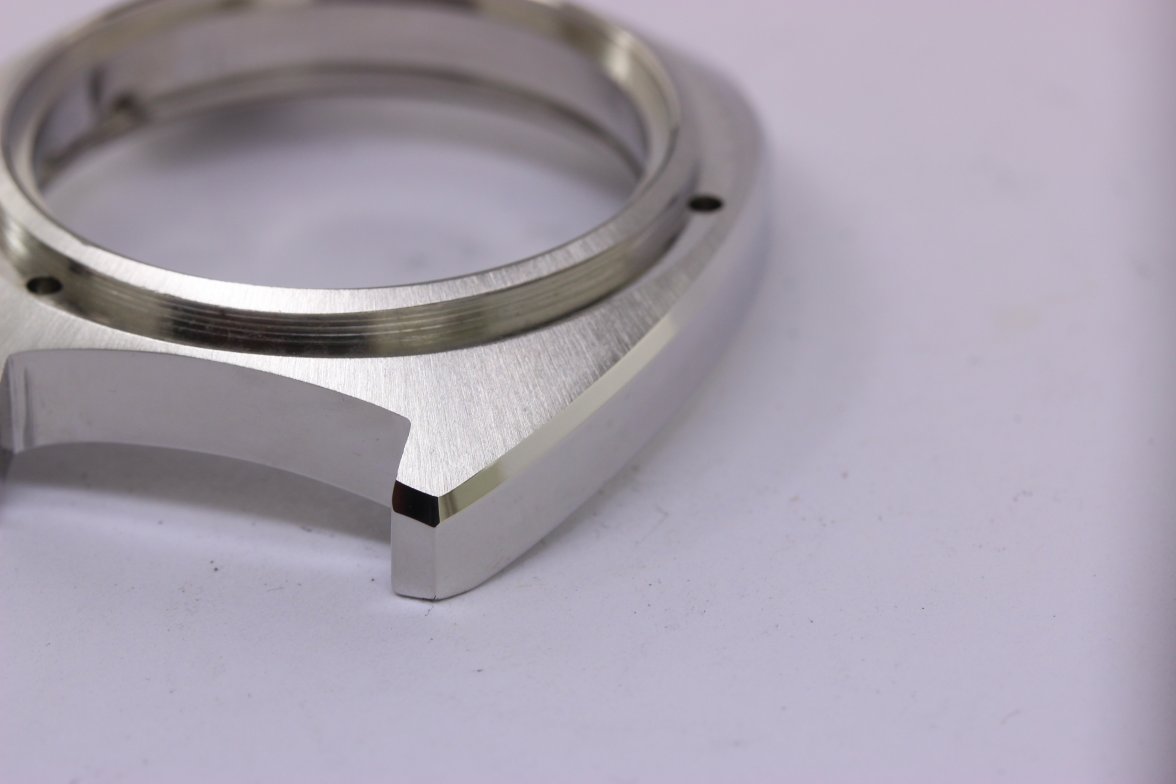

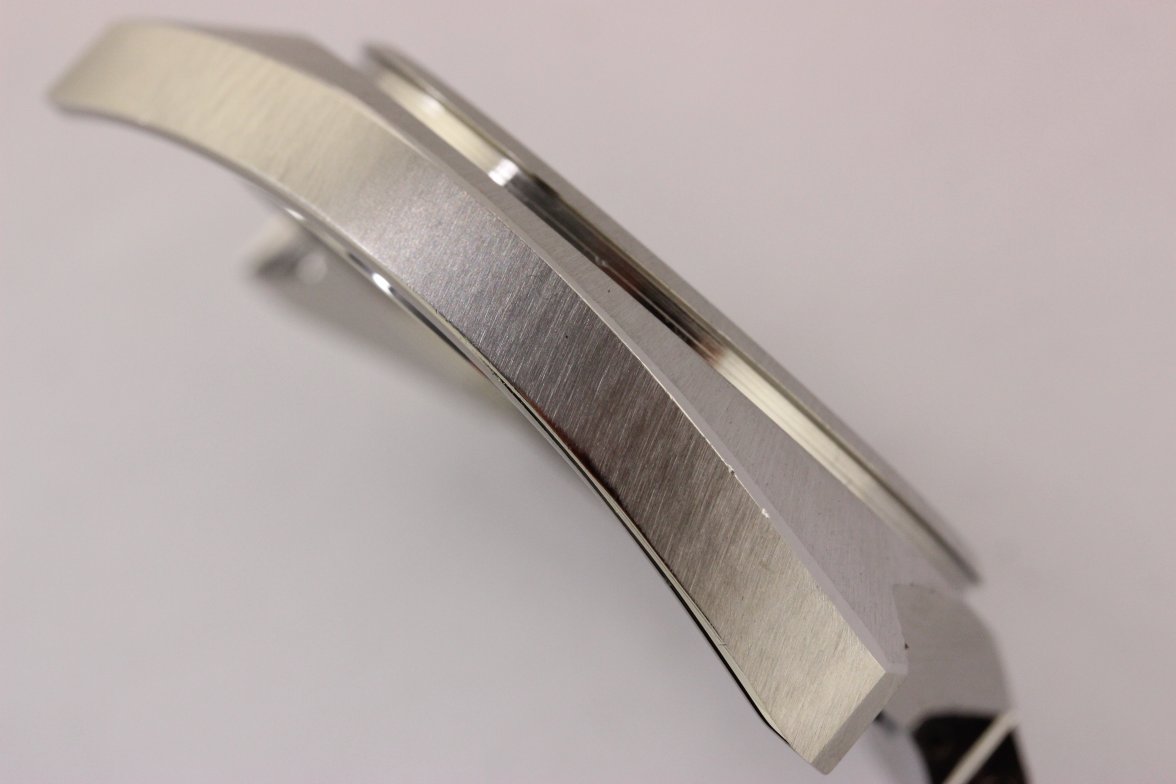

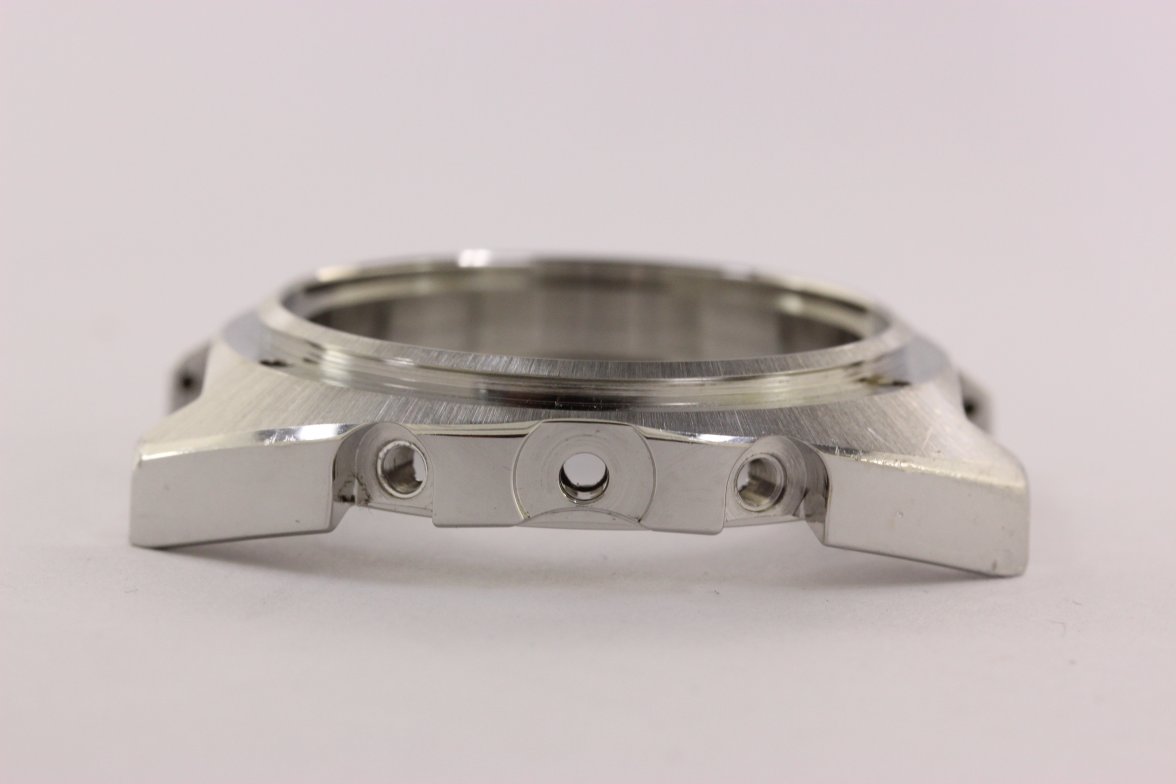

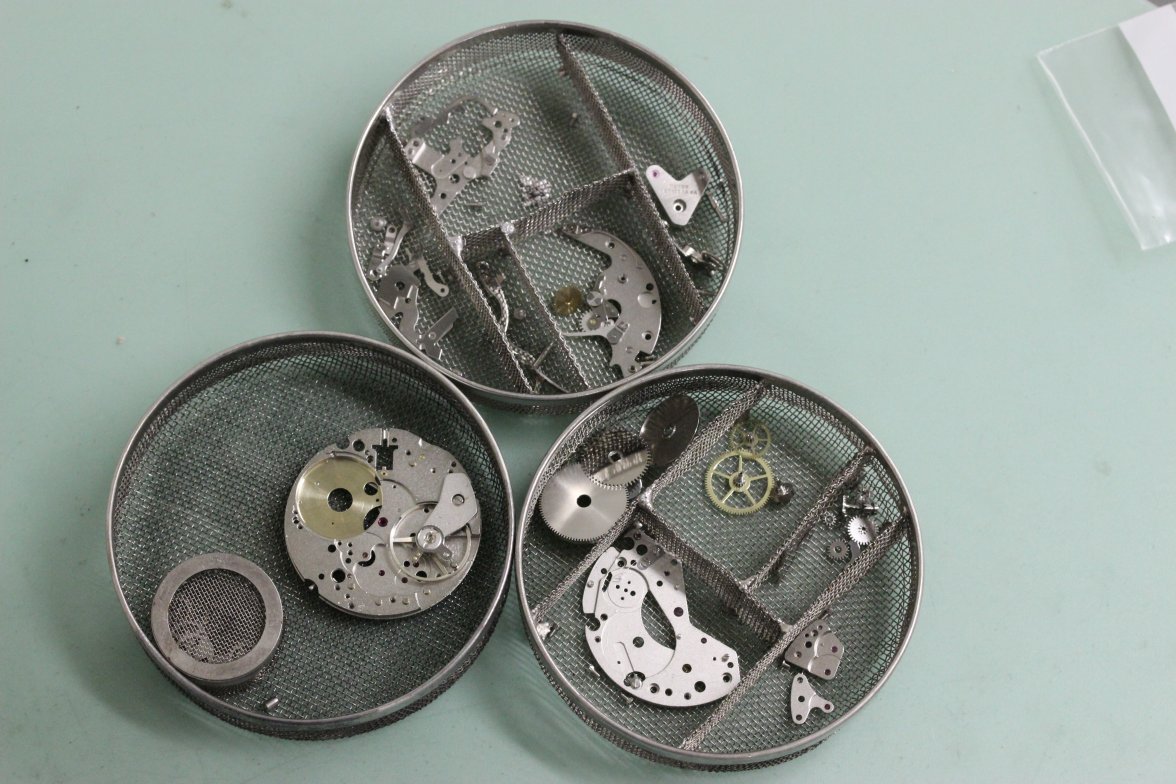

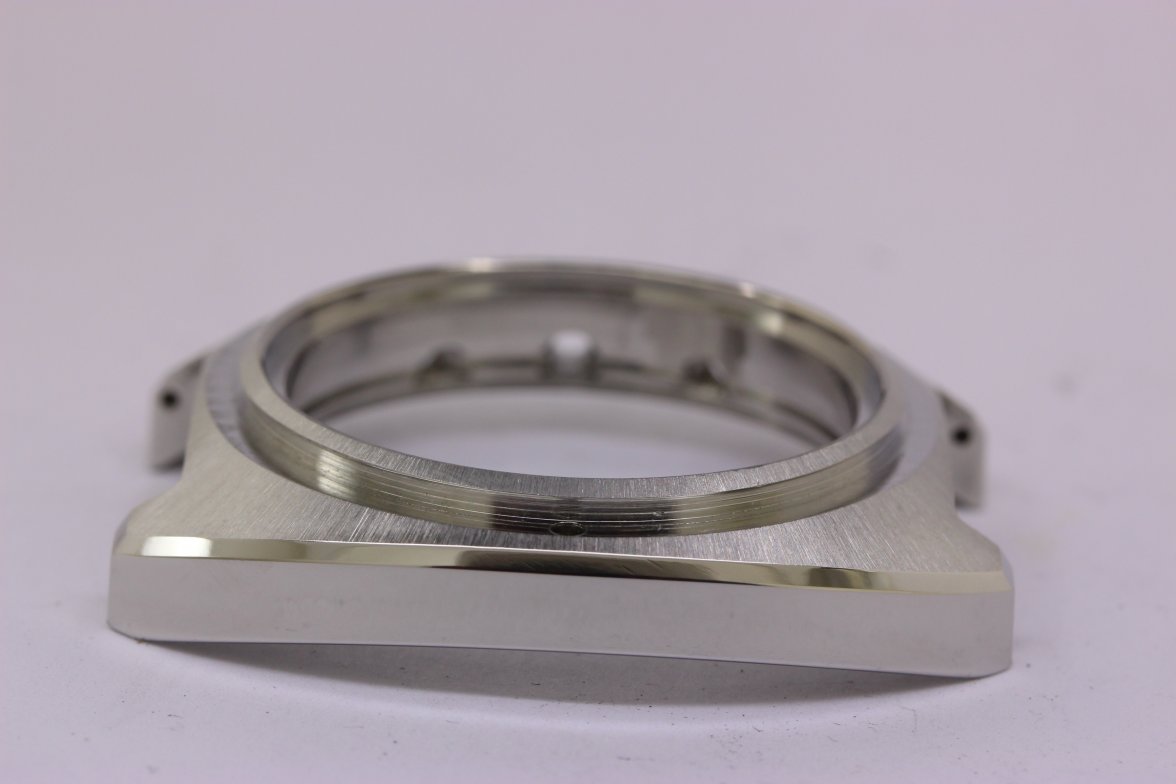

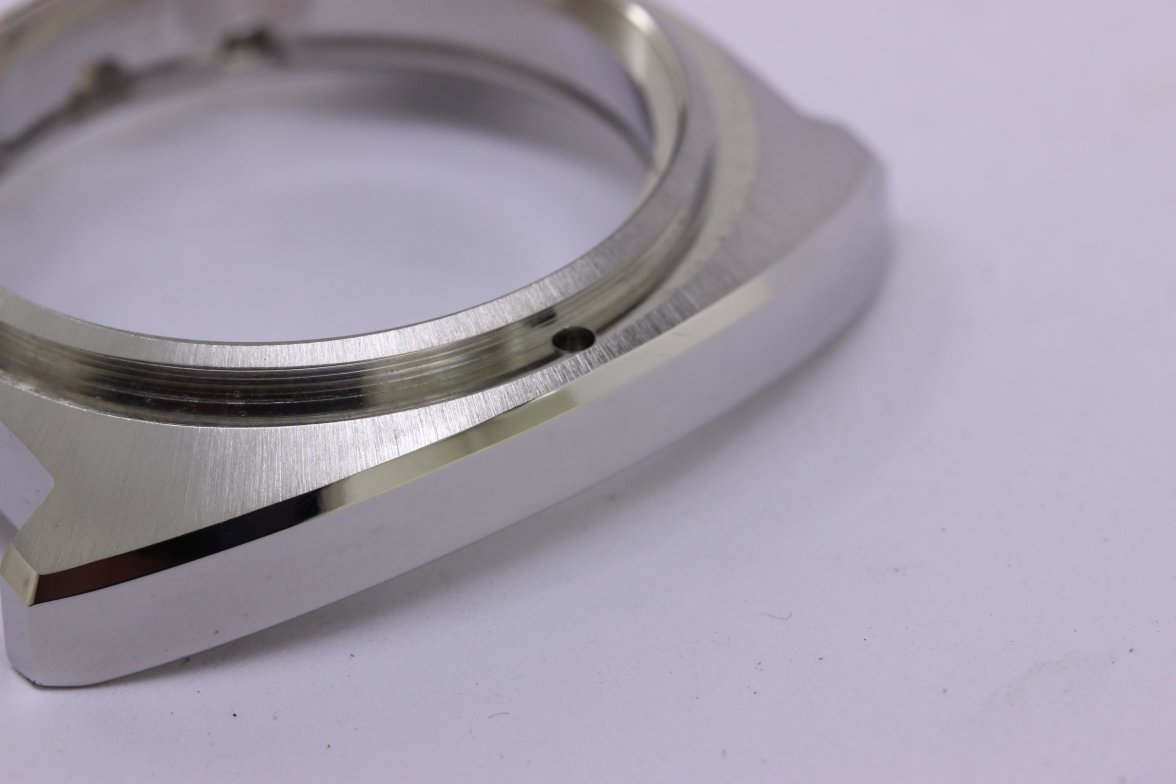

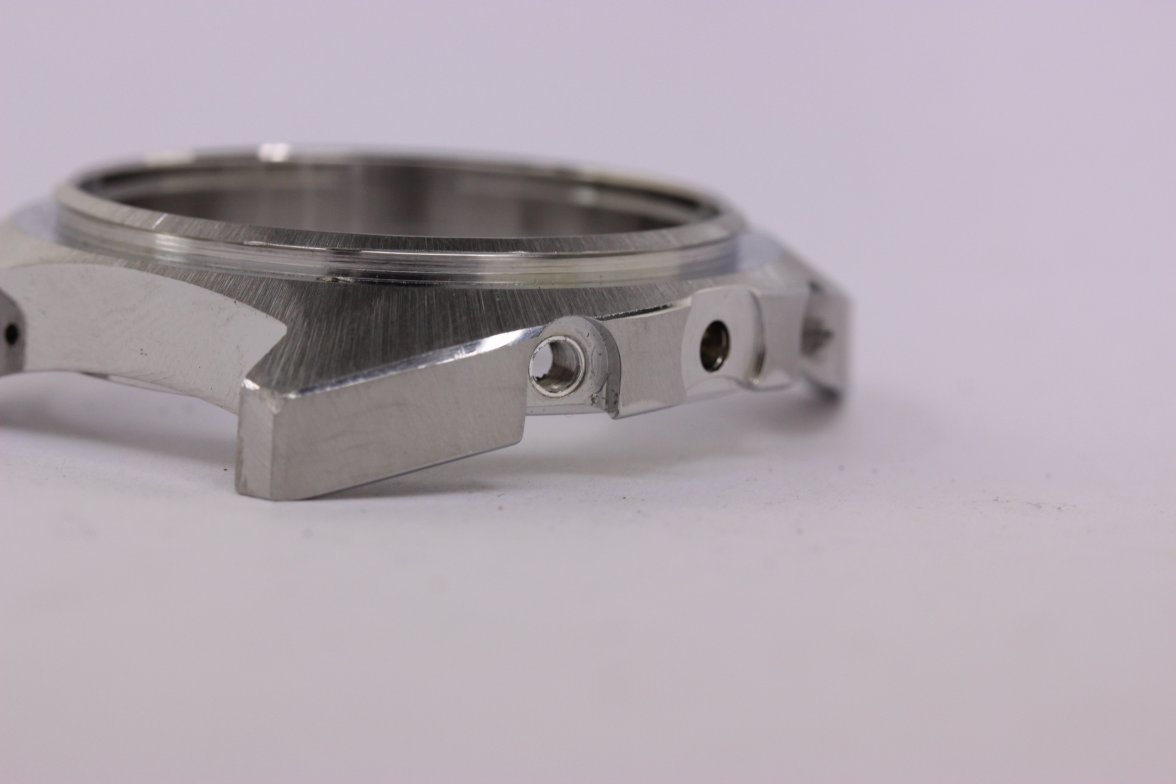

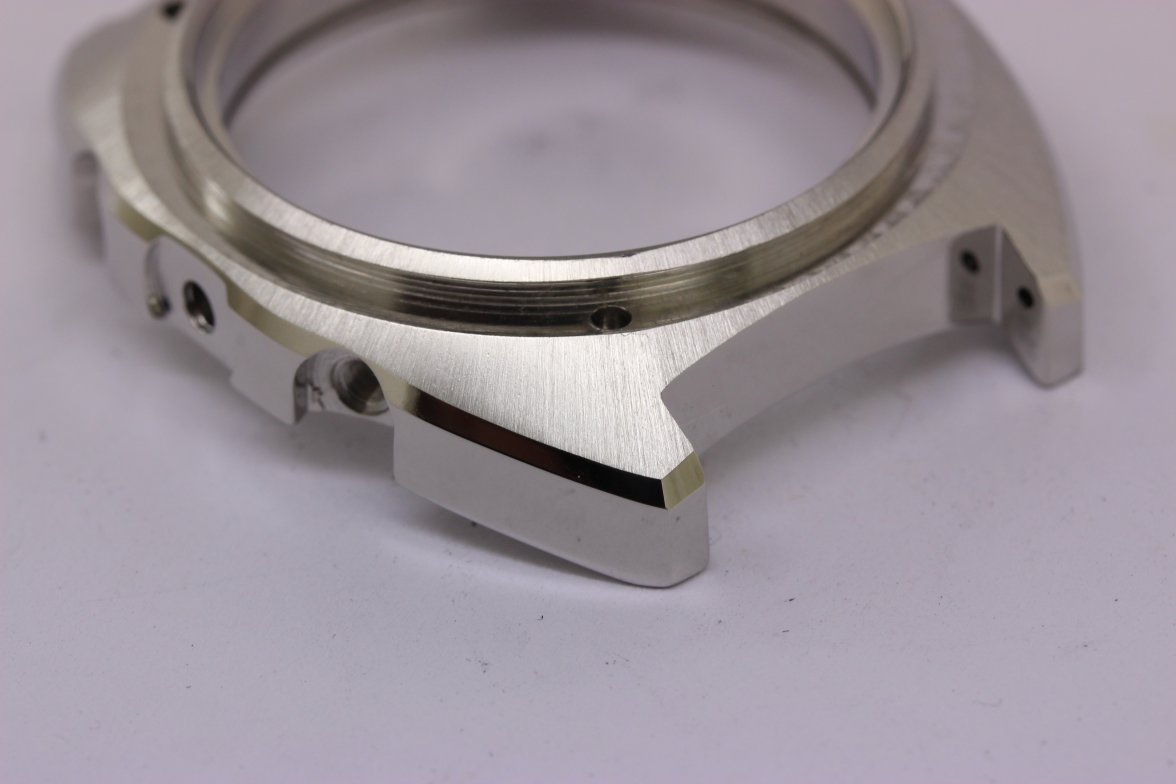

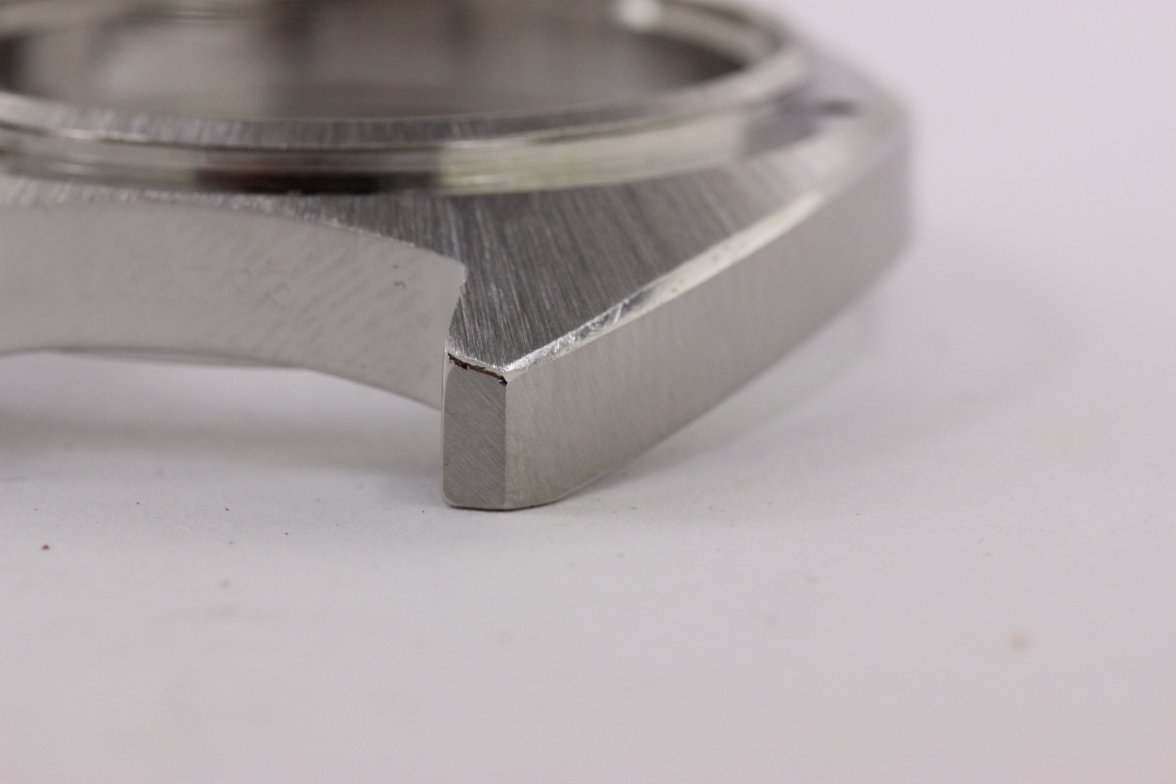

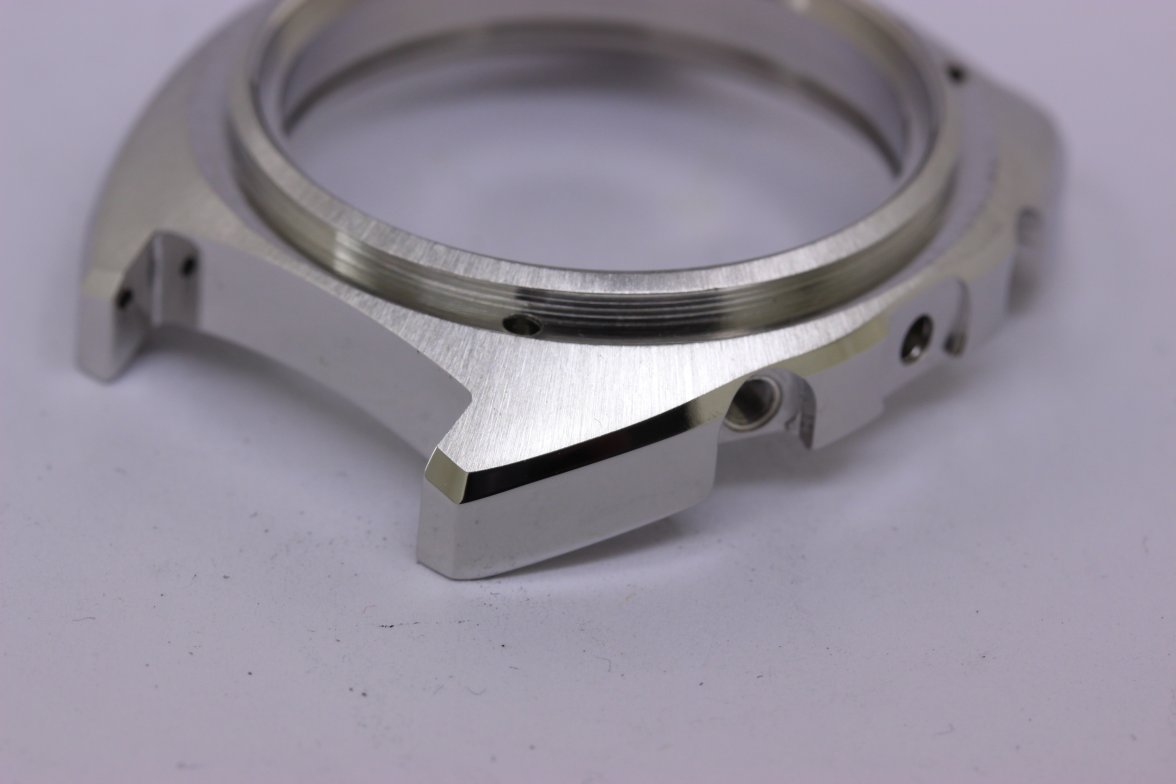

    Step 2...Case refurbishment, trying to regain some edges again while preserving as much material as possible. Some pictures from different steps included. No questions about how and with what tools please :) Also some pictures from cleaned Heuer signed Valjoux 7736 movement included, ready to be assembled again. IMG_9610.JPG IMG_9611.JPG IMG_9613.JPG IMG_9614.JPG IMG_9615.JPG IMG_9616.JPG IMG_9617.JPG IMG_9619.JPG IMG_9620.JPG IMG_9621.JPG IMG_9622.JPG IMG_9623.JPG IMG_9624.JPG IMG_9626.JPG IMG_9631.JPG IMG_9632.JPG IMG_9633.JPG IMG_9634.JPG IMG_9638.JPG IMG_9639.JPG IMG_9640.JPG IMG_9641.JPG IMG_9642.JPG

    JimJupiter likes this.
  14. step_hent

    step_hent Dec 12, 2014

    Posts
    16
    Likes
    3
    That's incredible! You mustbe some kind of magician, as well as a goldsmith and watchmaker.

  15. George C.

    George C. Dec 12, 2014

    Posts
    7
    Likes
    8
    They don't call him the Belgium Magician for nothing...

    Hi, David and Abel.

    ~George

    RobertR, dsio and Calibre11 like this.
  16. abcoro

    abcoro Dec 12, 2014

    Posts
    74
    Likes
    330
    But Belgium is very small country ;-) No magician at all George...I'm learning all the time!

  17. Calibre11

    Calibre11 Editor of Calibre11.com Staff Member Dec 13, 2014

    Posts
    7,121
    Likes
    15,029
    Abel, do you notice any difference in quality between the cases made by Schmitz vs. Piquarez? I think there are some small design differences between the two, but what about in terms of quality of steel and finish?

  18. abcoro

    abcoro Dec 14, 2014

    Posts
    74
    Likes
    330
    David, no not much difference as far as my experience with these cases goes.

  19. abcoro

    abcoro Dec 14, 2014

    Posts
    74
    Likes
    330

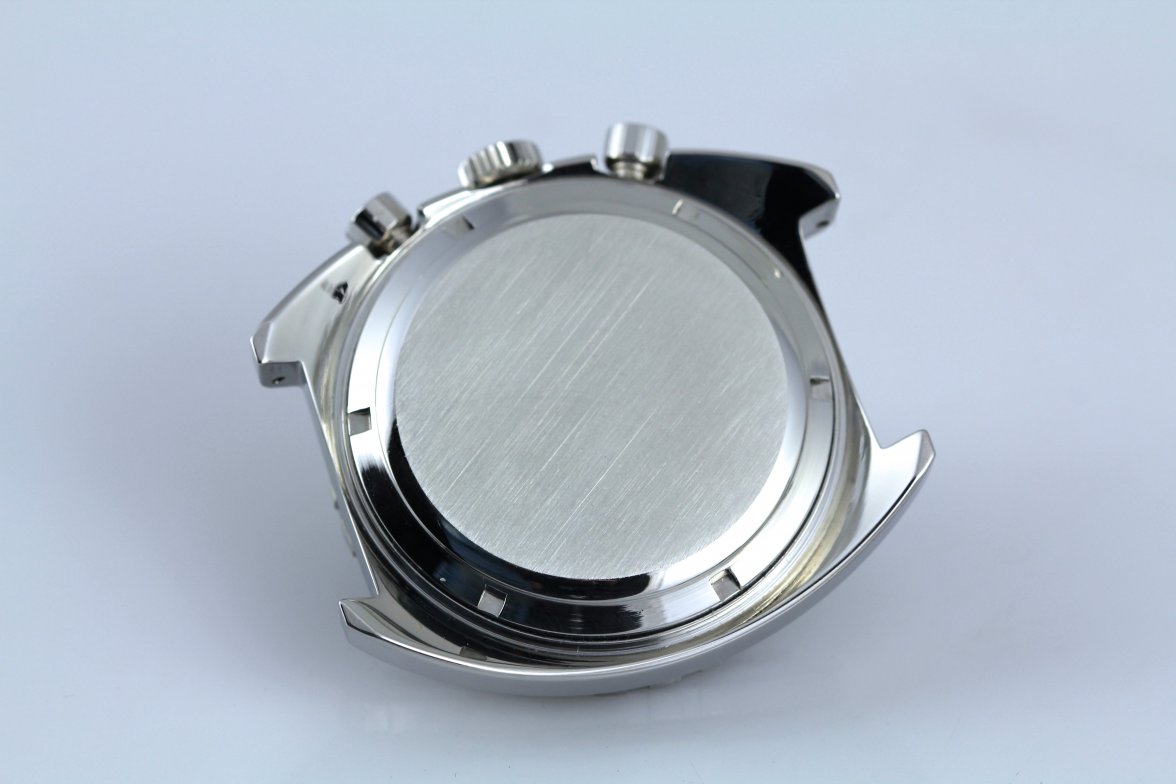

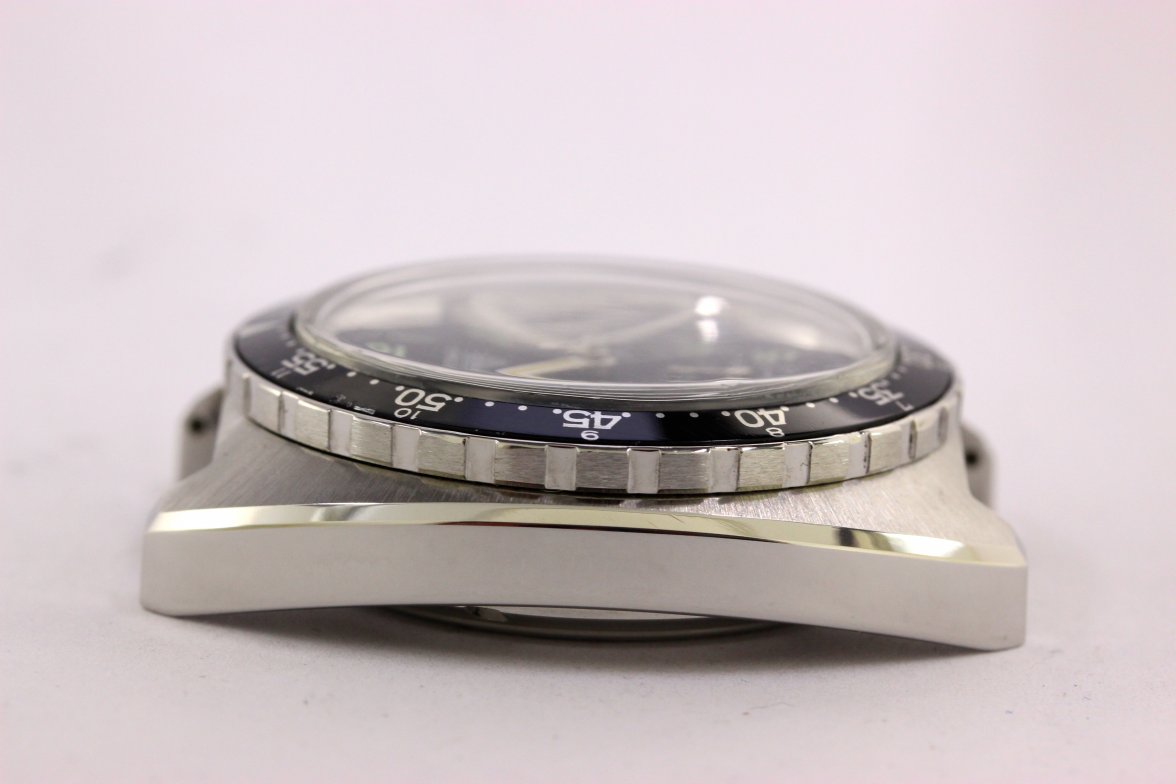

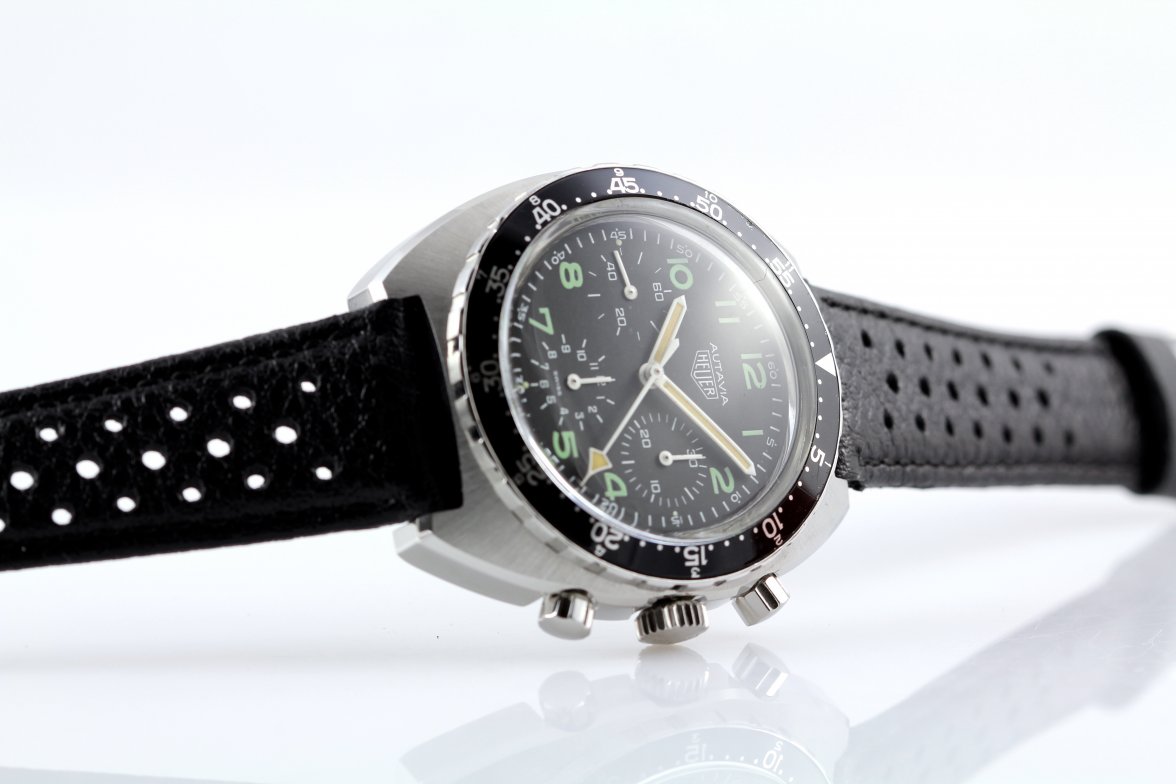

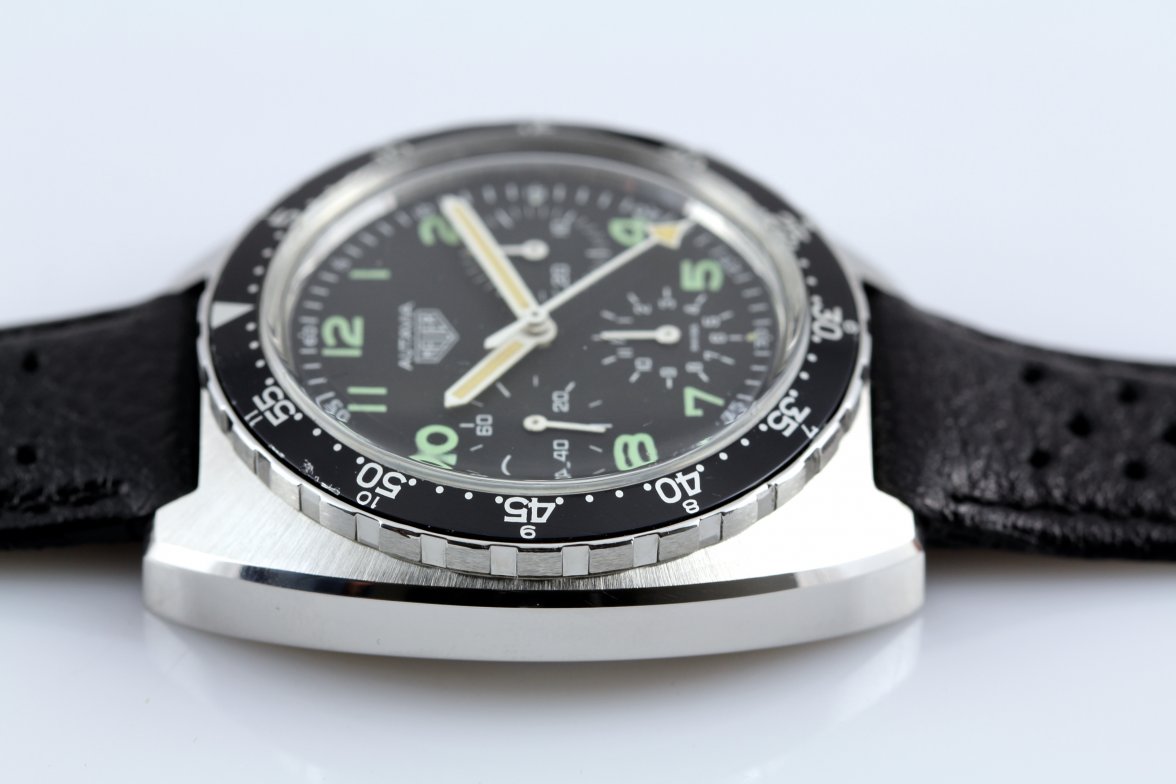

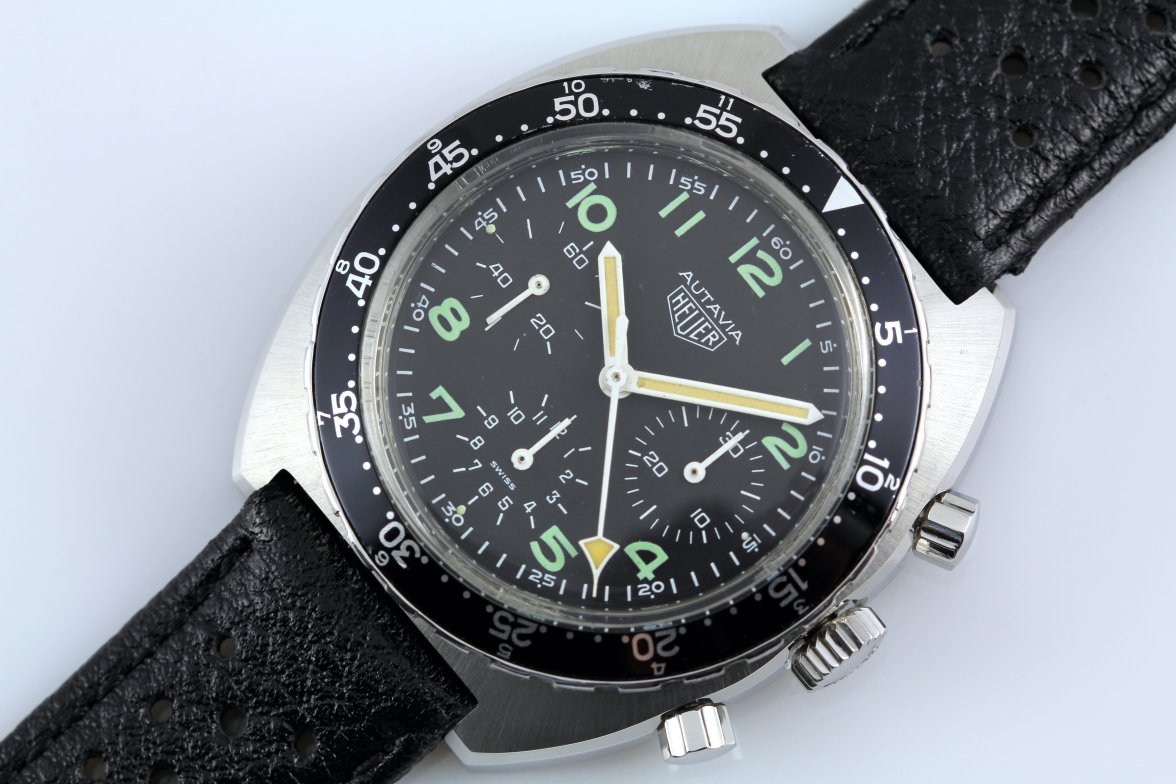

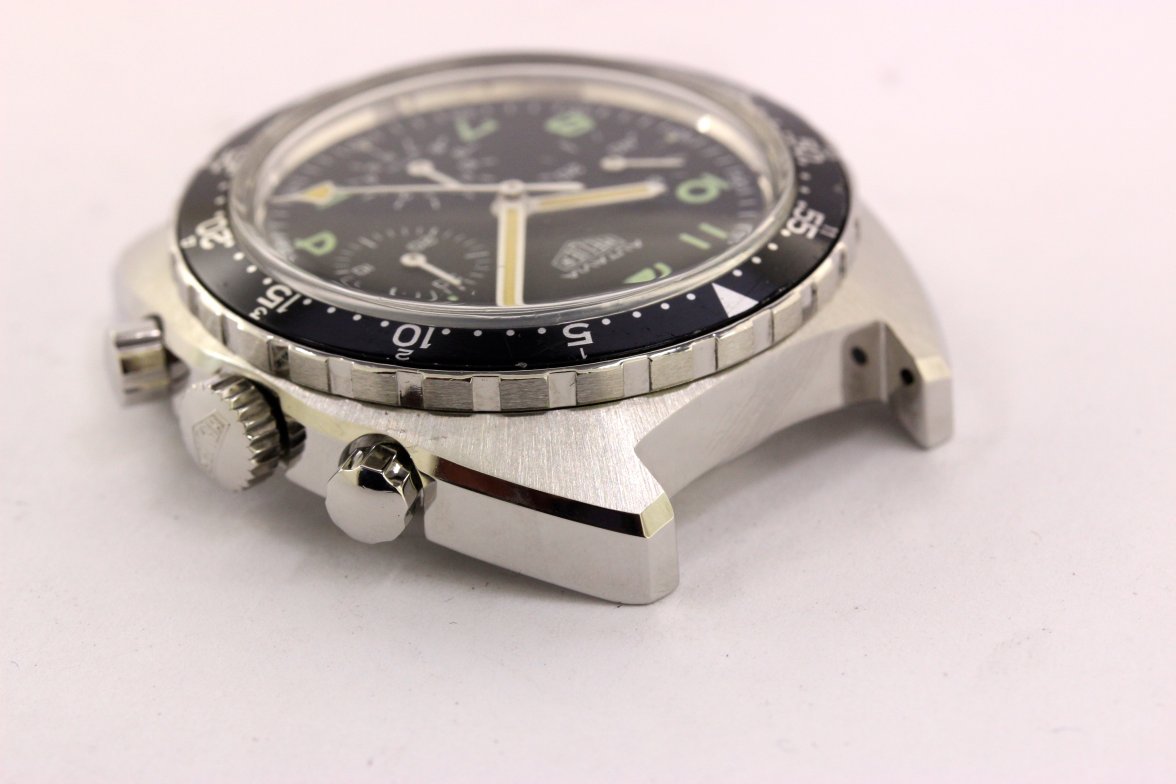

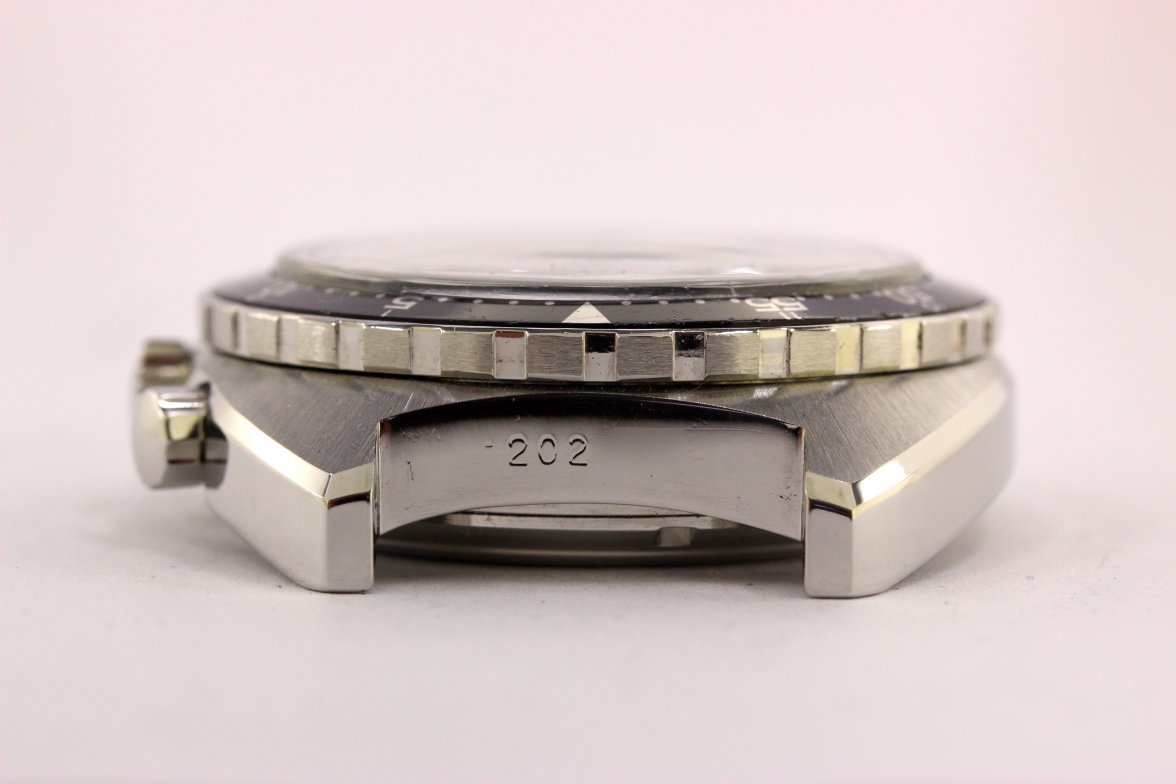

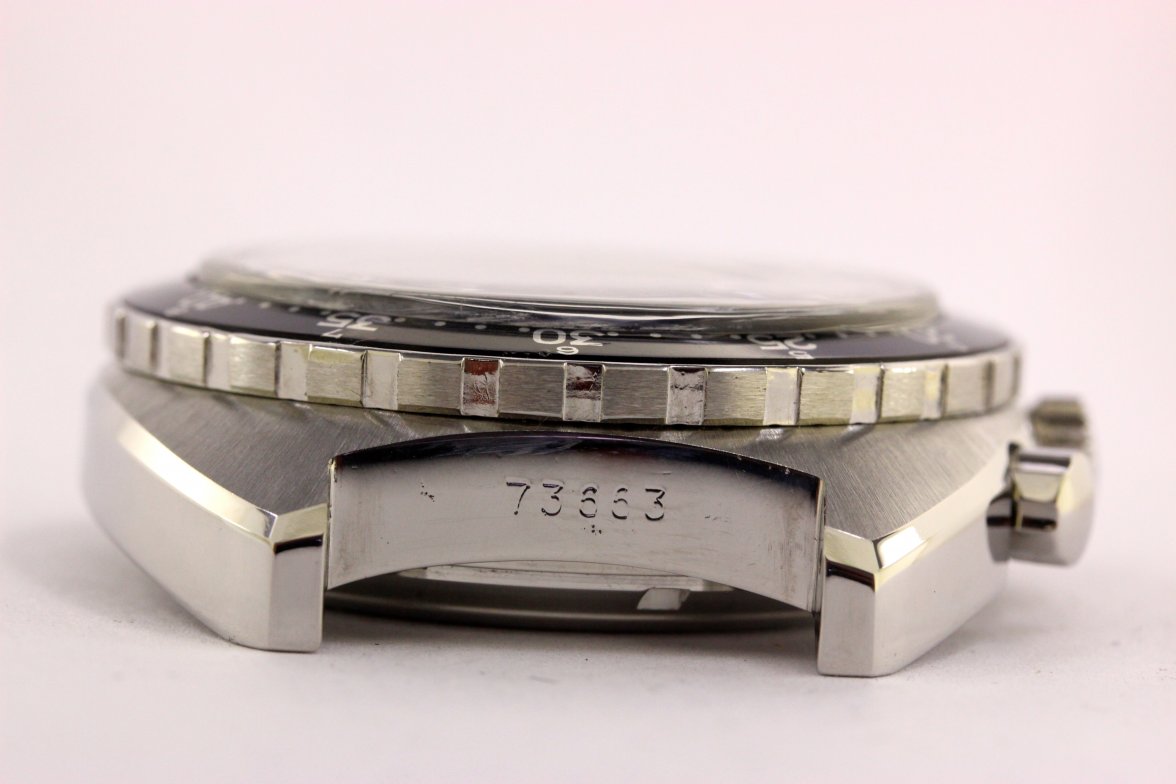

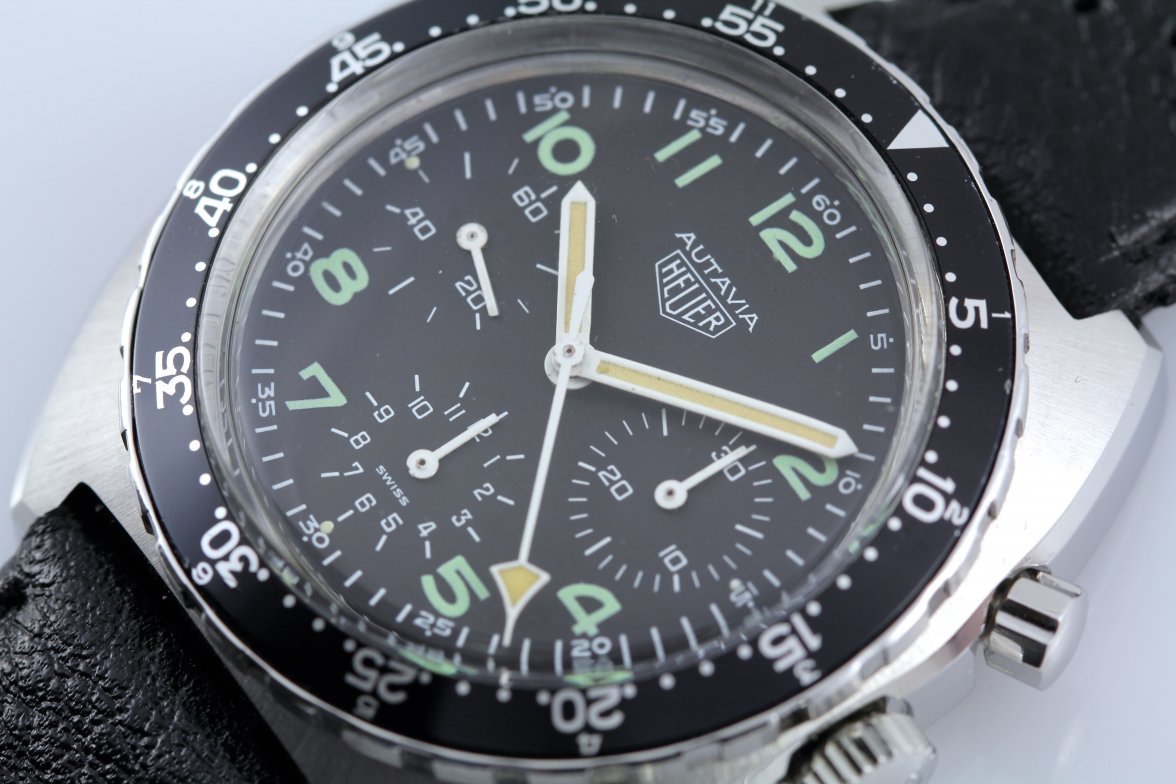

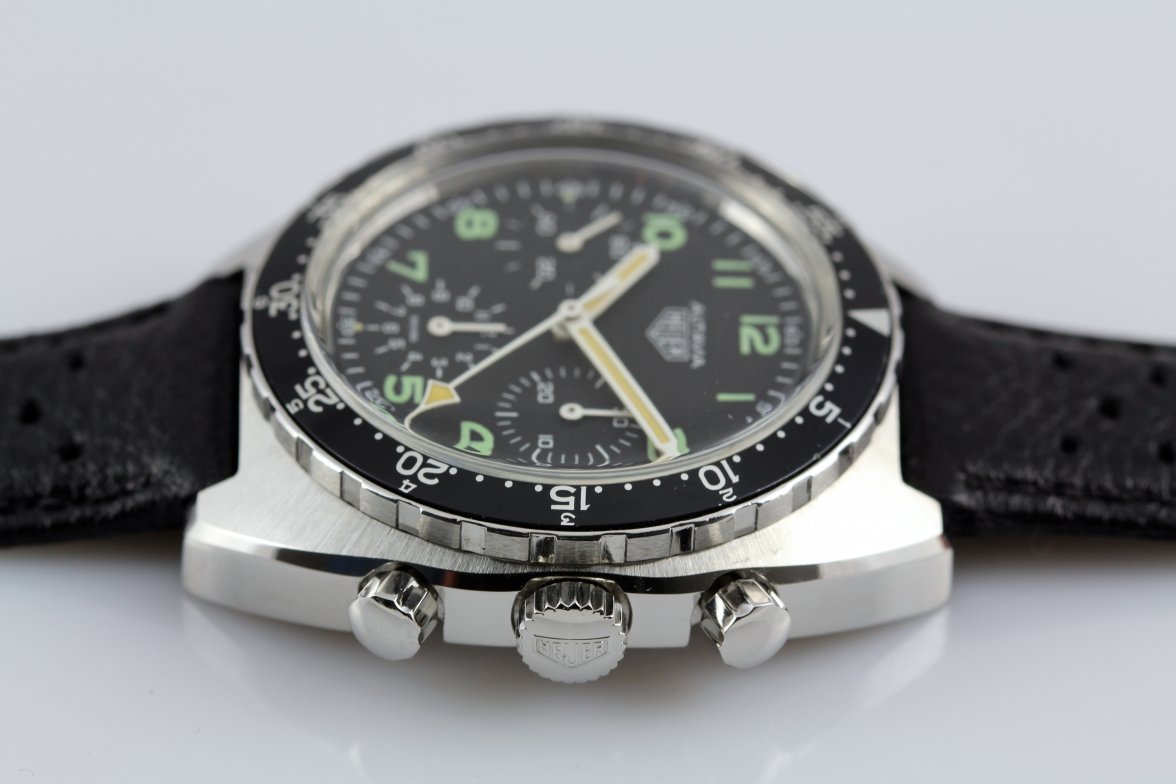

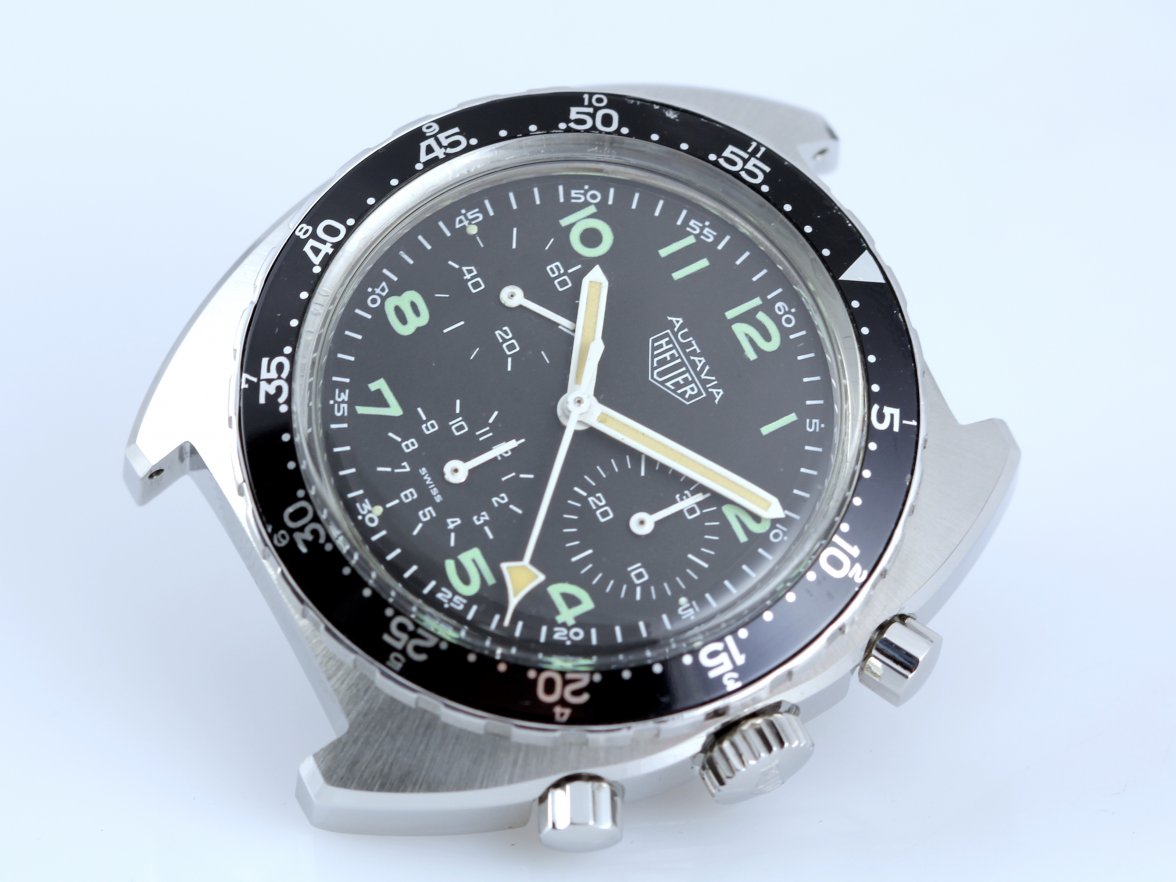

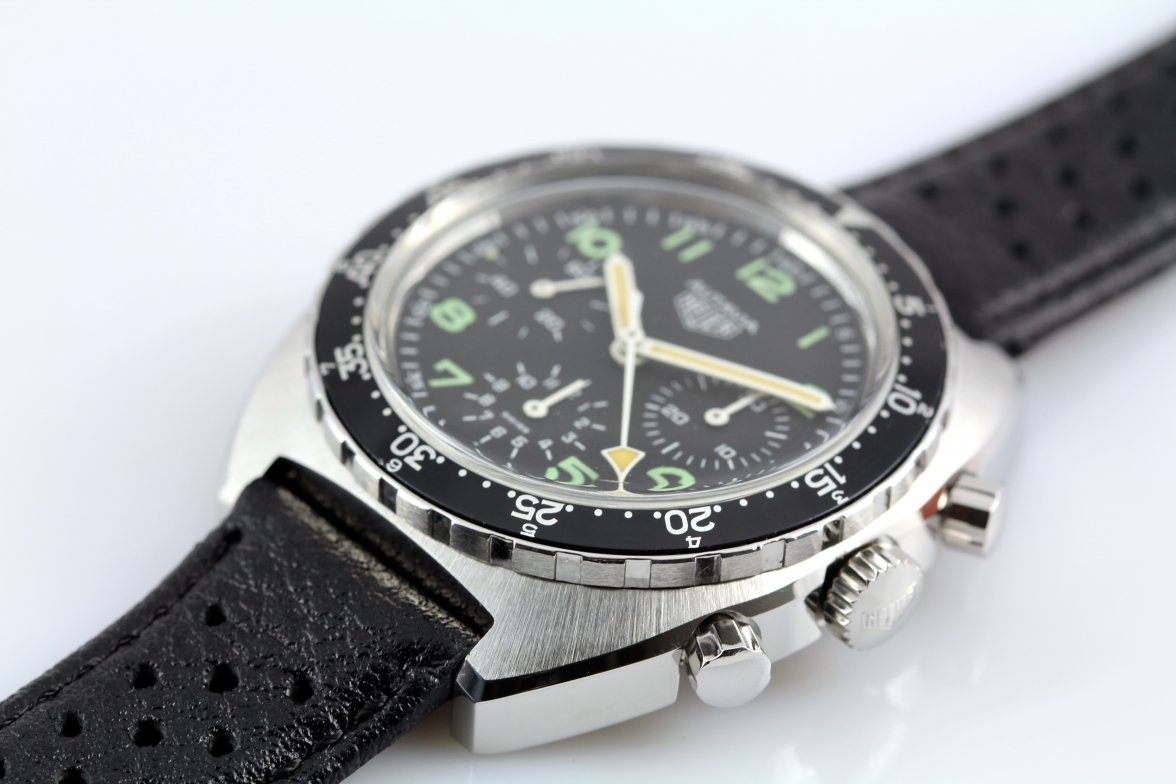

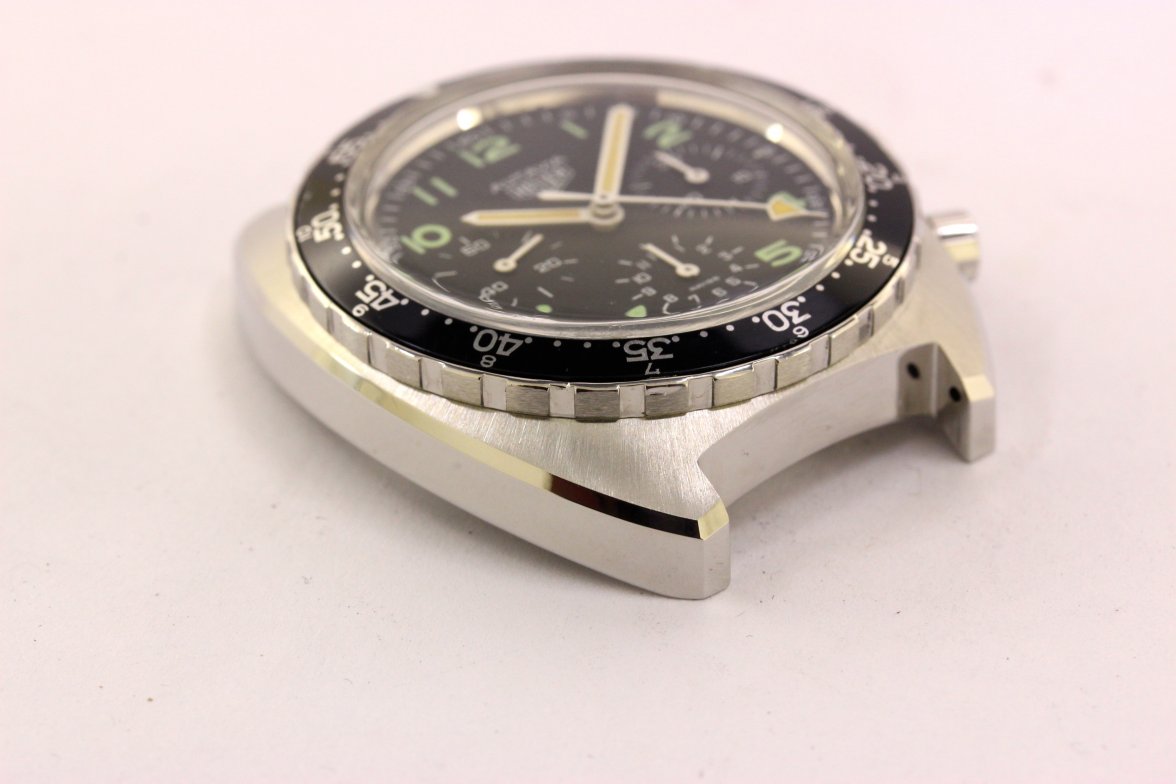

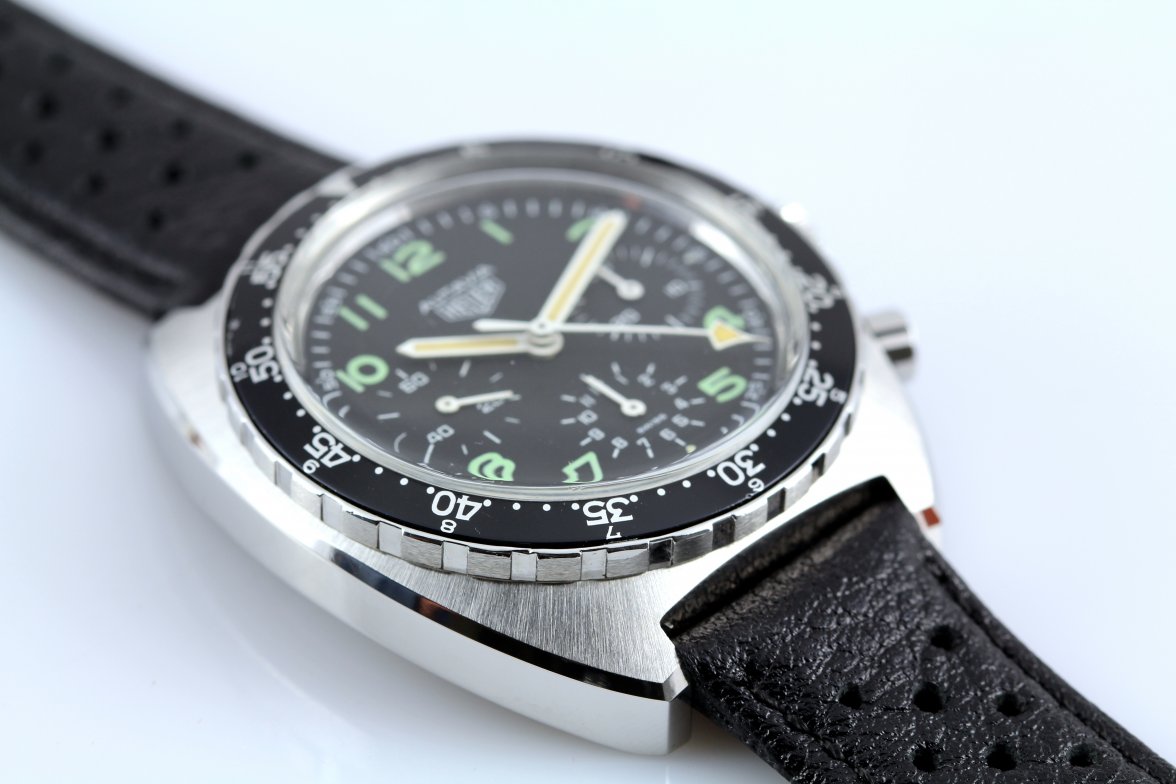

    So, last step...the finish. All in all I am personally very satisfied about this result, I can imagine some collectors would have preferred to leave the case untouched but again, it's all about taking decisions. The fact that the most valuable part of this watch, the dial, was still in such great condition helped me in this decision. The original stainless steel outer bezel is replaced with a same example...but in mint condition, as the dent in the original outer bezel was too big to repair.

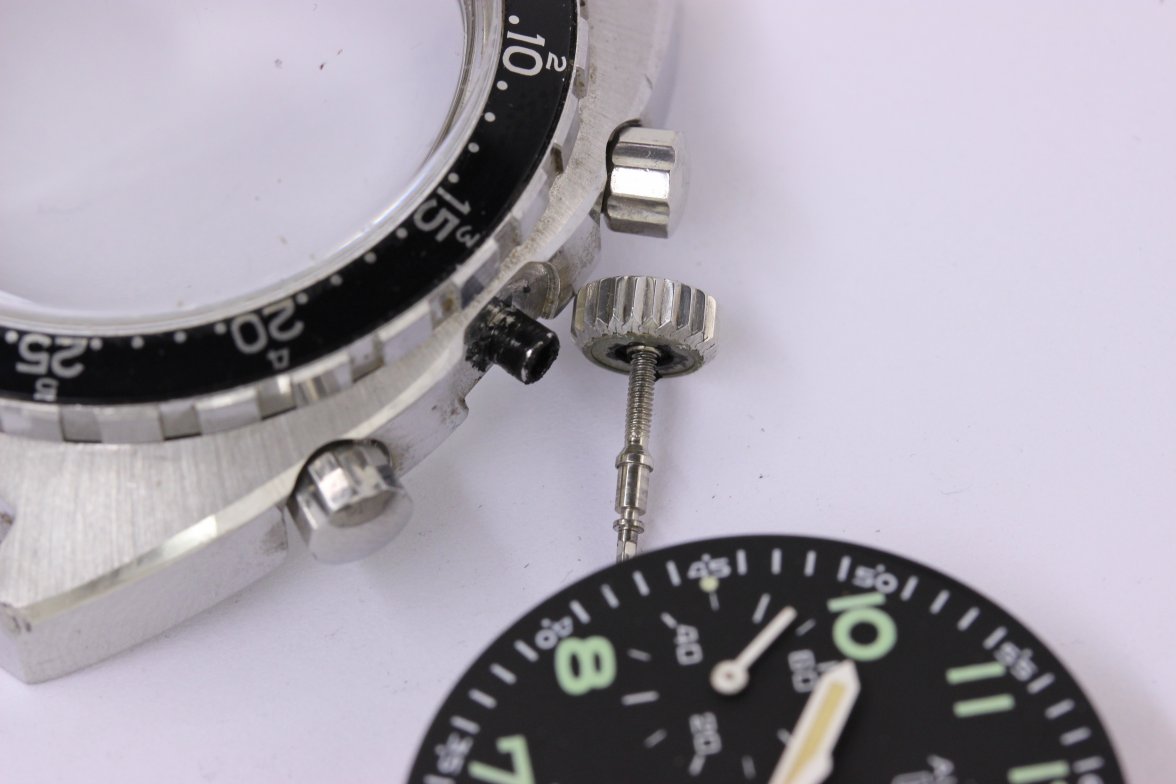

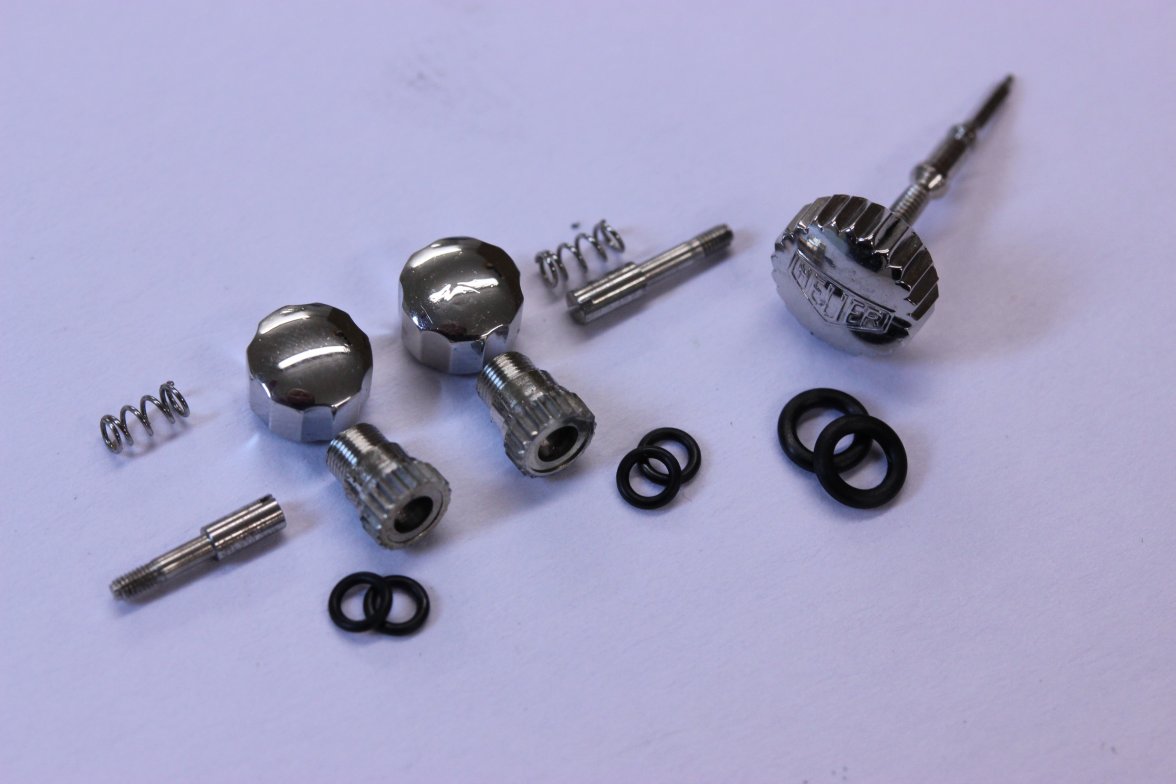

    Movement fully serviced. The sealings in crown and pushers as well as the casebook sealing were all deteriorated and melted...really messy stuff. All seals were replaced. The plexi was in good condition, despite some scratches and little dents I managed to get it back in shape.

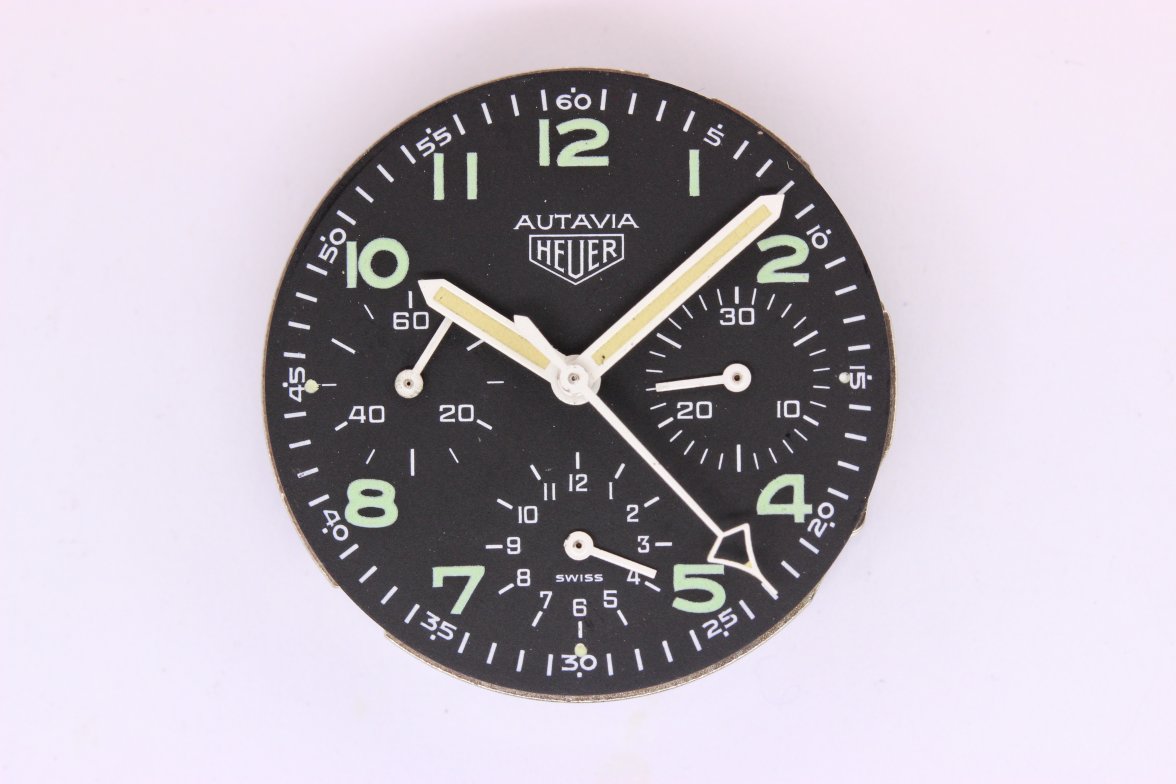

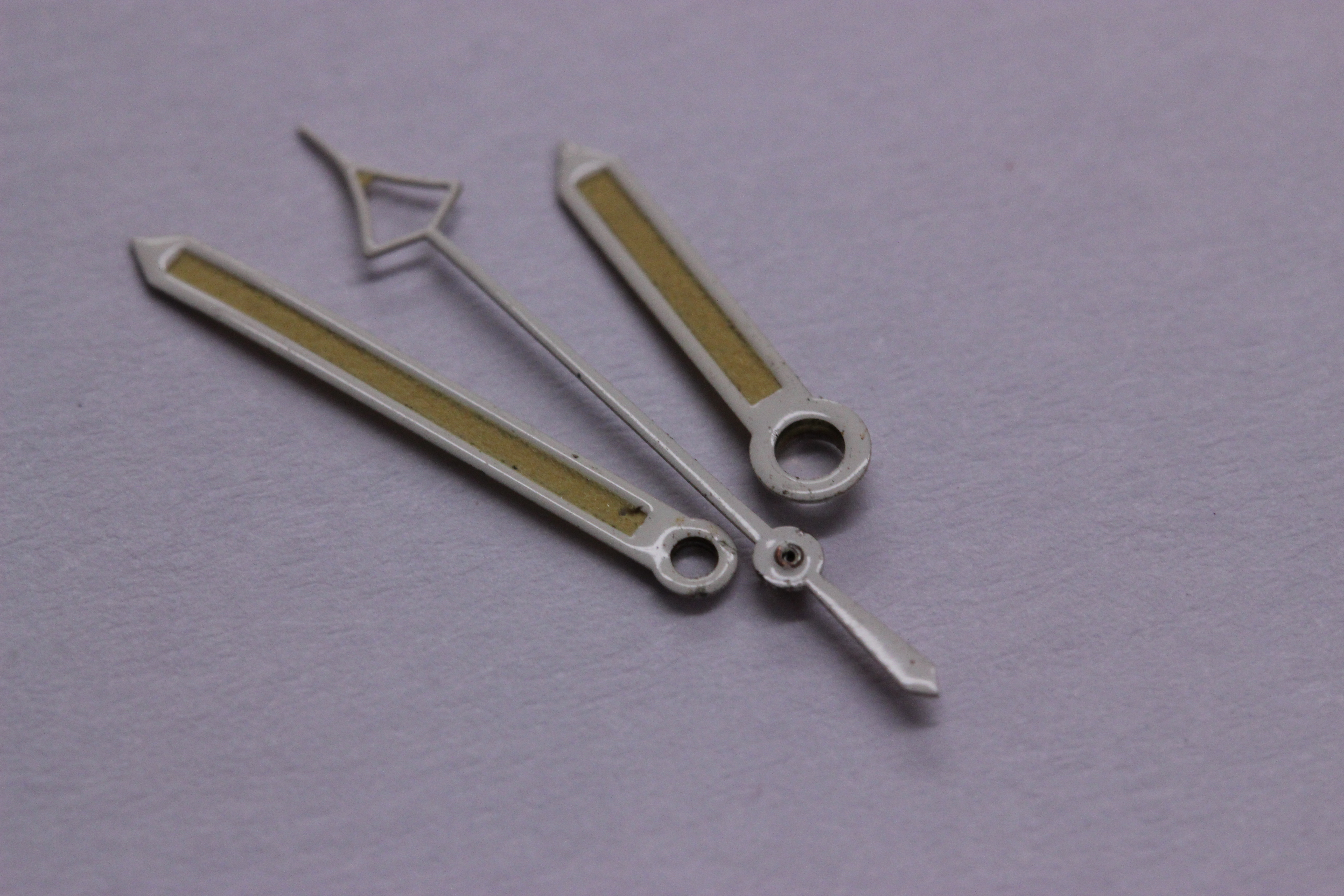

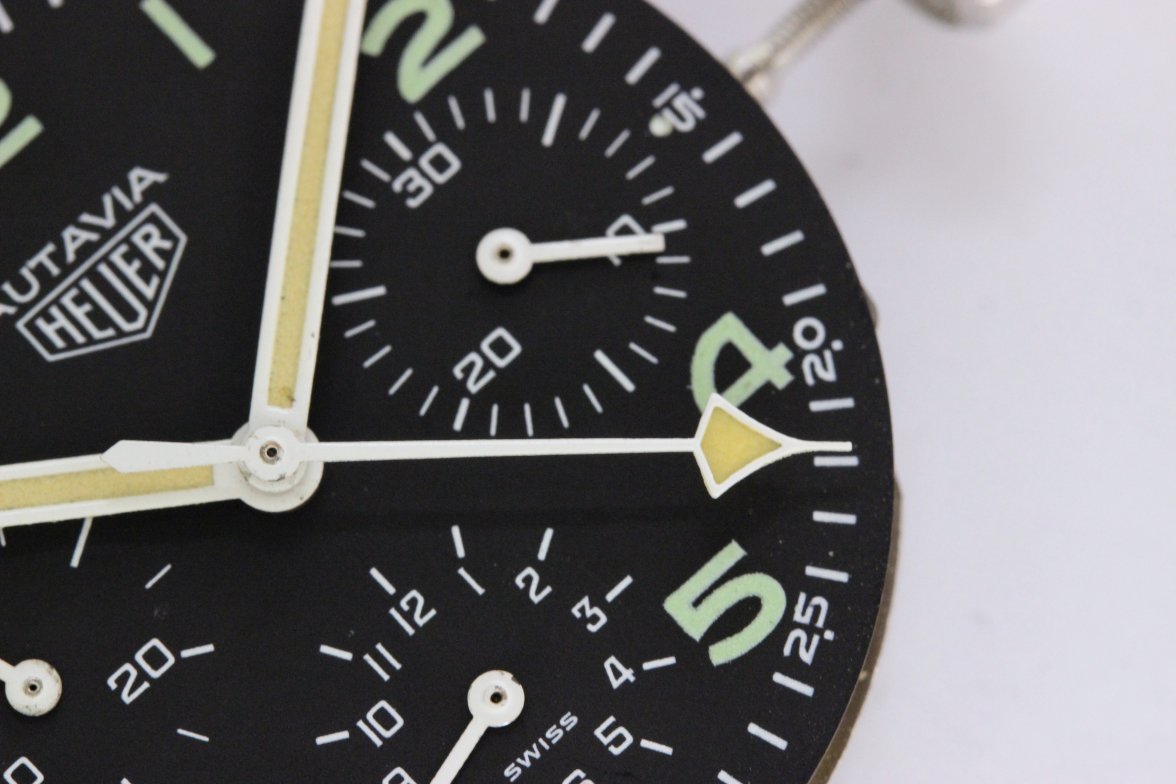

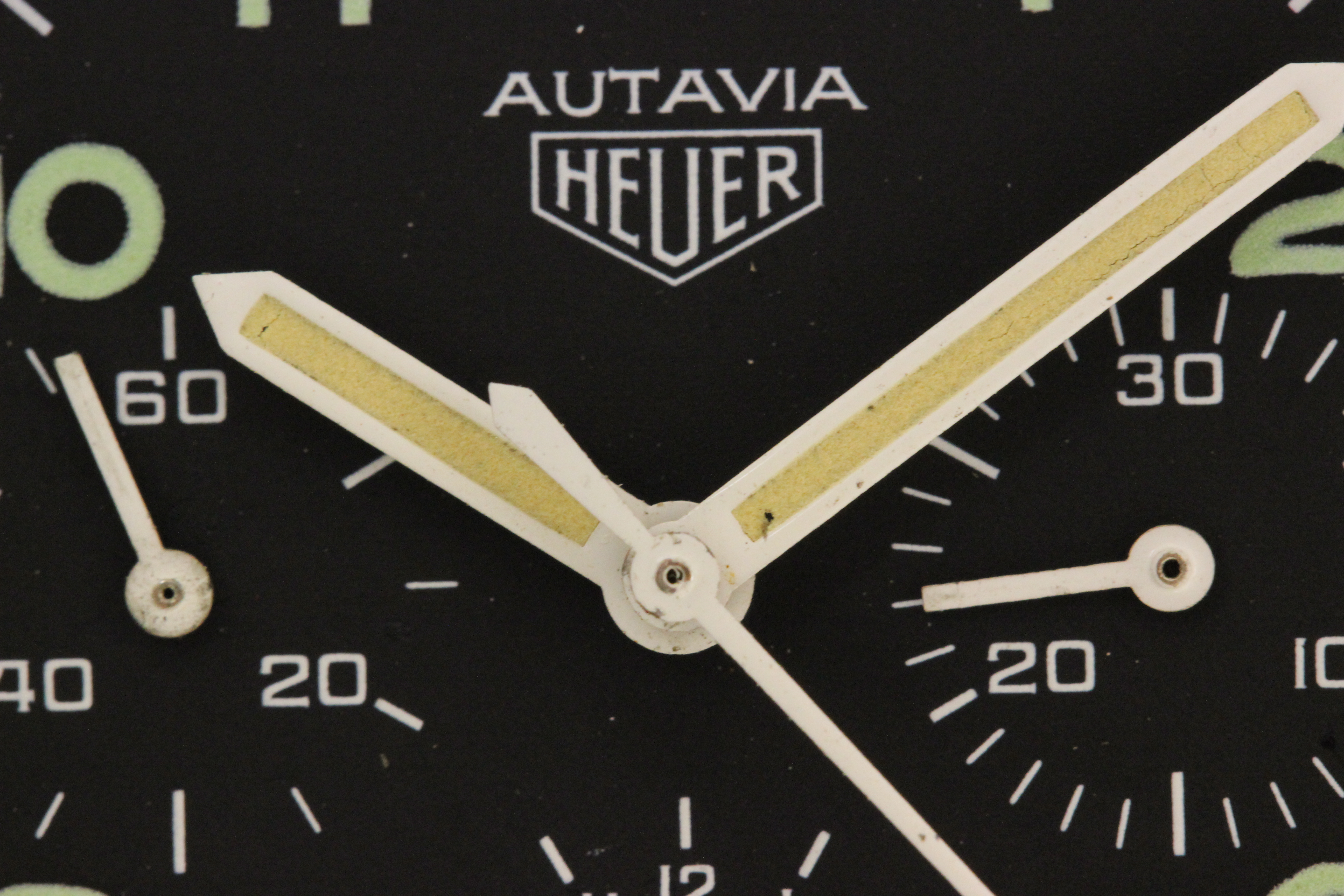

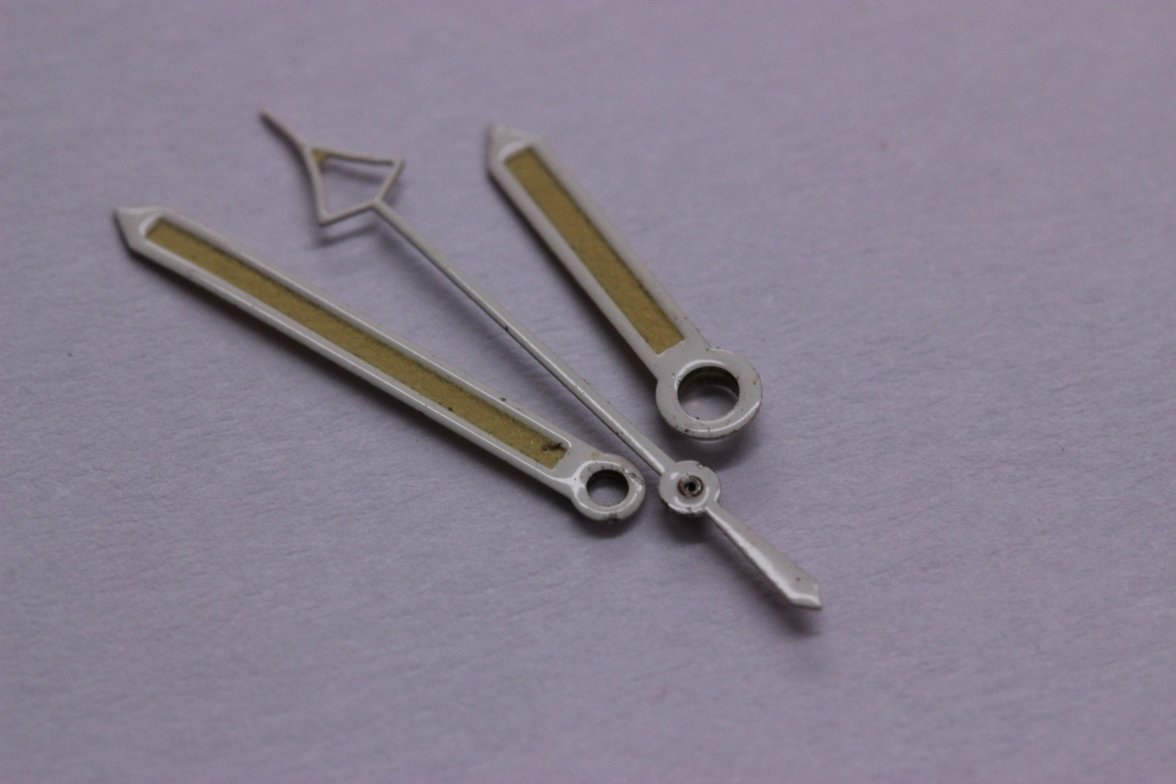

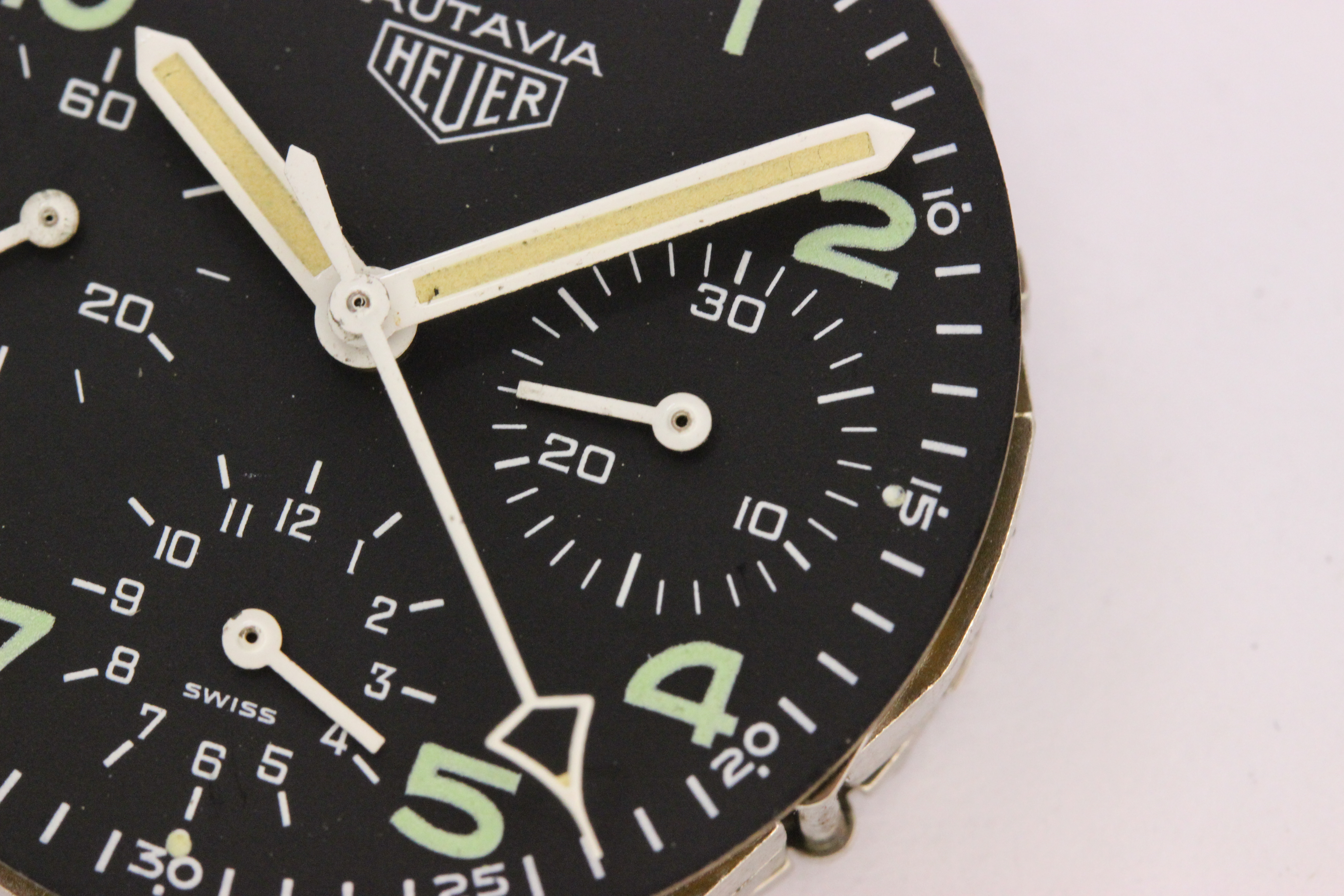

    The dial is perfect, no care needed. Subregister hands left untouched as well. Minute and hour hands also in good shape, my only concern was that the original tritium lume appeared to have become very fragile during all the years and at the base of the minute hand you can see there was missing a small bit of lume...very little but it was a bit disturbing for me...so I "fixated " the original lume with applying a coating on the back of both hands. So the original tritium lume is now much stronger again and the risk that it will fall out of the hands is as good as non-existing now. Only thing left to do was to relume the triangle from the central seconds chronograph hand as the original tritium was completely missing, I tried to match lume color as good as possible.

    And here are the pictures;

    IMG_9646.JPG IMG_9648.JPG IMG_9657.JPG IMG_9659.JPG IMG_9663.JPG IMG_9665.JPG IMG_9666.JPG IMG_9667.JPG IMG_9668.JPG IMG_9669.JPG IMG_1799.JPG IMG_1800.JPG IMG_1802.JPG IMG_1811.JPG IMG_1812.JPG IMG_1813.JPG IMG_1814.JPG IMG_1815.JPG IMG_1816.JPG IMG_1819.JPG IMG_1821.JPG

    Best regards from Belgium,
    abel

    www.HeuerTime.com

  20. step_hent

    step_hent Dec 14, 2014

    Posts
    16
    Likes
    3
    Wow, that is nothing short of stunning!
